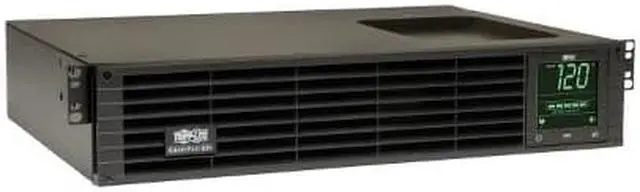

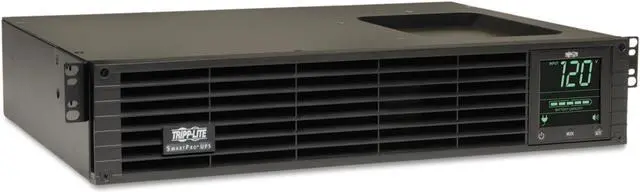

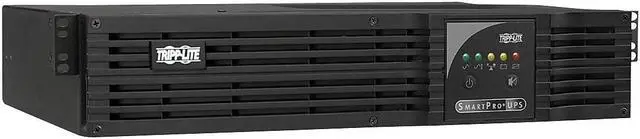

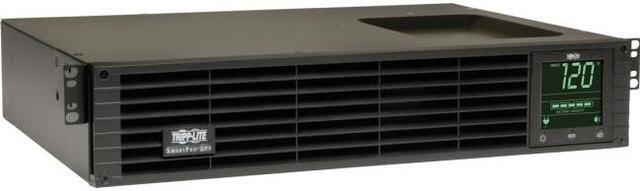

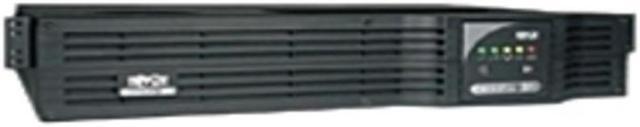

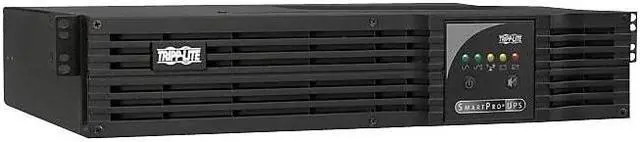

SmartPro Line-Interactive Rack/Tower Sine Wave UPS with Network Slot and LCD
This line-interactive UPS system protects your critical network systems from damage, downtime and data loss.
Pure sine wave output improves compatibility with sensitive equipment.
Battery backup powers critical systems during outages.
Advanced AVR corrects power sags (brownouts) and overvoltages.
Surge protection blocks harmful transient voltages.
LCD shows power conditions and permits easy access to settings.
Network card slot supports optional remote access and network management.
USB and serial ports connect to computers for power management.
3-year Back-up.
Key Specifications
:
Model: SMART1500RM2U
Load Capacity: 1.5 kVA ( 1.35 kW)
Nominal AC Input: 120V, 60 Hz
Nominal AC Output: 120V, 60 Hz

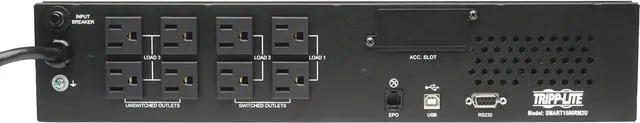

AC Outlets: 8 x 5-15R
Output Waveform (AC Mode): Sine Wave
Input Cord: 10 ft. (3 m) Cord with 5-15P Plug
Half-Load Runtime: 13 min. (675 W Load)
Power Protection and Battery Backup
Between severe weather, the aging electrical grid and unavoidable hazards lurking inside your own walls, your servers and network hardware are under constant attack from power problems. Prevent damage, downtime and data loss by installing this SmartPro UPS system. It conditions incoming AC power to protect your equipment, provides enough battery backup to outlast most outages and allows critical systems to shut down gracefully to prevent data loss and corruption during extended blackouts.
Common Applications
- Protect Servers and Network Hardware: Application Servers, Storage Servers, Database Servers, File Servers, Virtualization Servers, Proxy Servers, Web Servers, Media Servers and More.
- Protect Equipment with Active PFC Power Supplies: Active PFC power supplies found in many devices require pure sine wave power.
Pure Sine Wave Output
When operating from battery power, a UPS system generates the waveform of its AC output. Many UPS systems generate PWM sine wave power, an approximation of the pure sine wave power you receive from your electrical utility. Although PWM sine wave power is compatible with most equipment, pure sine wave power is required by some devices -- such as computers with active PFC power supplies -- and prevents others from overheating, malfunctioning or failing prematurely. This UPS system generates pure sine wave power for superior compatibility with active PFC power supplies and other sensitive equipment.
Expandable Battery Backup
- Half-Load Runtime: This UPS system will support a 50% load (675 W) for up to 13 minutes.
- Hot-Swappable Batteries: The internal batteries can be replaced without turning off the UPS system and disrupting the operation of connected equipment.
Advanced AVR and Surge/Noise Protection
In locations with chronic voltage problems, frequent switching to battery drains reserve power and shortens battery life. This UPS system has a feature called automatic voltage regulat
