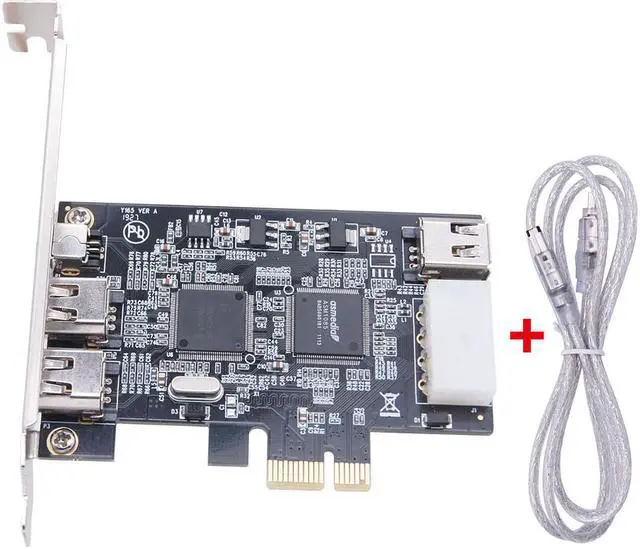

Weastlinks 4 Ports 1394A Expansion Card PCI-E 1X to IEEE 1394 DV Video Adapter 1x 4Pin 3x 6Pin 1394 Controller Firewire Card for Desktop PC

Feature:

1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel.
3x external 1394A ports (2 * 6 Pin + 1 * 4 Pin) and 1x internal 1394A port (1 * 6 Pin).
Compliant with PCI-Express revision 1.0a.
Compliant with IEEE 1394-1995, 1394a-2000 standard.
Compliant with IEEE 1394 OpenHCI Specifications V1.0 and V1.1.
Support 400/200/100Mbps data transfer rate.
Allows to connect more 1394a devices to your computer easily.
Attention: Don't Support hot-plugging. Before installation, Turn off the power and then plug in the power cord.
3 external FireWire(1394a) ports to support DV camcorders, hard disk, removable drives, scanner, digital cameras and other FireWire devices.

OS Support:
for Windows 2000/XP/Server 2003/Vista /Windows 7 /Windows 8 / Windows 10 32/64 bit.

Please note: The built-in 6-Pin IEEE 1394 female on metal bar can not work with the 9-Pin IEEE 1394 female on board simultaneously.

Specifications:
Material: Plastic + Metal
Color: Black (shown as pictures)
Size: 100×120×18mm/3.94×4.72×0.71in (Approx.)
Cable length: 80cm/31.50in (Approx.)

Connectors:
2* 6-Pin IEEE 1394 female(on metal bar); 1* 6-Pin IEEE 1394 female(on board)
1* 4-Pin IEEE 1394 female

Packing List:
1 x PCI-Express IEEE 1394A Firewire Card (No retail package)

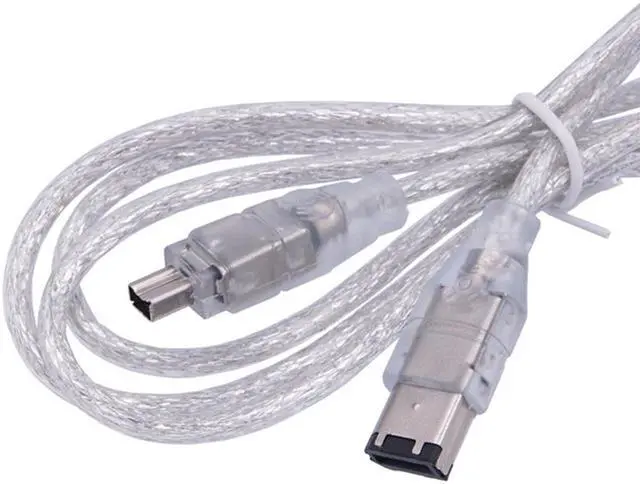

1 x 6Pin To 4Pin IEEE 1394 Cable
