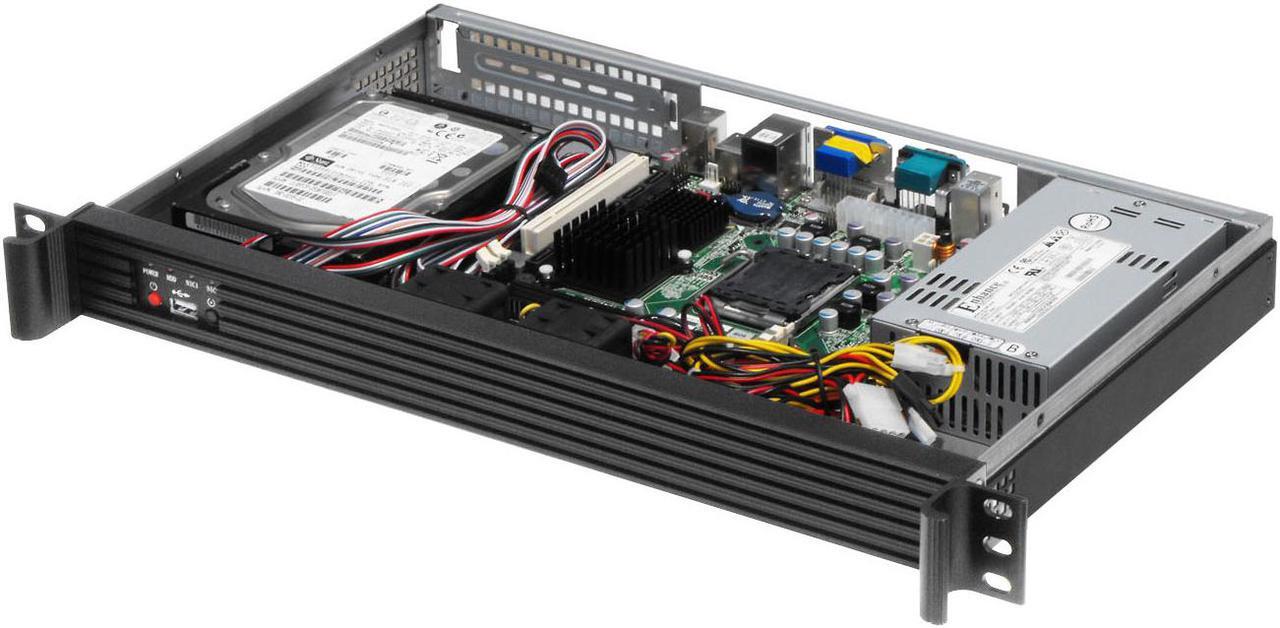

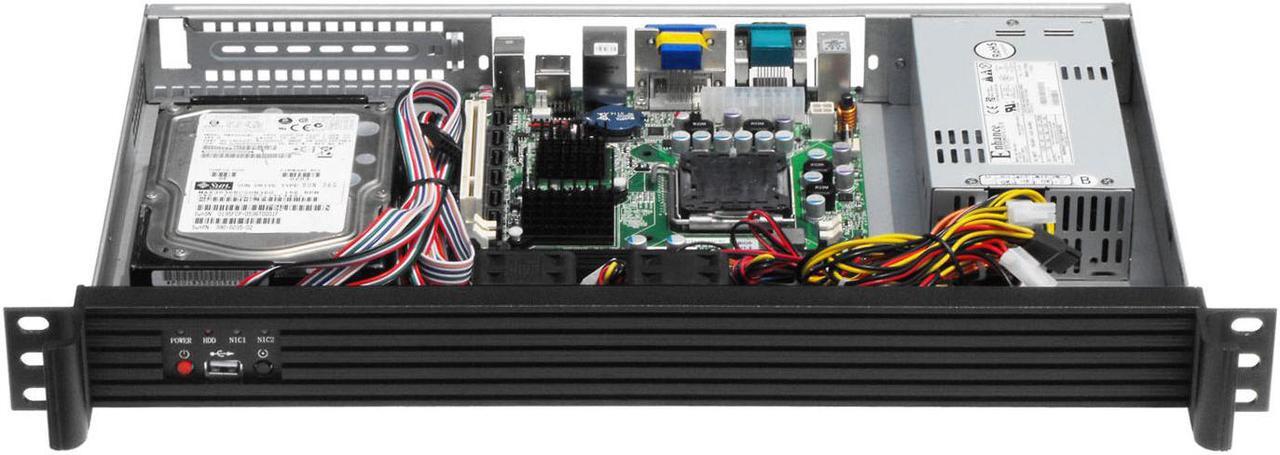

1U Server Chassis / Standard 19 "rack-mount server chassis / Aluminum ears and handles / Suitable for installation of 170mm * 170mm (Mini-ITX) motherboard / empty chassis
- 1. It is made of physique and environmentally friendly 1.0mm galvanized steel sheet, conforms to EMC design standards, and has excellent anti-electromagnetic interference and anti-radiation capabilities;
- 2. The chassis can be installed with Mini-ITX motherboard, standard 1U power supply, compatible with Flex power supply, and 2.5 "/3.5" HDD / SDD can be installed;
- 3, the chassis has a good heat dissipation system, the front panel uses a hidden heat dissipation design, two 4020 ball fans are standard, and it has a good heat dissipation channel;
- 4. The front panel of the chassis and the mounting ears are made of aluminum profiles, using anodizing technology, high-end, stylish and full of industrial beauty.
+
+
Overview
Specs
Reviews
Dimensions (mm): depth 250 × width 430 × height 44mm (9.84 × 16.92 × 1.73 inches), standard 19" rack-mount server chassis
Material: The chassis adopts 1.0mm SGCC, and the front panel, hanging ears and handle are made of aluminum profile
HDD bit: 1 standard 3.5" hard disk bit or 2 2.5" notebook hard disks
Fan position: Standard configuration with 2 4020 fans
Power supply: Standard 1U power supply
Indicator lights: Power LED*1, HDD LED*1, Power SW*1, Reset*1, NIC LED*2
Color: off-white/gray-black/black can be selected according to requirements
Suitable for motherboard: Install 170mm*170mm (Mini-ITX) motherboard
Application areas: cloud computing, cloud rendering, security monitoring and other application areas
Material: The chassis adopts 1.0mm SGCC, and the front panel, hanging ears and handle are made of aluminum profile
HDD bit: 1 standard 3.5" hard disk bit or 2 2.5" notebook hard disks
Fan position: Standard configuration with 2 4020 fans
Power supply: Standard 1U power supply
Indicator lights: Power LED*1, HDD LED*1, Power SW*1, Reset*1, NIC LED*2
Color: off-white/gray-black/black can be selected according to requirements
Suitable for motherboard: Install 170mm*170mm (Mini-ITX) motherboard
Application areas: cloud computing, cloud rendering, security monitoring and other application areas
