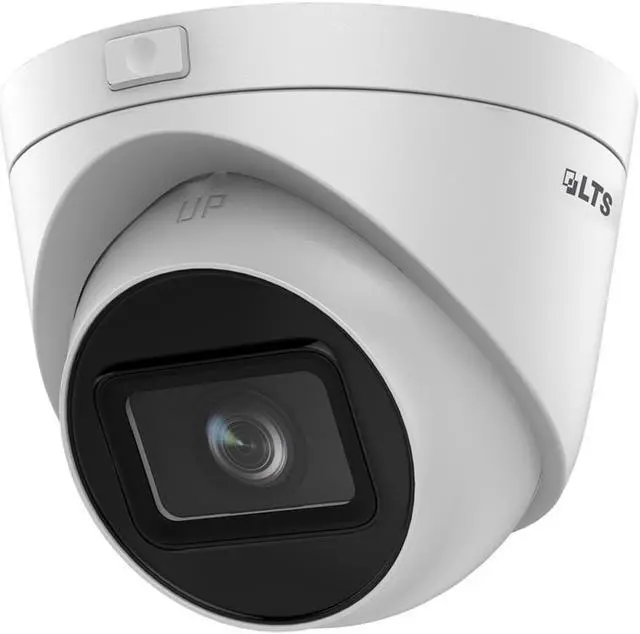

Camera Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2560 × 1440 Min.
Illumination Color: 0.005 Lux @(F 1.6, AGC ON), B/W: 0 Lux with IR Shutter Speed 1/3 s to 1/100, 000 s Wide Dynamic Range 120 dB Day & Night IR Cut Filter Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° Lens Lens Type Varifocal Lens, motoried lens, 2.8 to 12 mm Focal Length & FOV 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35° Lens Mount Ø 14 Iris Type Fixed Aperture F 1.6 Illuminator IR Wavelength 850 nm IR Range Up to 98ft (30 m) Video Main Stream 50
Hz: 20 fps (2560 × 1440); 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60
Hz: 20 fps (2560 × 1440); 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) Sub-Stream 50
Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60
Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression
Main stream: H. 265+/H. 265/H. 264+/H.
264 Sub-stream: H. 265/H. 264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H. 264 Type Baseline Profile/Main Profile/High Profile H. 265 Type Main Profile Region of Interest (ROI) 1 fixed region for main stream Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View Up to 6 channels API Open Network Video Interface, ISAPI User/Host Up to 32 users.
3 levels: administrator, operator and user Web Browser Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0 +, Firefox 52.0 + Image Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch Auto, Schedule, Day, Night Image Enhancement BLC, 3D DNR Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB Reset Key Yes Event Basic Event Motion detection, video tampering alarm, exception Linkage Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture General Power 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug
PoE: 802.3 af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W Camera Material Metal Camera Dimension Ø 129.4 mm × 116.4 mm (Ø 5.1" × 4.6" ) Package Dimension 170 mm × 170 mm × 150 mm ( 6.7" × 6.7" × 5.9" ) Camera Weight Approx. 560 g ( 1.2 lb. ) With Package Weight Approx. 850 g ( 1.9 lb. ) Storage Conditions -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) Language English General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval EMC FCC SDoC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3- 2: 2014, EN 61000-3- 3: 2013, EN 50130- 4: 2011 +A 1: 2014 ) RCM (AS/NZS CISPR 32: 2015 )
IC VoC (ICES-003: Issue 6, 2016) KC (KN 32: 2015, KN 35: 2015 ) Safety UL (UL 60950-1) CB (IEC 60950- 1:2005 + Am 1:2009 + Am 2:2013, IEC 62368- 1:2014 ) CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013, IEC 62368- 1:2014 )
BIS (IS 13252 (Part 1): 2010+A 1:2013 +A 2:2015 ) Environment CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) Electrical Safety Protection IP67 (IEC 60529-2013)
