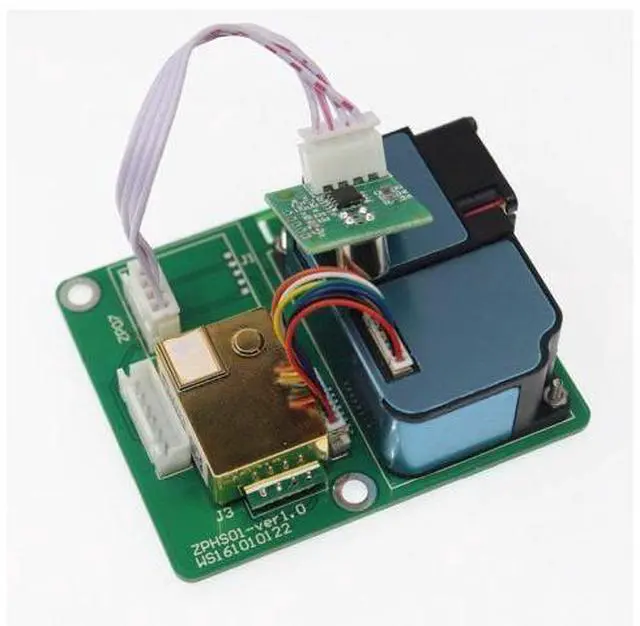

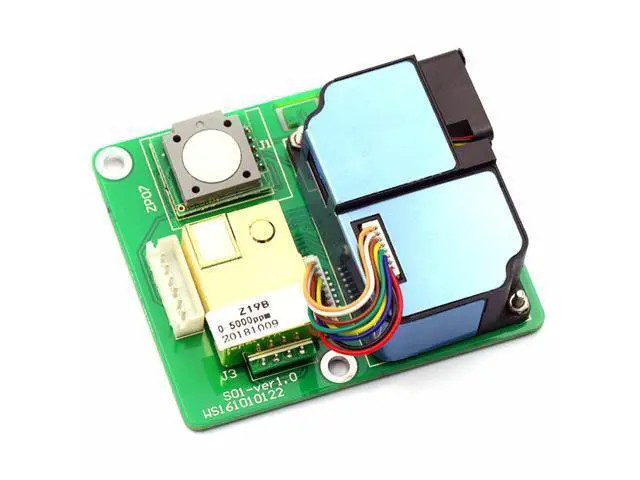

ZPHS01 All-in-one Gas Detection Module Carbon Dioxide Dust PM2.5 Sensor PM2.5 + CO2 + CH2O + Temperature + Humidity Detector

Note: This is PM 2.5 + CO2 + CH2O + Temperature + Humidity PM 2.5 + CO2 + VOC + Temperature +
Humidity ID: 1680868
Overview: This is an all-in-one module integrating CH2O sensor, laser dust sensor, infrared carbon dioxide sensor and temperature and humidity sensor. The communication interface is serial port (TTL), baud
rate: 9600
data bits: 8, stop
bit: 1, parity
bit: none.

Specifications

: Product number ZPHS01 Detection category Carbon dioxide, PM 2.5, formaldehyde, temperature, humidity Interfering gas Alcohol, carbon monoxide, etc. Operating Voltage 5V DC Average current 200mA Interface level 3V (compatible with 3.3V ) output signal UARTIIC Preheat time 5min CO2 range 0-5000ppm pm 2.5 range 0-1000g/m3 Formaldehyde range 0-2000g/m3 Temperature range -10~50 Temperature accuracy ± 0.5 Humidity range 0~100%RH Humidity accuracy ±3%
Application: Gas Detector Air Purifier Air Conditioner Fresh Air Ventilation System Air Quality Monitoring Equipment Smart Home
Package Included: 1 x ZPHS01 All-in-one Gas Detection Module
