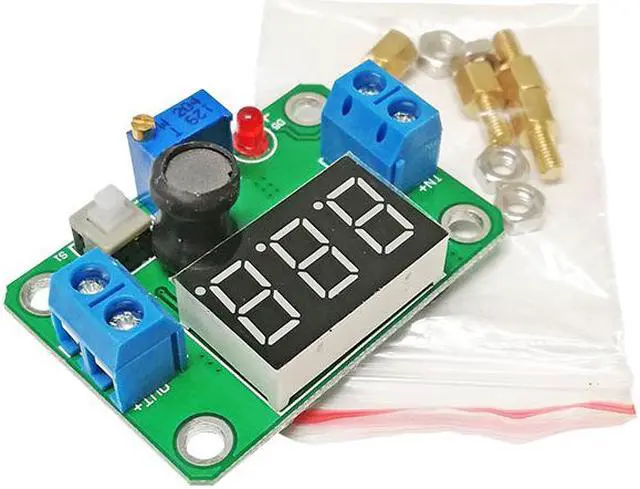

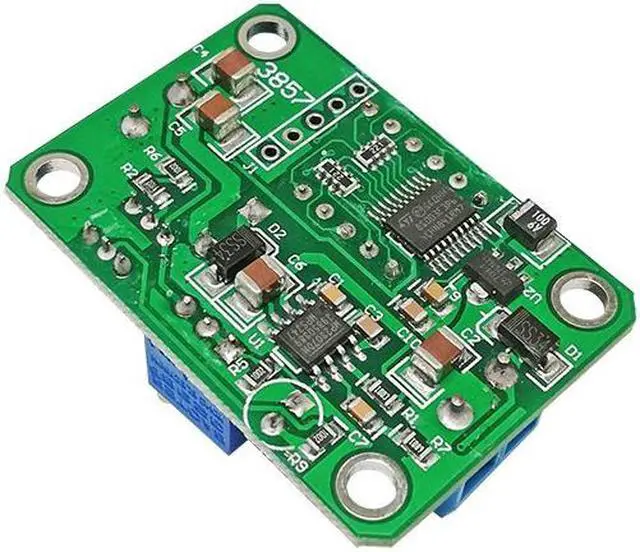

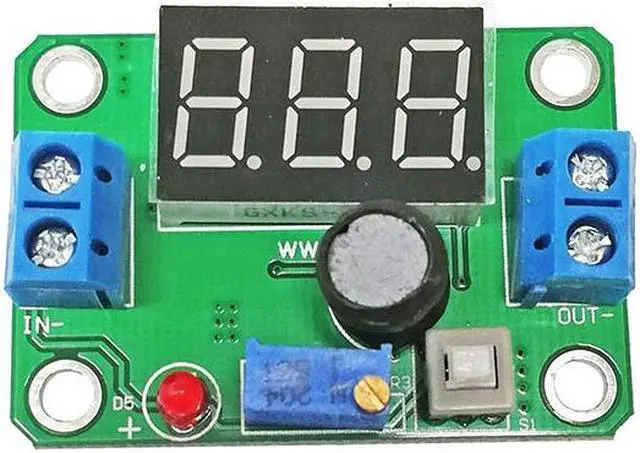

DC-DC 4.5-24V synchronous rectification power module /w Voltmeter Red Display
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item Description
Features:
Input voltage range :4.5-24VOutput voltage range: 0.93V-20VOutput Current: 2A Continuous Output Power: 20W (Max)Ripple frequency: about 330Khz peak to peak ripple: 30mV Size: 44mm * 30mm * 20mm Voltage indication: Input 4.5-24V, output 0.9-20V Switch: is used to switch digital voltage display Indicator: When lit digital display input voltage, output voltage display off Quiescent Current: Typical 25MAIn+: Input positiveIn-: Input negativeOut+: Output positiveOut-:Output negative
Package Include:
1pcs DC-DC Efficient synchronous rectification power module/w Voltmeter Red Display 4.5-24V
Features:
Input voltage range :4.5-24VOutput voltage range: 0.93V-20VOutput Current: 2A Continuous Output Power: 20W (Max)Ripple frequency: about 330Khz peak to peak ripple: 30mV Size: 44mm * 30mm * 20mm Voltage indication: Input 4.5-24V, output 0.9-20V Switch: is used to switch digital voltage display Indicator: When lit digital display input voltage, output voltage display off Quiescent Current: Typical 25MAIn+: Input positiveIn-: Input negativeOut+: Output positiveOut-:Output negative
Package Include:
1pcs DC-DC Efficient synchronous rectification power module/w Voltmeter Red Display 4.5-24V
