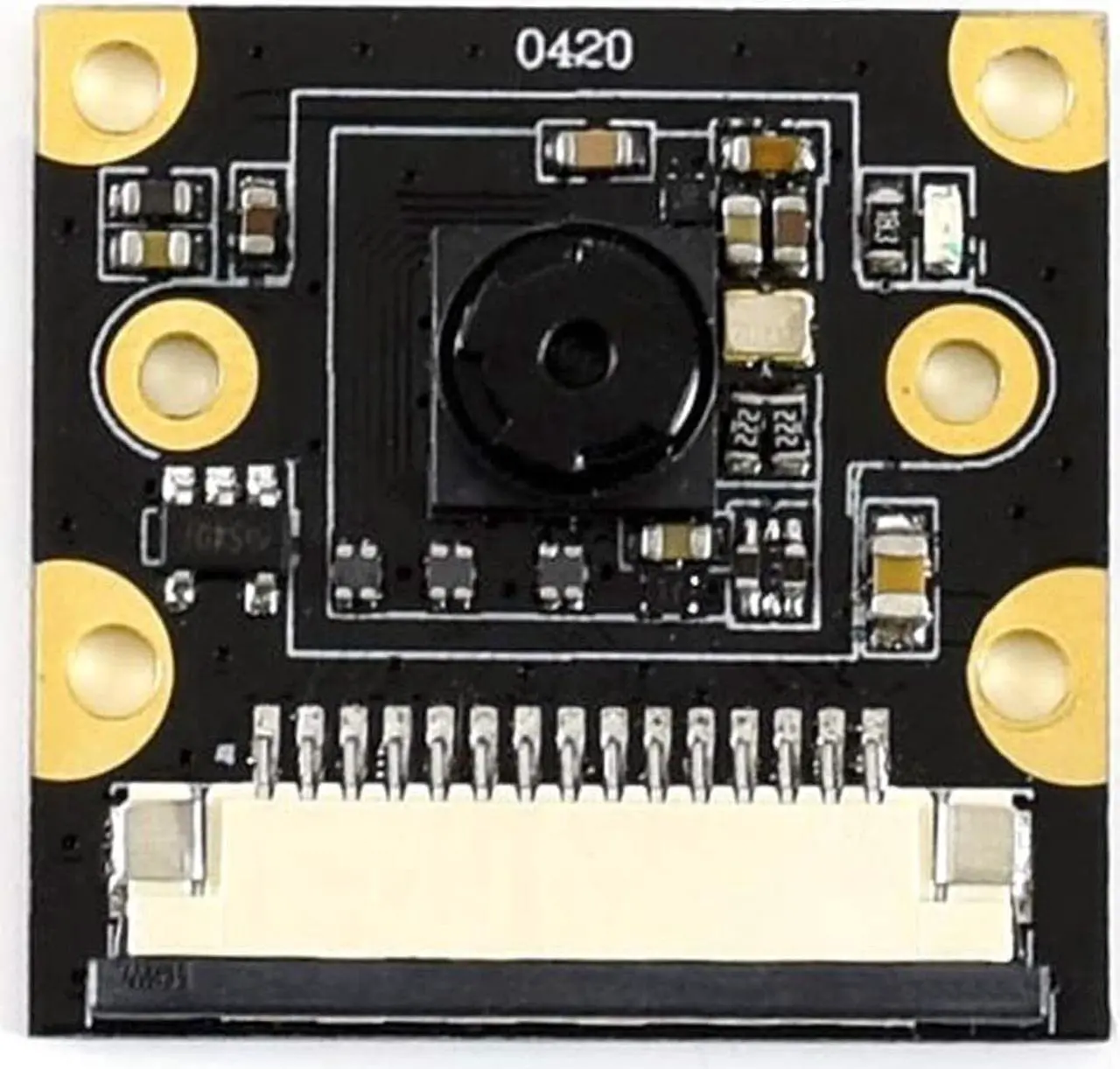

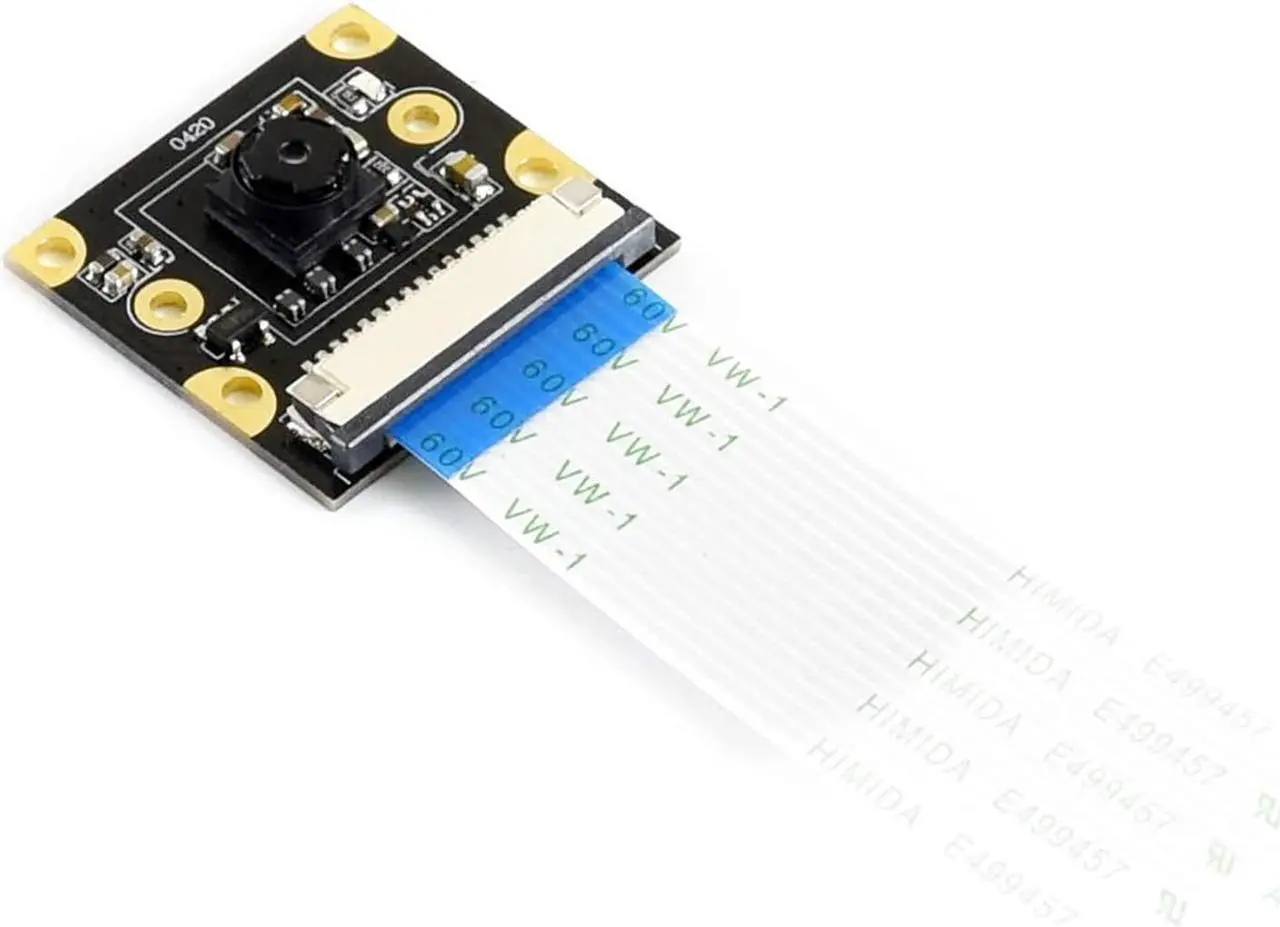

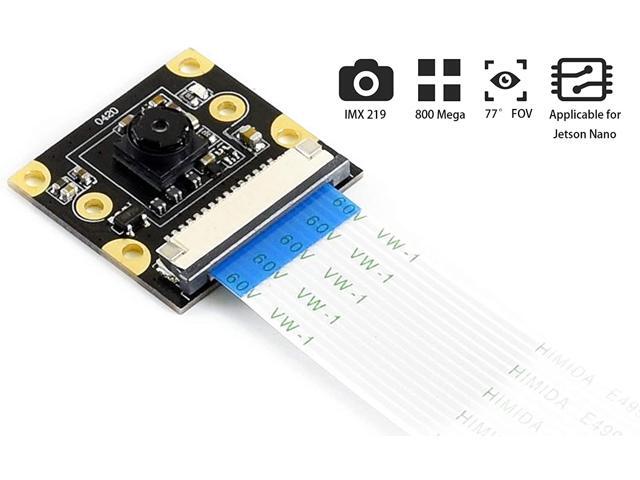

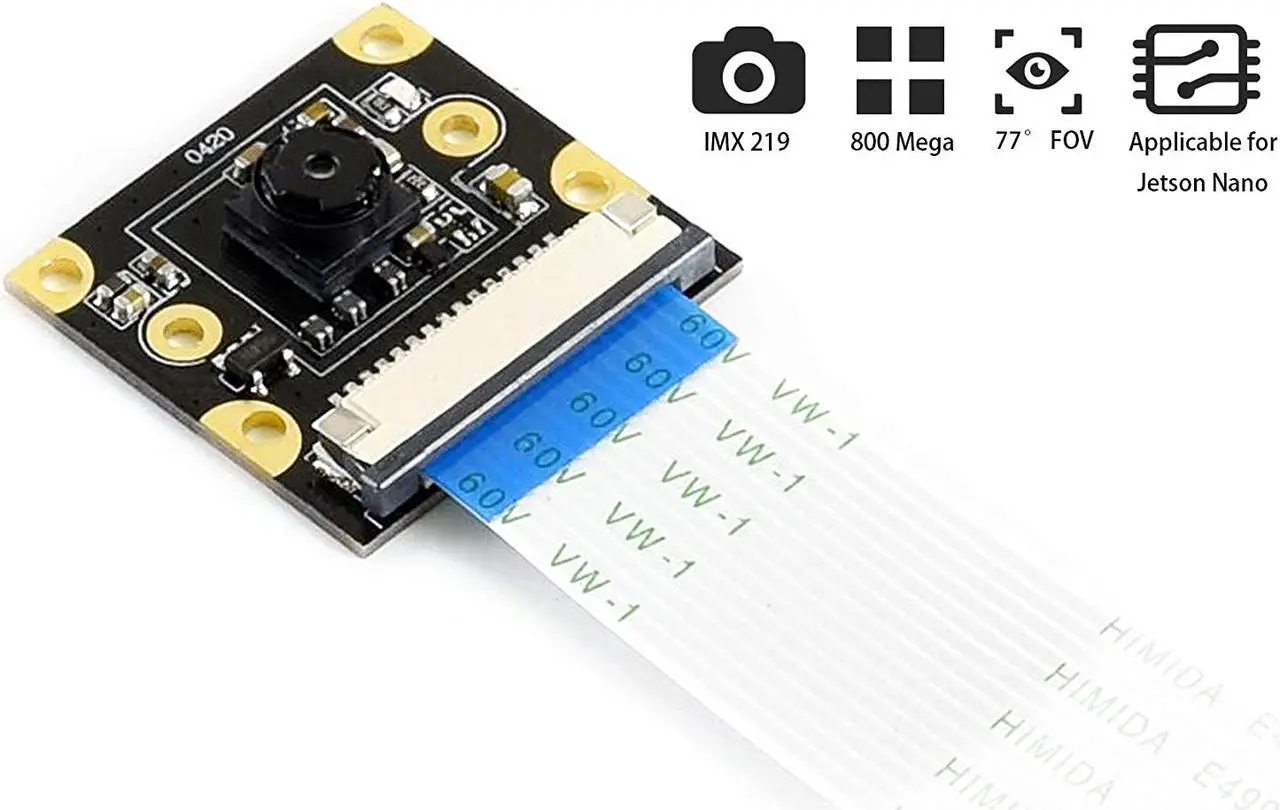

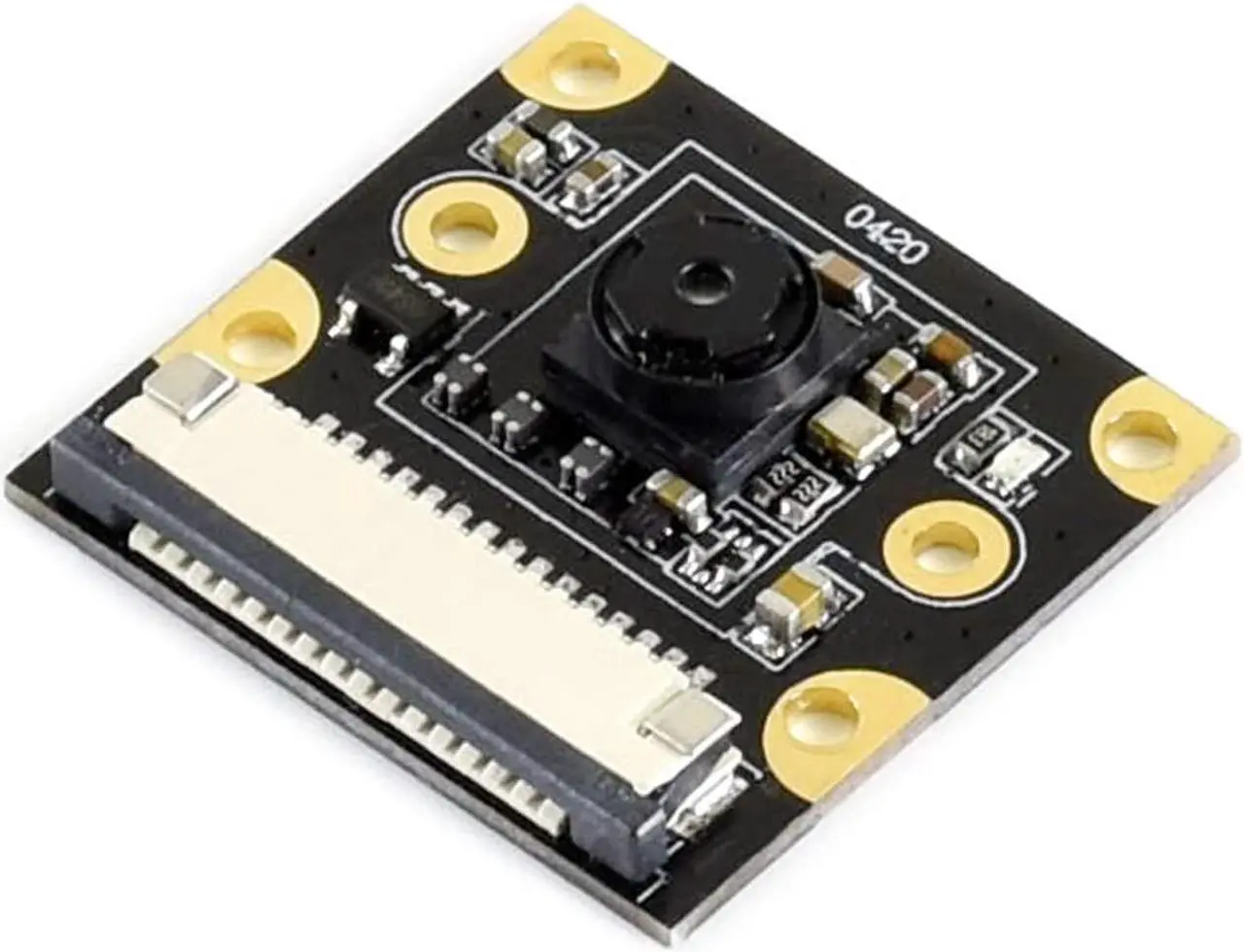

8MP IMX219-77 Camera Compatible with NVIDIA Jetson Nano and Raspberry Pi Compute Module 3/3+, 8 Megapixels Camera Module IMX219 Sensor 3280×2464 Resolution 77 Degree Angle of View
- IMX219-77 Camera. 8 Megapixels. Sensor: Sony IMX219. Resolution: 3280 × 2464. 77° FOV
- Lens specifications: CMOS size: 1/4inch. Aperture (F): 2.0. Focal Length: 2.96mm. Angle of View (diagonal): 77 degree. Distortion: < 1%. Lens dimensions: 6.5mm × 6.5mm
- Lens specifications: CMOS size: 1/4inch. Aperture (F): 2.0. Focal Length: 2.96mm. Angle of View (diagonal): 77 degree. Distortion: < 1%. Lens dimensions: 6.5mm × 6.5mm.
- Combined with the Jetson Nano AI computer, this camera suits for AI projects such as: Face recognition. Road mark detection. License plate recognition.
- Supports NVIDIA Jetson Nano Developer Kit,Compute Module 3/3+ (Note: Jetson Nano Developer Kit ,and CM 3/3+ are NOT included)
+
+
Overview
Specs
Reviews
8MP IMX219-77 Camera Features Supports NVIDIA Jetson Nano Developer Kit, Compute Module 3/3+, (Note: Jetson Nano Developer Kit, and CM 3/3+ are NOT included) 8
Megapixels Sensor: Sony
IMX219 Resolution: 3280 × 2464
Lens specifications: CMOS
size: 1/4inch
Aperture (F): 2.0
Focal Length: 2.96 mm Angle of
View (diagonal): 77 degree
Distortion:
< 1%

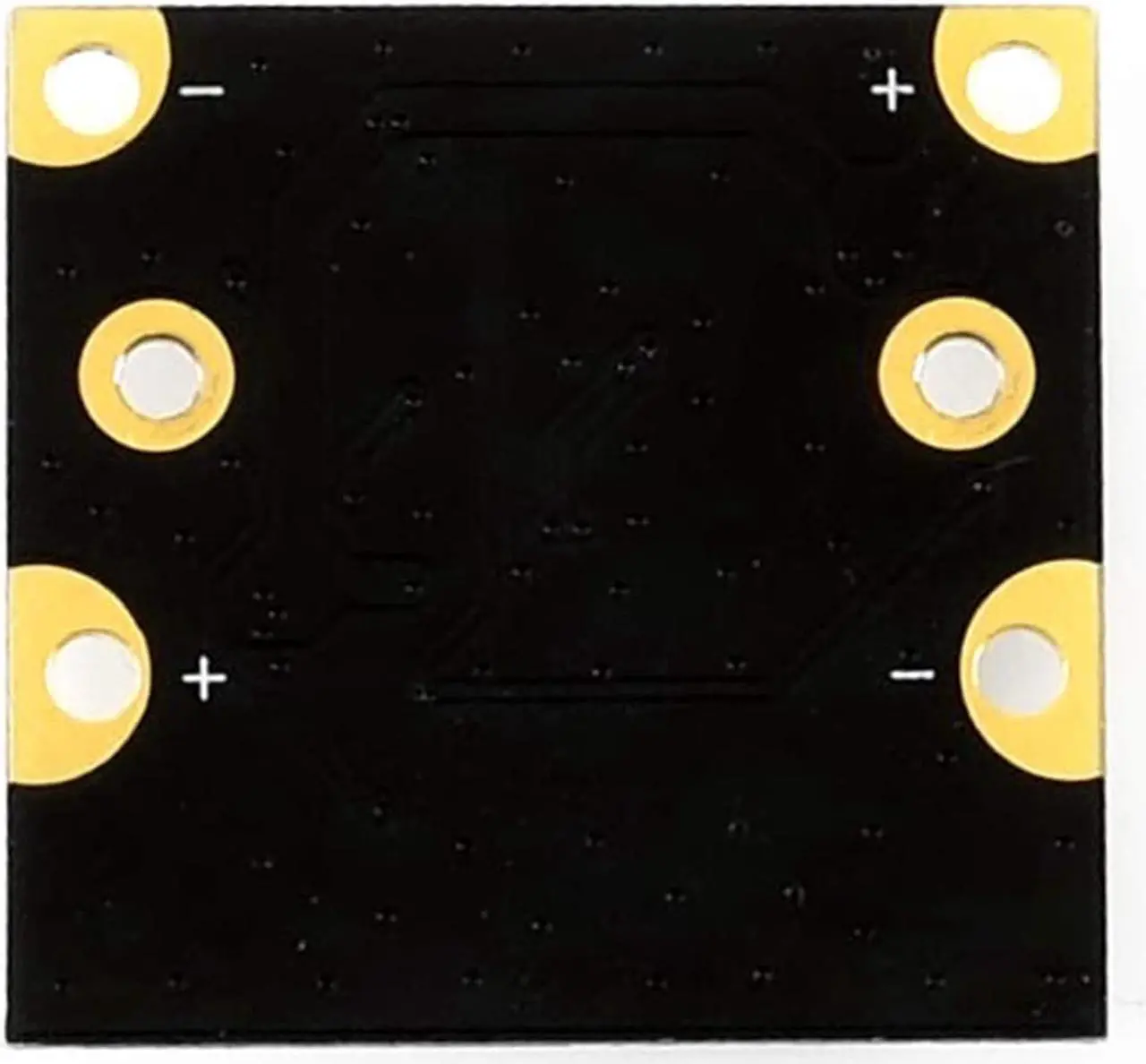

Lens dimensions: 6.5 mm × 6.5 mm 4 screw holes Used for attachment Provides 3.3V power output

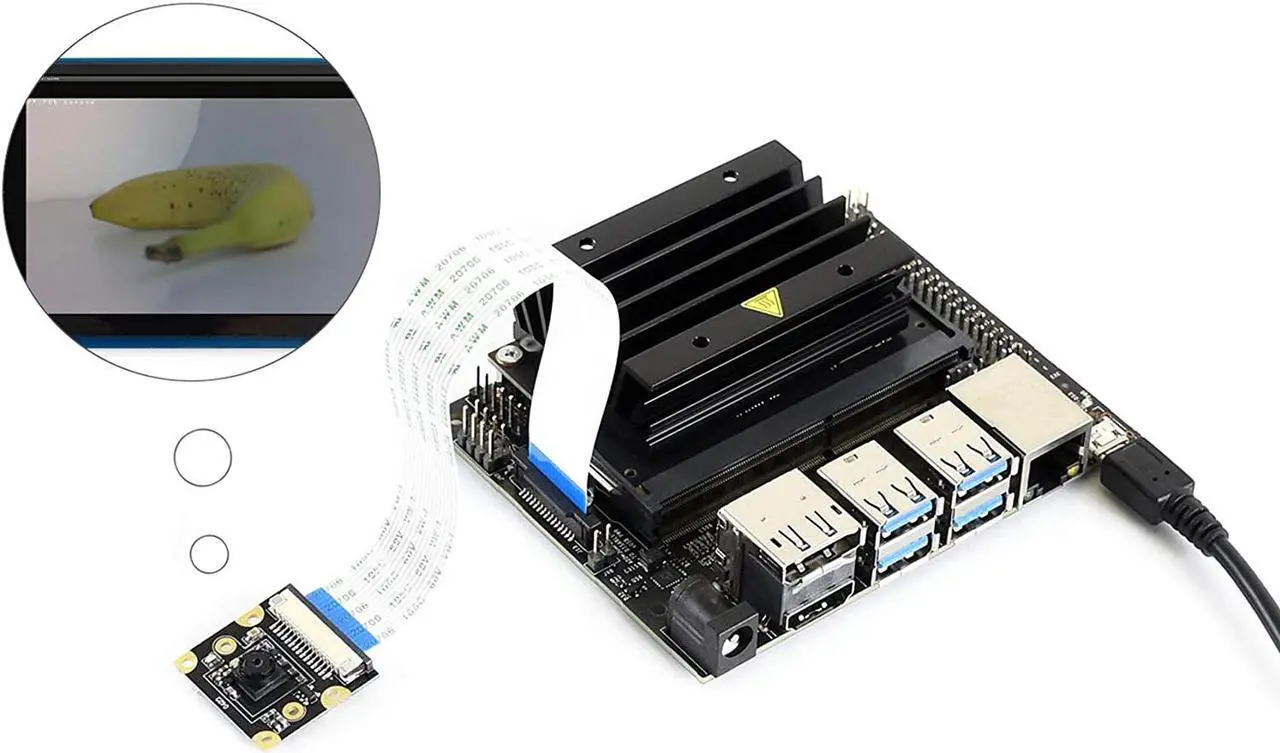

Dimension: 25mm × 24mm Applications Combined with the Jetson Nano AI computer, this camera suits for
AI projects such as: Face recognition Road mark detection License plate recognition

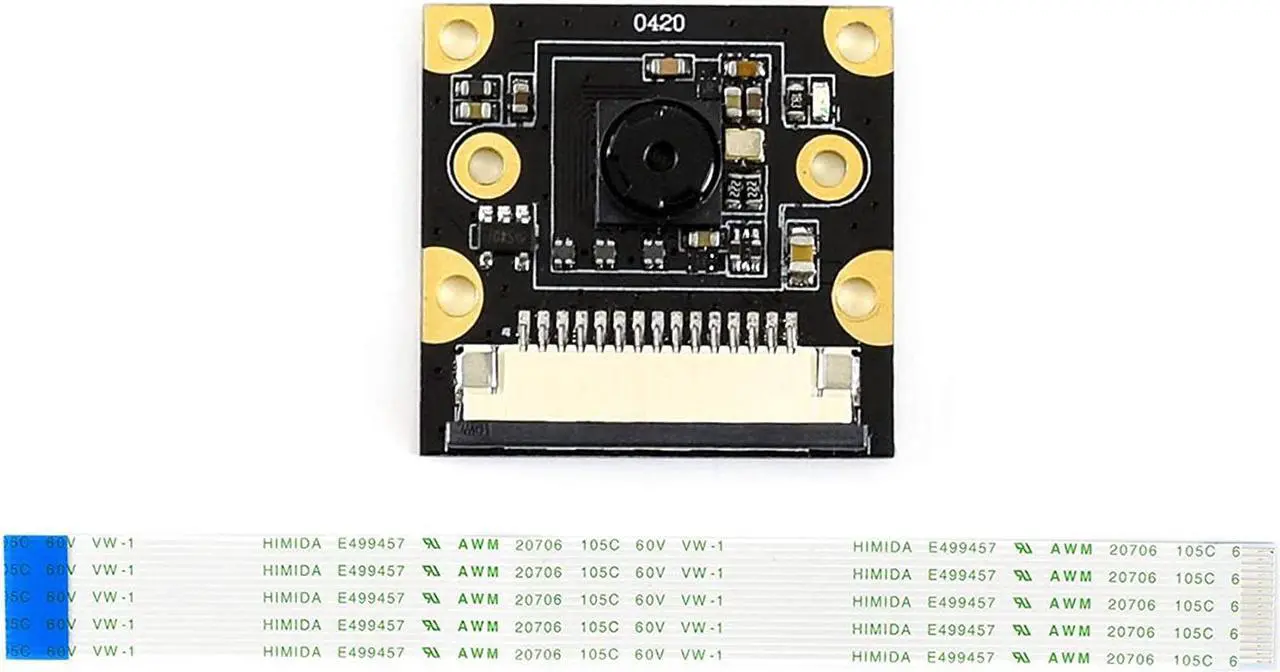

Development Resources Wiki: www. waveshare. com/wiki/IMX219-77_Camera PACKAGE CONTENT 1. IMX219-77 Camera x1 2.15 -pin FFC (opposite sides contact) x1
Note: 1. The included FFC is 16cm, if you need a longer cable, please
consider: Raspberry Pi Camera Cable FFC 60cm 2. Technical Service is provided, please send us Amazon message if you have any questions, thanks
Megapixels Sensor: Sony
IMX219 Resolution: 3280 × 2464
Lens specifications: CMOS
size: 1/4inch
Aperture (F): 2.0
Focal Length: 2.96 mm Angle of
View (diagonal): 77 degree
Distortion:
< 1%
Lens dimensions: 6.5 mm × 6.5 mm 4 screw holes Used for attachment Provides 3.3V power output
Dimension: 25mm × 24mm Applications Combined with the Jetson Nano AI computer, this camera suits for
AI projects such as: Face recognition Road mark detection License plate recognition
Development Resources Wiki: www. waveshare. com/wiki/IMX219-77_Camera PACKAGE CONTENT 1. IMX219-77 Camera x1 2.15 -pin FFC (opposite sides contact) x1
Note: 1. The included FFC is 16cm, if you need a longer cable, please
consider: Raspberry Pi Camera Cable FFC 60cm 2. Technical Service is provided, please send us Amazon message if you have any questions, thanks
