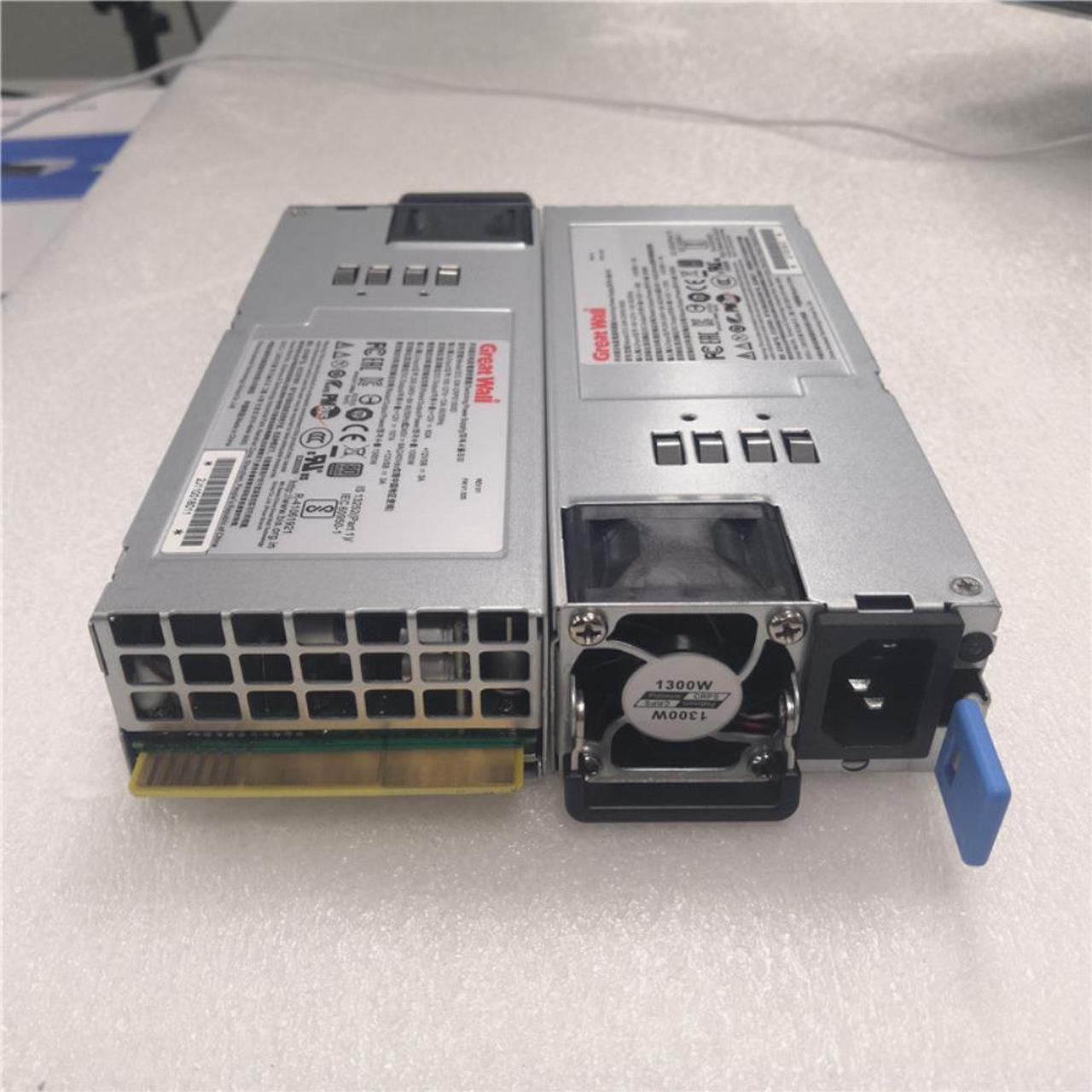

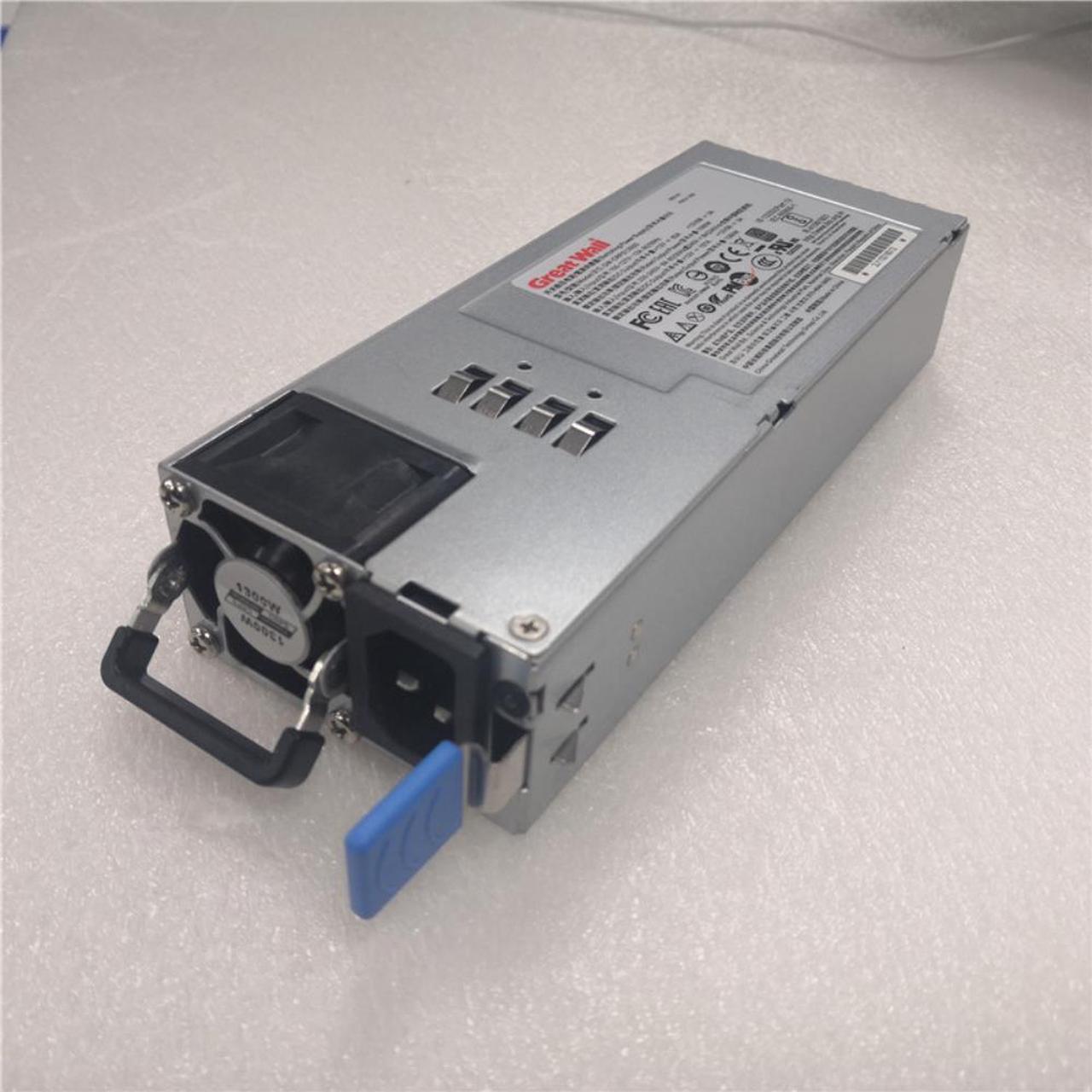

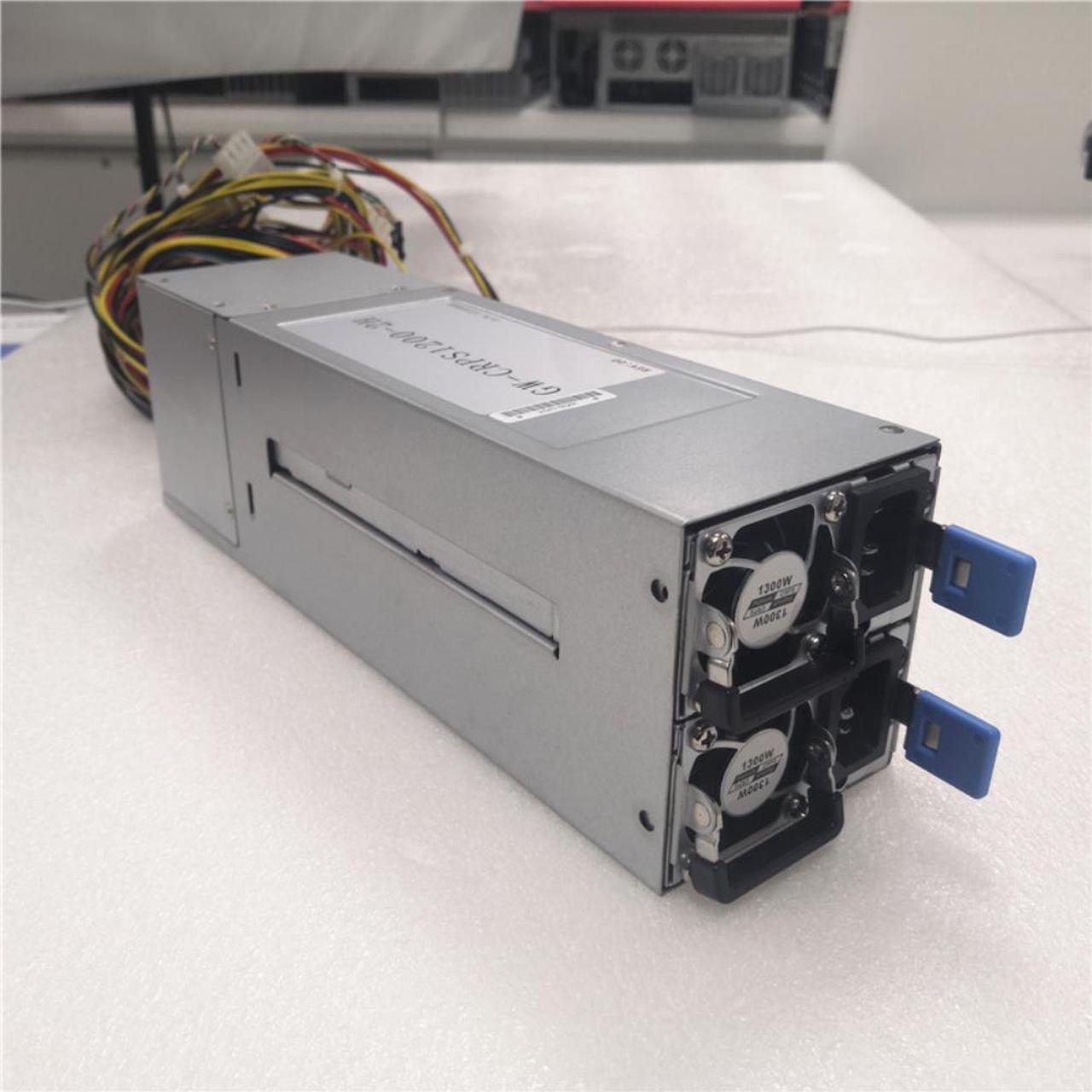

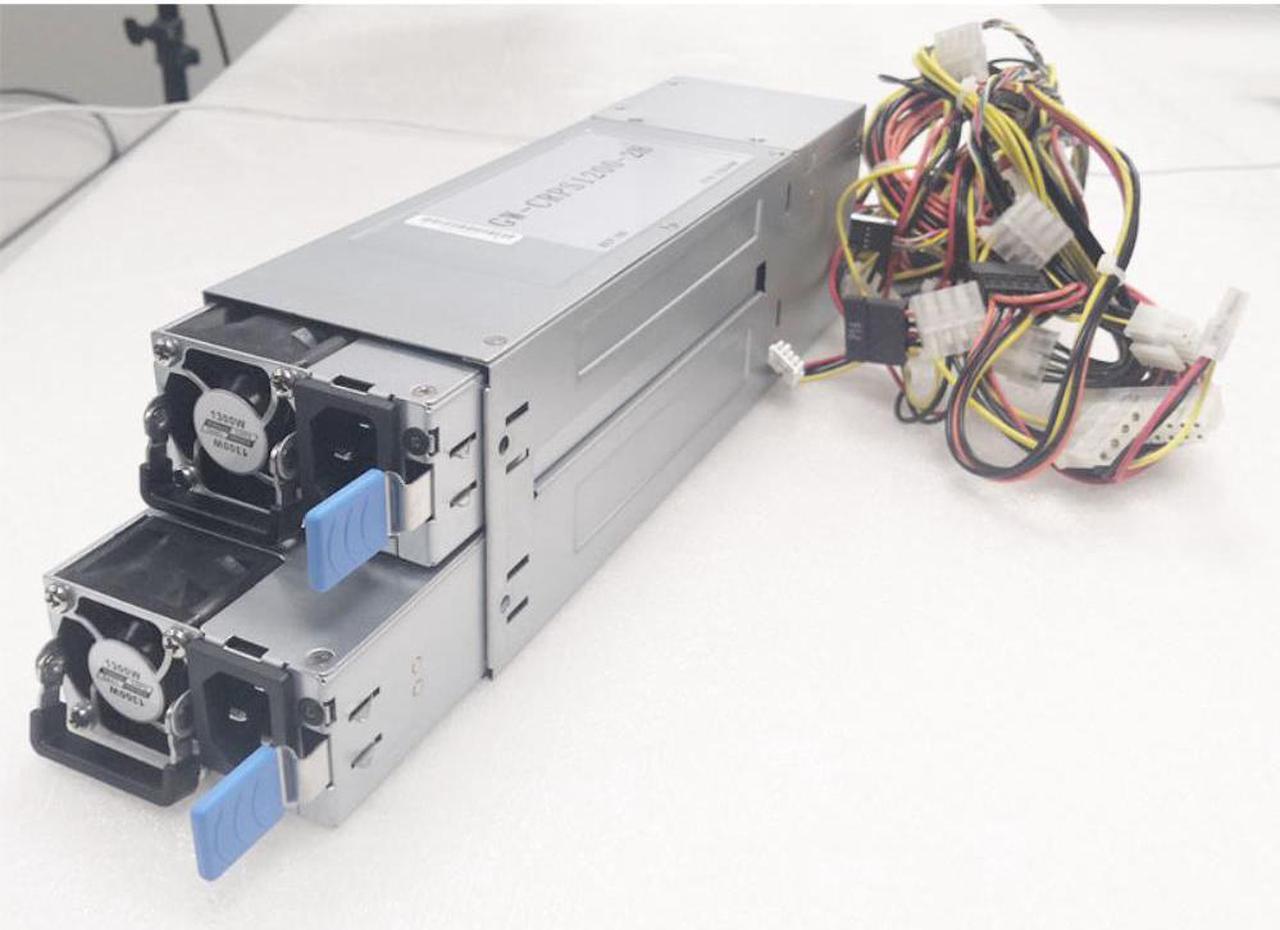

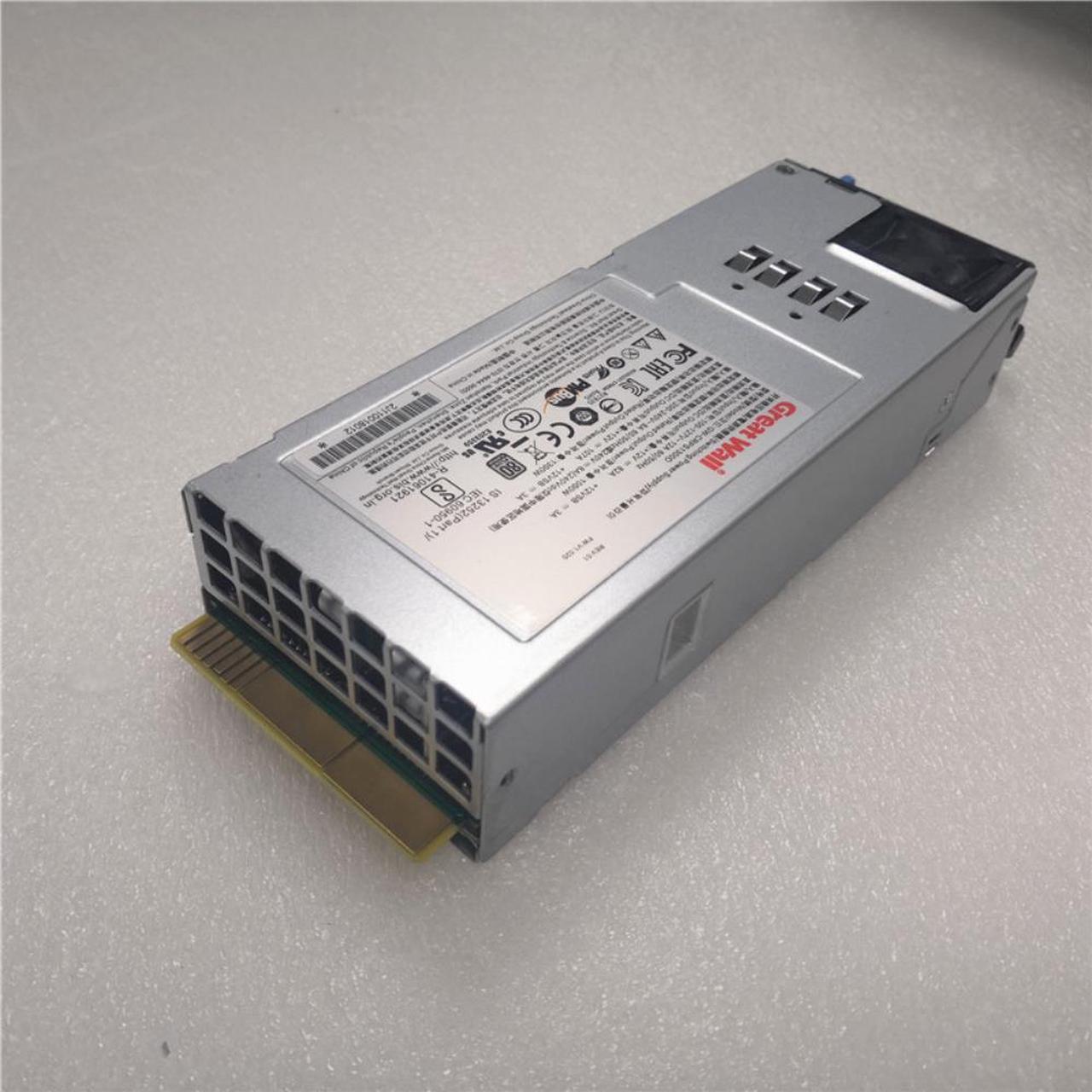

2U rack-mounted redundant power supply 1300W Hot swap server module PSU GW-CRPS1300 for TOPLOONG 2U 3U 4U storage chassis

80 PLUS Certification:Other Certification
Origin:CN(Origin)
Rating Power:> 1000w
D-type Bus Number:10
Output:+5V +12V -12V +5VSB
Model Number:GW-CRPS1300D
Package:Yes
Application:Server
Graphics Card 12V Pin Number:0
Input Voltage:100-240V
Interface Type:24Pin
PFC Type:Active
CPU Power Connector:8 pin x2
Modular:Full Modular
Number of SATA Ports:2

high qulity 2U rack-mounted redundant power supply 1300W Hot
swap
server module PSU GW-CRPS1300 for 2U 3U 4U  storage chassis
Features:
Rated power 1300W, through 3C, ROHS and other international certification, with active power factor correction
Model:GW-CRPS1300D
Device Type: PSU
Wattage: 1300W
Input: 100-240v
Connections: 24PIN *1

2*4
PIN +2*4PIN(CPU)

SATA*2
                       IDE*10

Power alarm*1

Size : L225*W85*H77MM
fan: 40MM
PFC:
Active PFC
Gross weight: 3.5kg
packing:  4PCS per box
Application: industrial computer etc.
NOTICE:The mounting dimensions of redundant power supply is not suitable for all cases,we mainly used to match TOPLOONG hot- swap chassises,but other chassises do not necessarily work,so please contact customer service to confirm,tks!
Power alarm
