Quality Certification:ce
Chipset:Intel H81
Socket Type:LGA 1150
Storage Interface Type:SATA 2
Onboard LAN:1x RJ45
Package:No
Model Number:H81M-A
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Audio & Video
Number of PCI:0
PCI - E standards:PCI - E 2.0
Origin:CN(Origin)
Number of PCIe x 16:1
Memory channel:Double
Number of PCIe x 1:2
Certification:CE
Form Factor:Micro-ATX

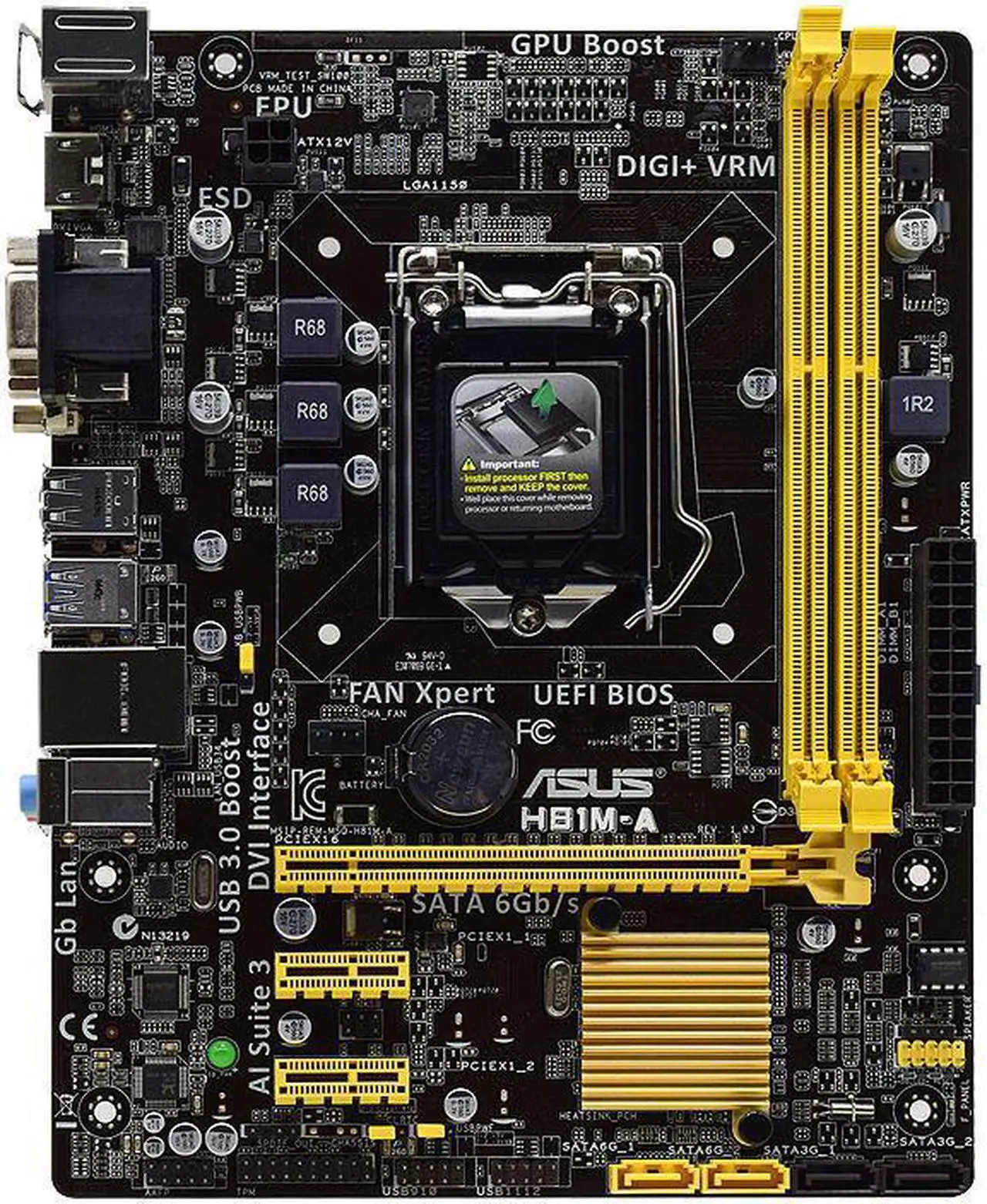

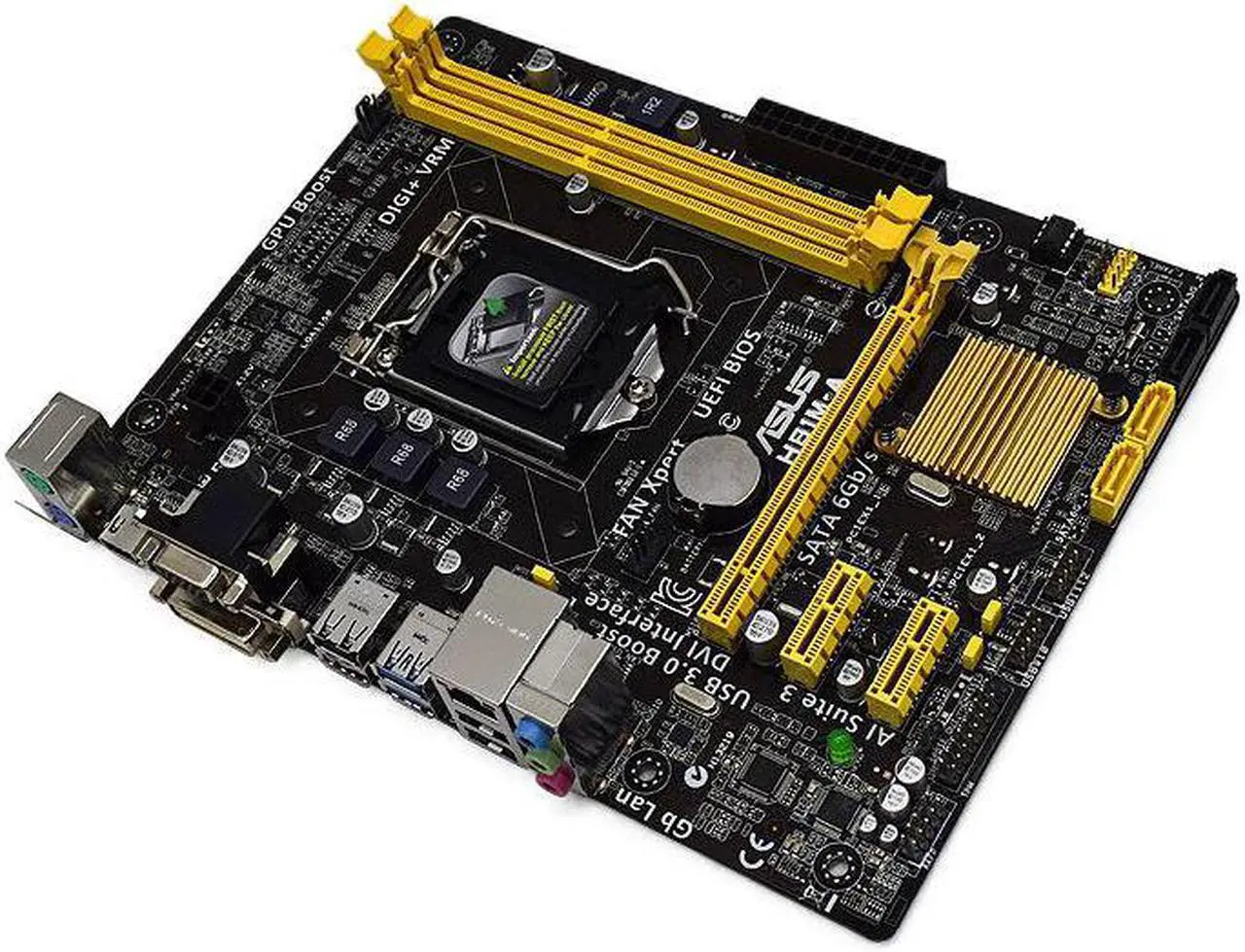

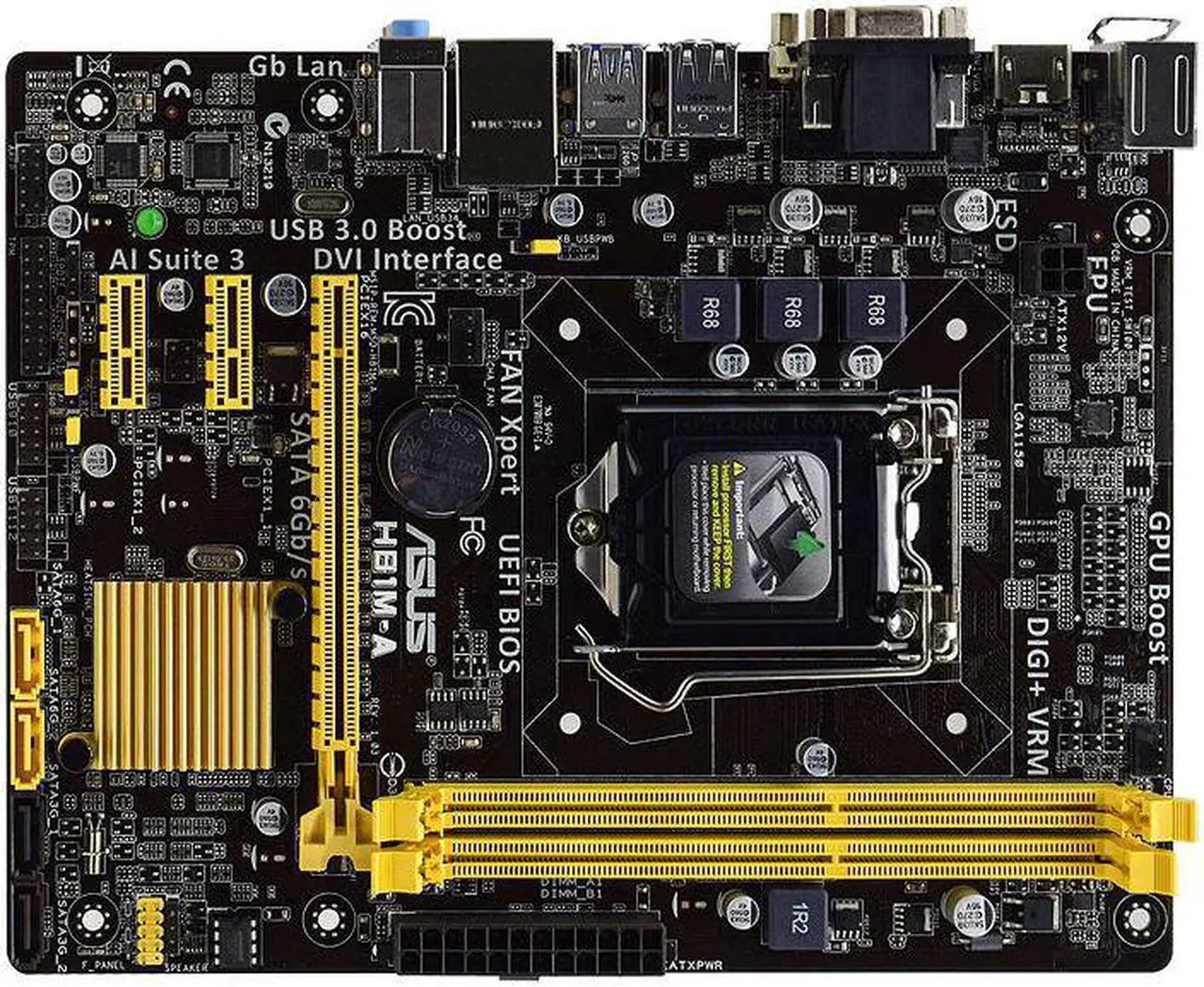

H81M-A Parameters
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel H81
Chipset description Using Intel H81 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111G Gigabit network card
Processor specifications
CPU type Core i7/i5/i3/Celeron/Pentium
CPU socket LGA 1150
CPU description Support Intel 22nm processor
Memory specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 2.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 2×SATA III interface, 2×SATA II interface

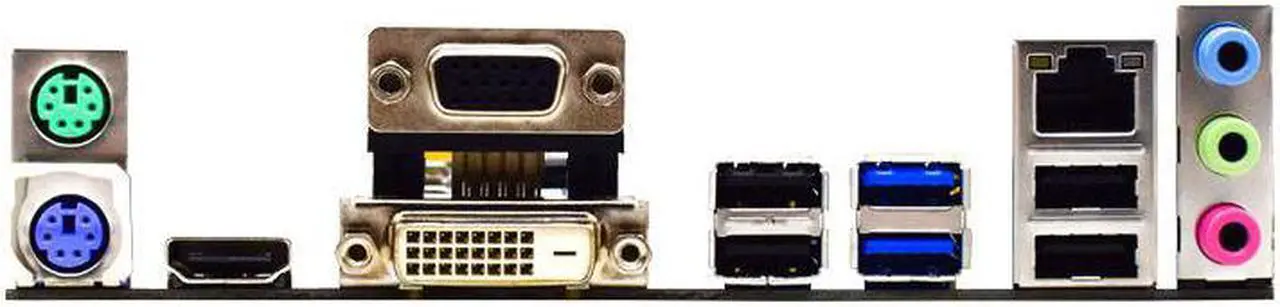

I/O interface
USB interface 2×USB3.0 interface (backplane), 8×USB2.0 interface (4 built-in +4 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Plate type
Motherboard type Micro ATX type
Dimensions 22.6×17.5cm
