Raspberry Pi Zero WH Package F, with UPS Module and 1.3inch LCD Display 512MB RAM 802.11 b/g/n WiFi wireless LAN

Demo Board Type:ARM
Certification:CE
Origin:CN(Origin)

* a
Micro SD card
is required for this operation, which should be purchased separately.
DESCRIPTION

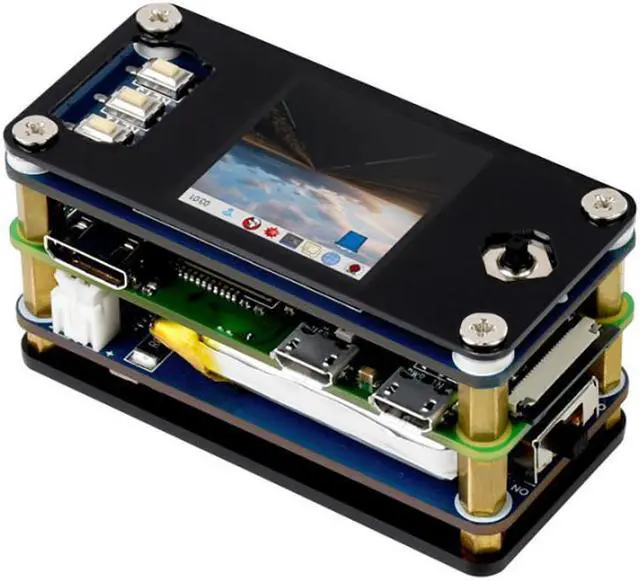

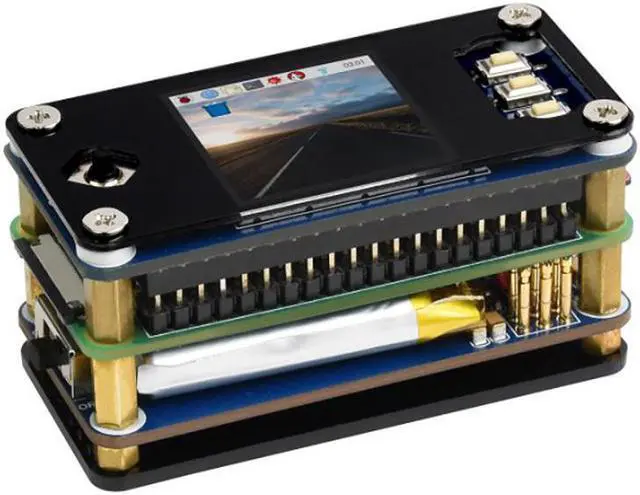

Raspberry Pi Zero WH Together With UPS Module And 1.3inch LCD Display
UPS & Display Combination
Based on Raspberry Pi Zero WH
What's Included
Product Features
This is a
UPS & Display combination package
of choice based on Raspberry Pi Zero WH, which consists of
Raspberry Pi Zero WH host controller, UPS (Uninterruptible Power Supply), 1.3inch IPS LCD display, as well as rich development resources. It is a ready-to-use kit, so you shouldn't have any trouble on the compatibility, just enjoy the display-related programming of Raspberry Pi.
Raspberry Pi Zero WH
features:
Broadcom BCM2835, 1GHz ARM11 single-core processor
512MB RAM
802.11 b/g/n WiFi wireless LAN
Bluetooth Low Energy 4.1 (BLE)
40PIN pre-soldered GPIO headers
Micro SD card slot
Mini-HDMI port (1080p 60fps video output)
Micro-USB power
Micro-USB OTG port
1.3inch-LCD-HAT
features:
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
IPS screen, wide viewing angle, better display
High definition in small size
1x joystick, 3x pushbuttons, handy and useful

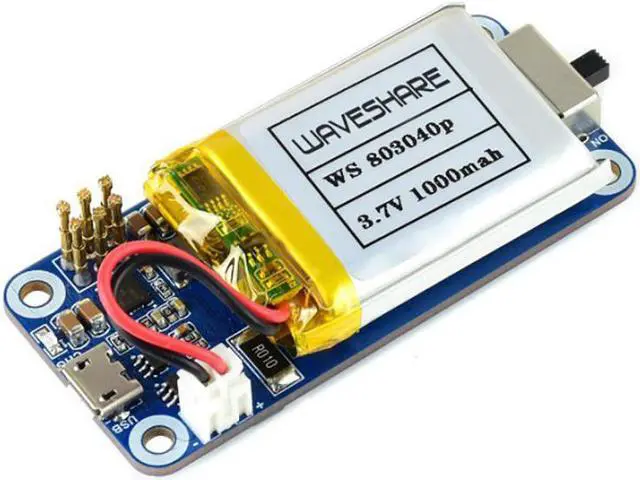

UPS HAT (C)
features:
Onboard spring pogo pins for connecting with Raspberry Pi Zero series boards
Li-po recharge chip, with dynamic path management, more stable power supply
Voltage boost chip, providing regulated 5V power output
I2C bus communication, monitoring the voltage, current, power, and remaining capacity in real time
Multi protection circuits: over charge/discharge protection, over current protection, and short circuit protection, more safe and stable
Recharging indicator for monitoring the operating status
Uninterruptible Power
It is able to recharge the and provide power output at the same time from external power supply
Automatically switch over to output if external power supply is unavailable, keeps the system running without any trouble
* a
Micro SD card
is required for this operation, which should be purchased separately.
Pogo Pin Connector For UPS
Supports Raspberry Pi Zero Series (Pinheader Should Be Soldered),
Allows Attaching Other HATs On The Top
Real Time Monitoring
Monitoring The Voltage, Current, Power, And Remaining Capacity Via I2C
When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss
Outline Dimensions
PACKAGE CONTENT
Raspberry Pi Zero WH x1
UPS HAT (C) x1
1000mAh Li-po x1
1.3inch LCD HAT x1
Black acrylic protection panels x1
Screws pack x1
