4x2 4 In 2 Out HDMI SPDIF IR Remote Matrix Switch Splitter Supports DTS-HD Dolby(AIS ADMX0402M1)

Features: - Four ways of optical fiber signal input split or switch to two sets of SPDIF signal receiving device - Support signal retiming - Used optical fiber cable loss less the 0.2D b/m, Output distance is up to 40m - The input control can through R/M and also can directly press the button - Support last time working state memory when power off. - Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine, if the light for standby indication flashed, it shows that the output voltage from the power adaptor is too high and the adaptor needs to be changed. - LED status indication, it can tell us the working state of the device very easily. - No loss of quality - Installs in minutes - Need DC5V/500mA power supply

Specifications

: -
Model: ADMX0402M1 -
Support audio format: DTS-HD/Dolby-trueHD/LPCM 2.0 /DTS/Dolby-AC3/DSD -
Peak wavelength: 650nm -
Max baud rate: 16Mbps -
Output cable distance: less than or equal to 40m(Use the optical fiber cable loss less the 0.2D b/m ) -
Max working current: 100mA -
Power adapter format:
Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/500mA -
Operating Temperature range: (0 to +40 degree) -
Operating Humidity range: 5 to 90%RH (No Condensation) -
Weight: 400g Operating and

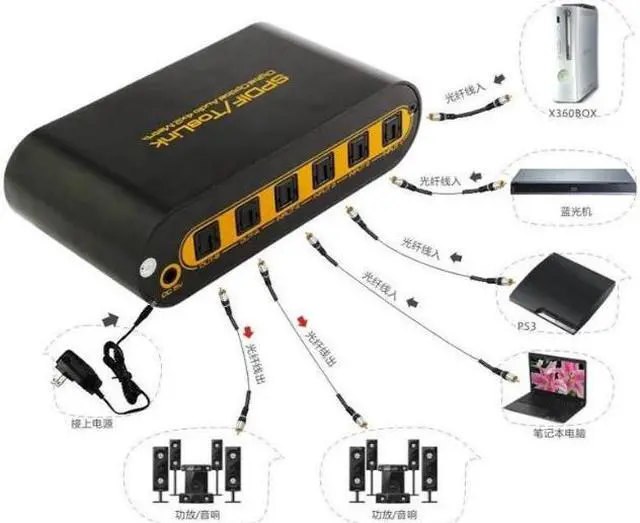

Connecting: - To use the optical fiber cable to connect the optical fiber signal source (such as blue-ray player, the computer and so on) with the matrix input. - To le the matrix output port connected to the optical fiber signal receiver (such as amplifier, home theater and so on) by using the optical cable. - Connect 5V power supply to the matrix DC input port - Through the remote or button to switch the input source freely.

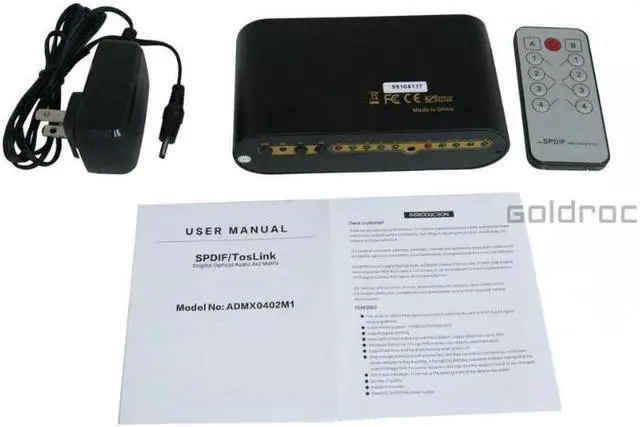

Package Included: 1 X Spdif matrix 4x2 1 X 5V Power Adaptor 1 X Operation Manual 1 X Remote-control unit
