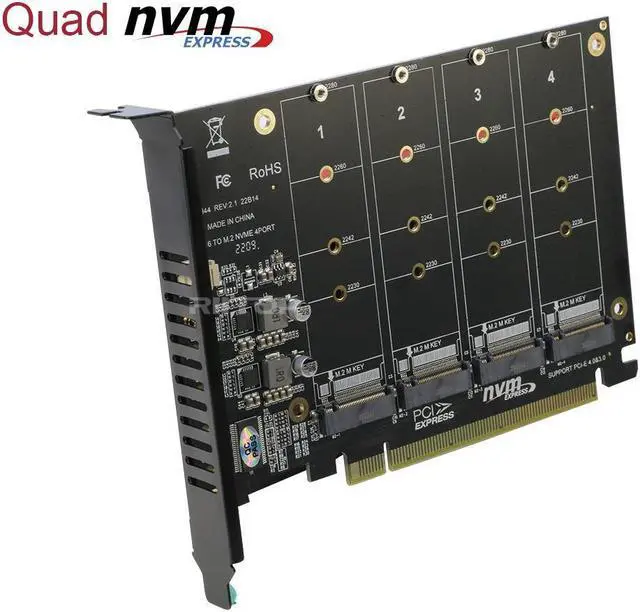

Amify Quad M.2 NVMe to PCIe Adapter Expansion Card (PCIe Bifurcation Motherboard is Required), Support 4* M.2 PCIe NVMe SSD
- Quad NVMe PCIe Adapter allows you add 4x NVMe SSDs simultaneously via 1x PCI-e 4.0 or 3.0 x16 Slot on MOBO which supports PCI-e PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps.
- Hardware requirement:
- 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo.

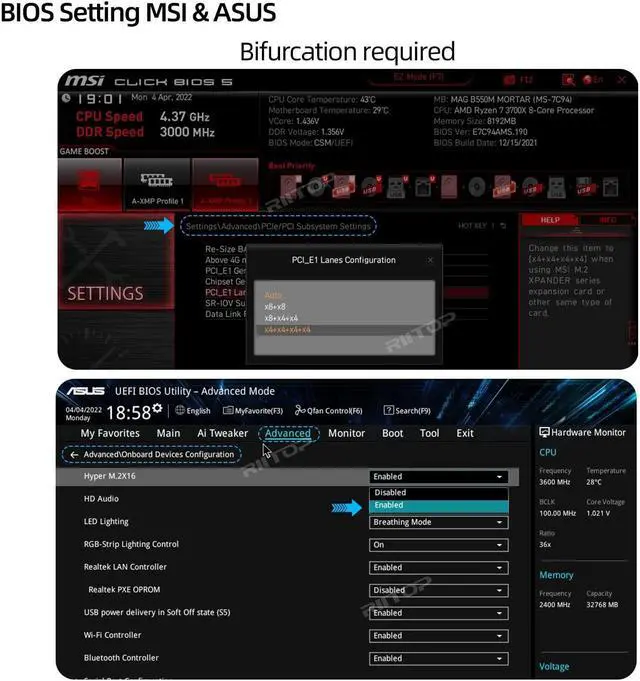

- 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" 3. All of the SSDs are M.2 (M Key) NVMe SSD 4. CPU has enough channels to support.

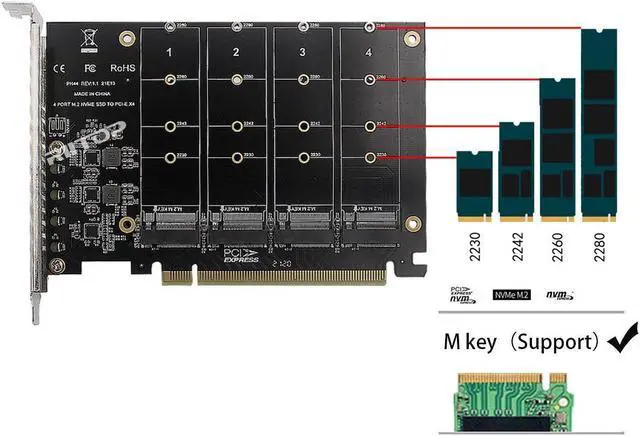

- Compatible with M.2 PCI-e NVMe SSDs: 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M.2 (SATA-Based B+M Key) SSD; Motherboard.
- Compatibility: Most Server and X299, X399 can support PCIe x16 Bifurcation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Quad NVMe PCIe Adapter allows you add 4x NVMe SSDs simultaneously via 1x PCI-e 4.0 or 3.0 x16 Slot on MOBO which supports PCI-e PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps.
Hardware requirement:
1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo.
2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" 3. All of the SSDs are M. 2 (M Key) NVMe SSD 4. CPU has enough channels to support.
Compatible with M. 2
PCI-e NVMe SSDs: 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M. 2 (SATA-Based B+M Key) SSD; Motherboard.
Compatibility: Most Server and X299, X399 can support PCIe x16 Bifurcation.
Hardware requirement:
1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo.
2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" 3. All of the SSDs are M. 2 (M Key) NVMe SSD 4. CPU has enough channels to support.
Compatible with M. 2
PCI-e NVMe SSDs: 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M. 2 (SATA-Based B+M Key) SSD; Motherboard.
Compatibility: Most Server and X299, X399 can support PCIe x16 Bifurcation.
