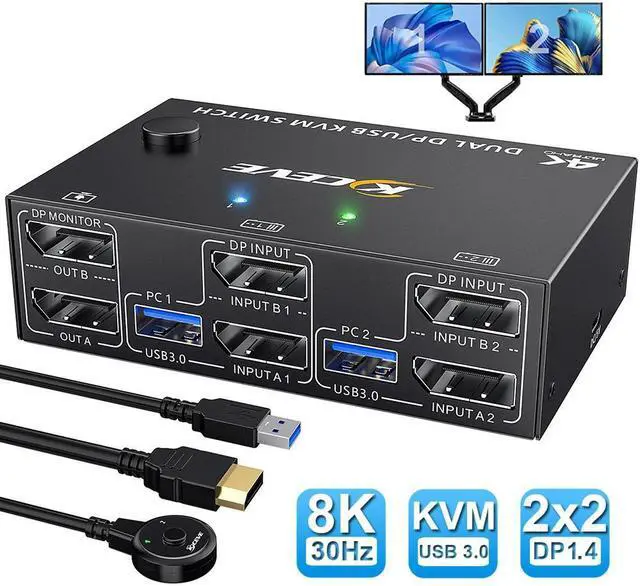

8K USB 3.0 Displayport KVM Switch 2 Computers 2 Monitors, 8K @30Hz 4K @144Hz Dual Monitor Displayport 1.4 KVM Switches 2 in 2 Out with 4 USB 3.0 Port for USB Device, Wired Remote and 4 Cables Included

2 Ports Dual Monitor displayport KVM Switch, 2 computers share 2 monitors and 4 USB 3.0 devices.

Advantages:
- 2 computers share one set of wired/wireless keyboard, mouse and 2 monitors.
- Support max up resolution 8K@30Hz, 4K@144Hz, 2560×1440@144Hz, 1920x1080P@144Hz, downward compatible. support ultra-wide monitors.
- Dual monitors output support extended and mirror display.

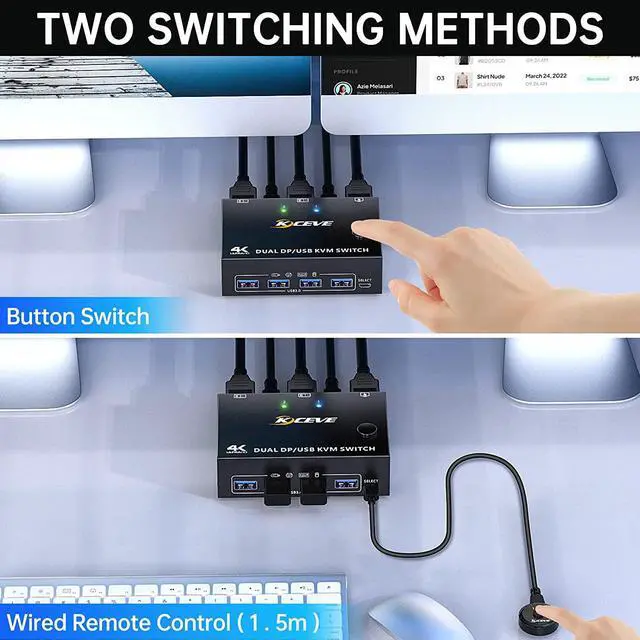

- Switching modes: Button switch and wired remote ( 1.5 m), switch between 2 computers just need 2-4 seconds, fast and convenient.
- Support wired or wireless keyboard and mouse. When use a mechanical gaming keyboard, You need to plug in the DC 5V USB power cable to the KVM to provide sufficient power.
- Cross support most major OS including Windows, Linux, Mac OS.
- Dual displayport KVM switch with 4 USB 3.0 ports for USB devices.
- Support DP 1.4 standard, backwards compatible with DP 1.2 standard.

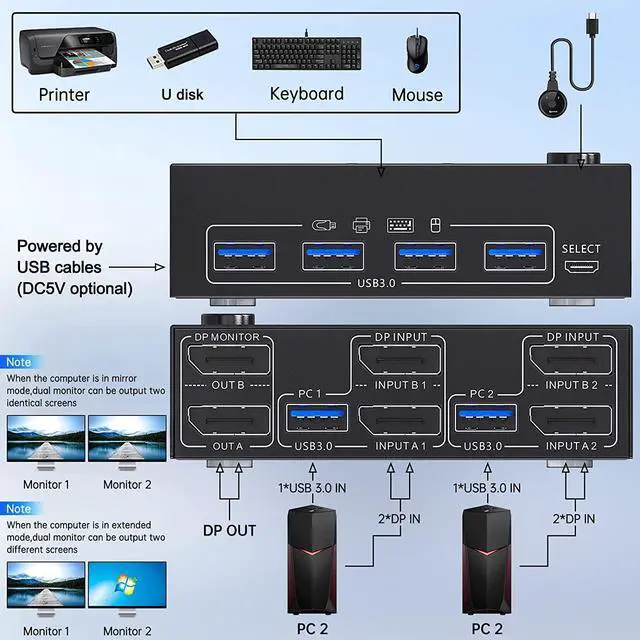

Installation Guide Tips (incorrect connection will cause malfunction):
Each computer must connection 2 DP cables and 1 USB cable to ensure keyboard, mouse and monitors to work correctly.

Connection steps:

Step 1. Connect 2*DP cables+1*USB-A cable between PC 1 and KVM (USB 3.0, INPUT A1, INPUT B1).

Step 2. Connect 2*DP cables+1*USB-A cable between PC 2 and KVM (USB 3.0, INPUT A2, INPUT B2).

Step 3. Connect 2*DP cables between the KVM (OUT A, OUT B) and your 2 monitors.

Step 4. Insert your USB devices (keyboard mouse and U disk) into the USB port on the KVM.

Step 5. Insert the Wired Remote into the "SELECT" port to remotely switch between PC1 and PC2.

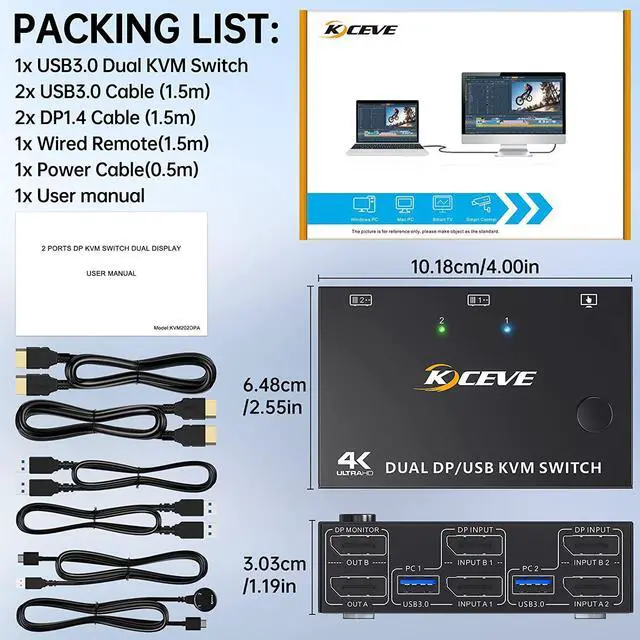

Package contents:
1 * Displayport KVM switch;
2 * 8K DP 1.4 cable;
2 * USB 3.0 cable;
1 * Wired remote;
1 * USB power cable;
1 * User manual.
