8K@60Hz HDMI Matrix Switch 4x2 with ARC, 4 in 2 Out HDMI2.1 Matrix HDMI Video Switcher Splitter+ Optical &L/R Audio Extractor, Support 4K @120Hz HDR10 HDCP2.3 Auto Downscale with IR Remote

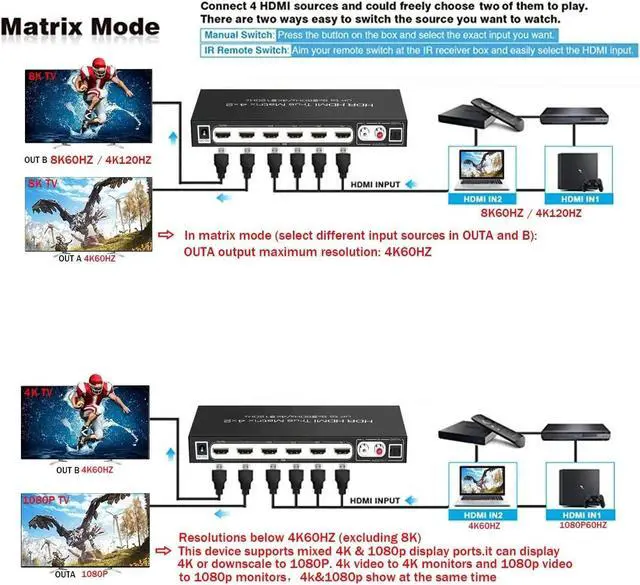

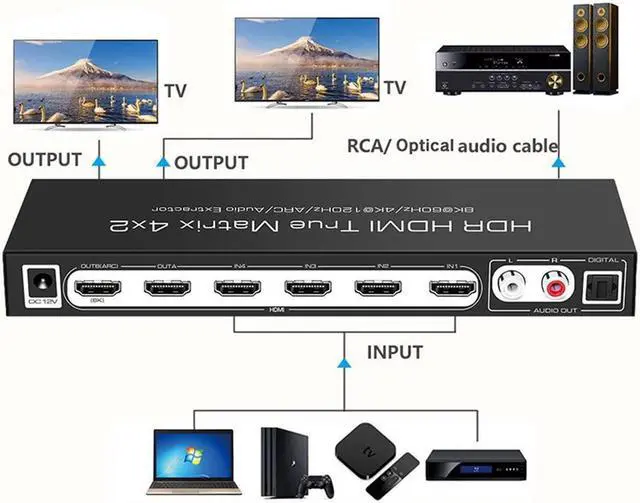

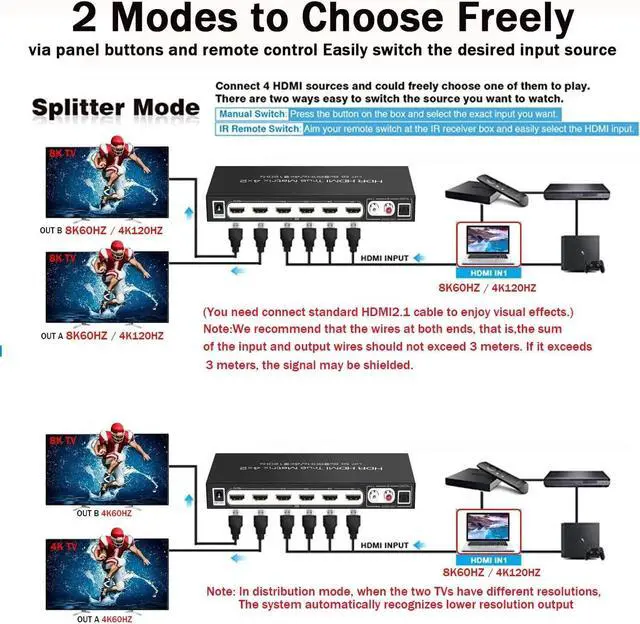

- 8K HDMI2.1 Switch 4 in 2 Out: This HDMI matrix allows easy switch or split 4 HDMI input sources to 2 HDMI display or monitor via SPDIF optical fiber or 3.5mm stereo audio output. HDMI input support: Blu-ray players, PS4, X box, PC, Laptop etc. HDMI output support: Monitor, Projector, Full HD TV. Audio output: Amplifier, Soundbar, Speaker, etc.
- 8K Ultra HD Resolution:Adopt the latest chips, support resolution can up to 8K@60Hz, also back compatible with 8K@30Hz, 4K@120Hz, 3D, 1080P, 720P,etc. Support 8/10/12/16 bit deep color, HDCP 2.3, VRR, HDR10, Do-bly Vision. High Speed transmission rate up to 40Gbps, 1GHz max bandwidth.
- Plug and Play: Our HDMI matrix is made of premium raw materials, durable and sturdy. Adding quick heat absorption and dissipation, makes more durable, and minimizes EMI/RFI noise interference.
- Audio Extractor and ARC Function: Our HDMI matrix can extract the audio to Toslinks SPDIF optical audio output or RCA audio output separately at the same time.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SPECIFICATIONS:

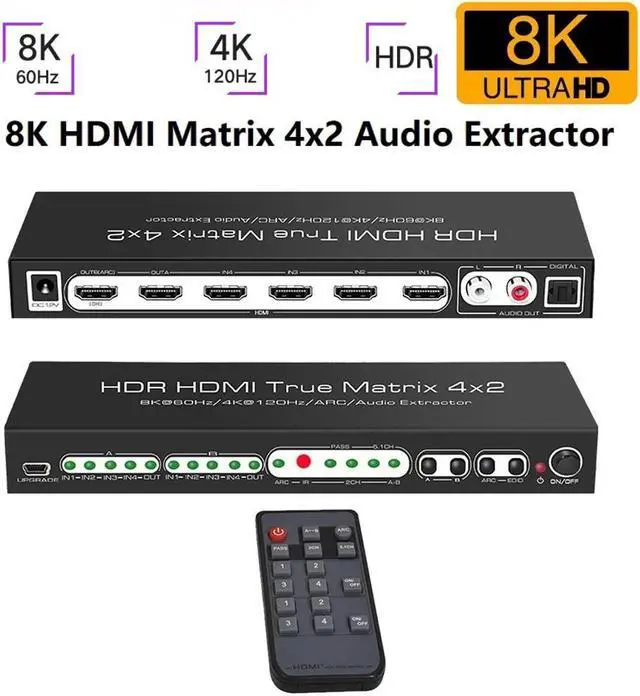

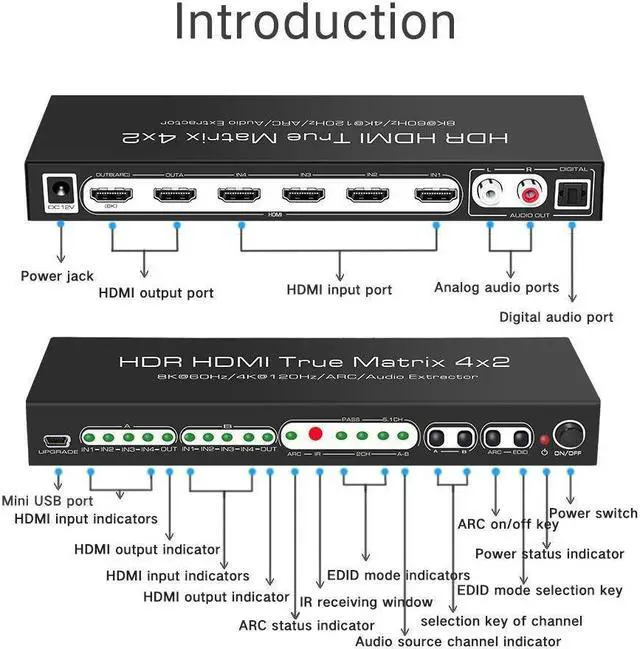

Model name 8K HDR HDMI True Matrix 4x2
Input ports HDMI x 4
Output ports HDM x 2, RCAX2, Optical X1
Video format 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz (YCC420), Support HDR/Dolby Vision
Deep color 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1GHz Max.
Transmission rate: 40Gbps Max.
IR distance 5m
Input cable length 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 10m
Output cable length 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 12m
Power adapter specification AC 100~240V/ DC 12V/ 1.5A
Max working current 300mA
Working temperature range -5 ~ +40
Working humidity range 5 to 85%RH (No Condensation)
Storage temperature -15 to 55
Storage humidity 5 ~95%RH (No Condensation)
Size approx. 250x75x30 (mm)
Weight approx. 430g

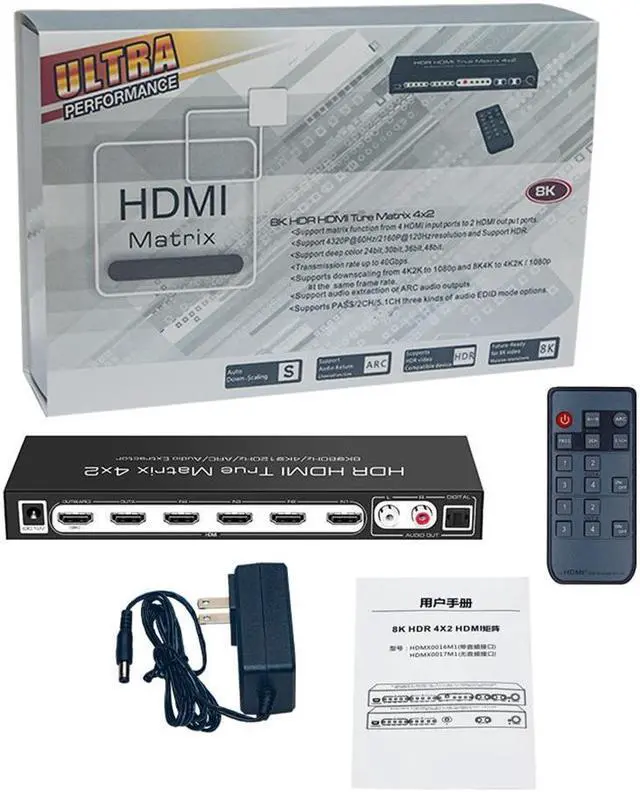

Package Content:
1PCS 8K 4x2 HDMI Matrix
1PCS Manual
1PCS Remote Controller without battery
1PCS Power Adaptor
Model name 8K HDR HDMI True Matrix 4x2
Input ports HDMI x 4
Output ports HDM x 2, RCAX2, Optical X1
Video format 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz (YCC420), Support HDR/Dolby Vision
Deep color 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1GHz Max.
Transmission rate: 40Gbps Max.
IR distance 5m
Input cable length 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 10m
Output cable length 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 12m
Power adapter specification AC 100~240V/ DC 12V/ 1.5A
Max working current 300mA
Working temperature range -5 ~ +40
Working humidity range 5 to 85%RH (No Condensation)
Storage temperature -15 to 55
Storage humidity 5 ~95%RH (No Condensation)
Size approx. 250x75x30 (mm)
Weight approx. 430g
Package Content:
1PCS 8K 4x2 HDMI Matrix
1PCS Manual
1PCS Remote Controller without battery
1PCS Power Adaptor
