Feature
Wireless-AC AX200 Ultra Wi-Fi. Ultra Features. Ultra Connected Experience.
The Wi-Fi 6 AX200 supports 802.11 ax via 2x2 MU-MIMO antennas over the 2.4 GHz and 5 GHz bands.

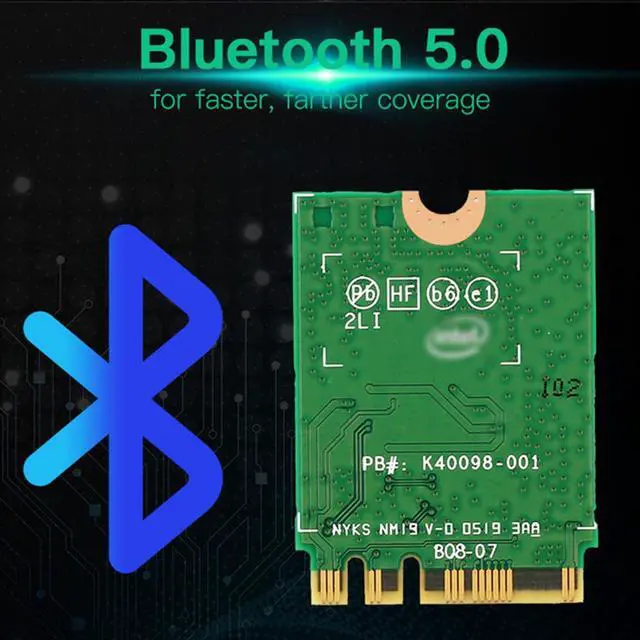

AX200 supports Bluetooth 5.0.

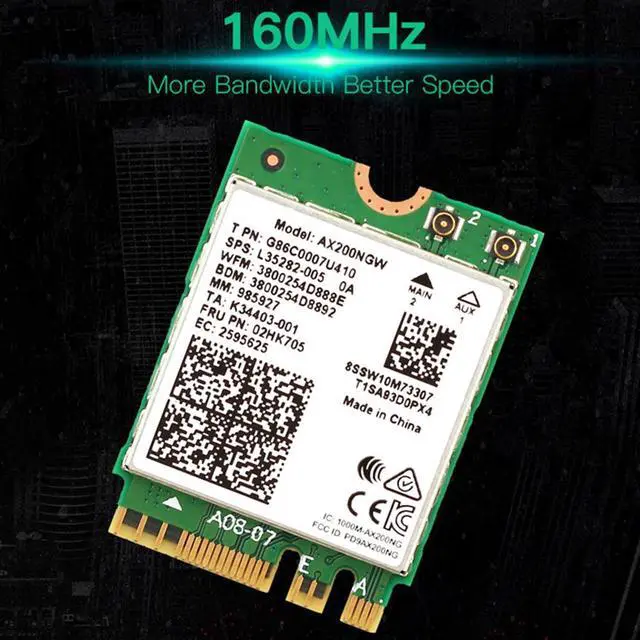

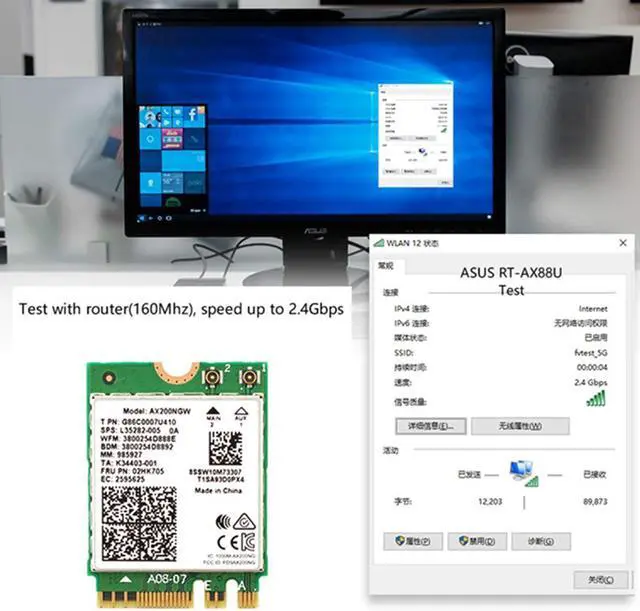

The maximum throughput supported by the Wi-Fi 6 AX200 is a speed up 2.4 Gbps (160Mhz).
The AX200NGW can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.
Description:

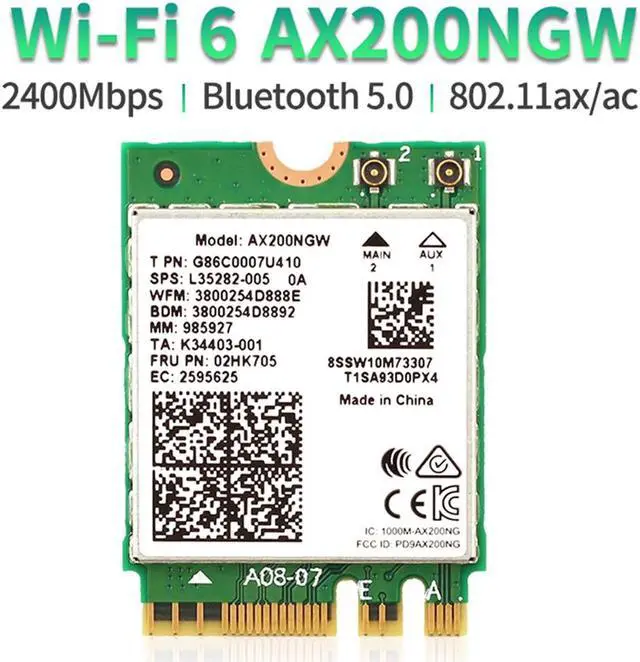

Model: AX200NGW
Dual band: 2.4G hz / 5Ghz (160Mhz)
Speed up to 1730Mbps (The router must on 160Mhz);
Speed up to 2400Mbps (5Ghz), 574Mbps( 2.4G hz)(The router must on 160Mhz, support 802.11 ax)
With Bluetooth 5.0, Support MU-MIMO
?

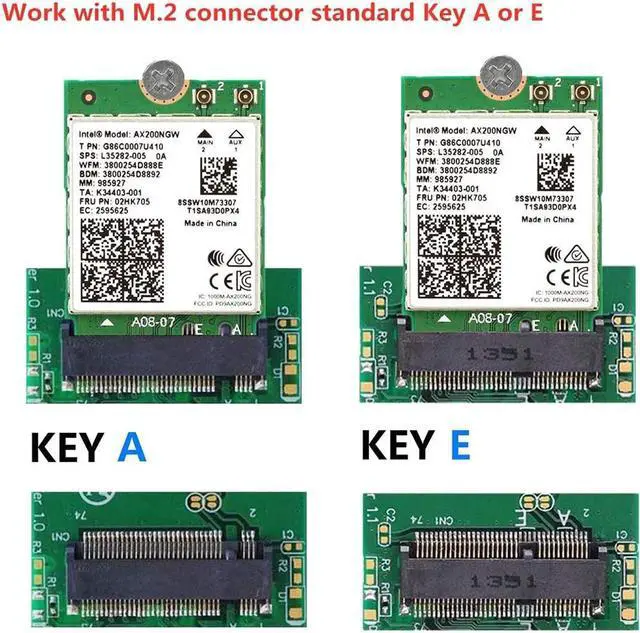

Interface: NGFF(M
. 2): 22*30MM

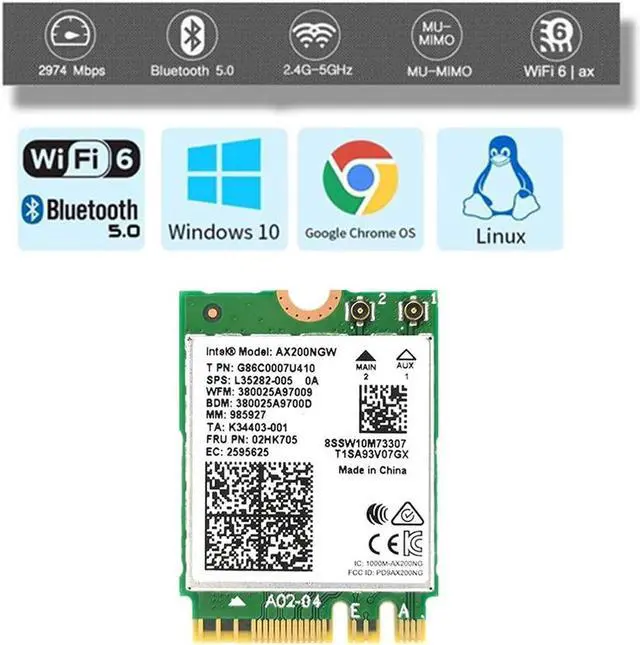

Supported Operating Systems: Only work on Microsoft Windows 10* 64bit,
Note: Not support Windows 7/8/ 8.1
Compatible With: It can used on Samsung /Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc(Do not include lenovo and HP, if it can use after rewrite the whitelist ).
Not support IBM/Thinkpad/lenovo/hp laptop.
Parameter
TX/RX Streams: 2x2
Bands: 2.4G hz, 5Ghz (160Mhz)
Max Speed: 2.4G bps
Wi-Fi CERTIFIED*: 802.11 ax
Compliance: FIPS, FISMA
Bluetooth Version: Bluetooth 5
Integrated Bluetooth: Yes
Board Form Factor: M. 2 2230
MU-MIMO: Yes
Supported Under Intel vPro Technology: Yes
