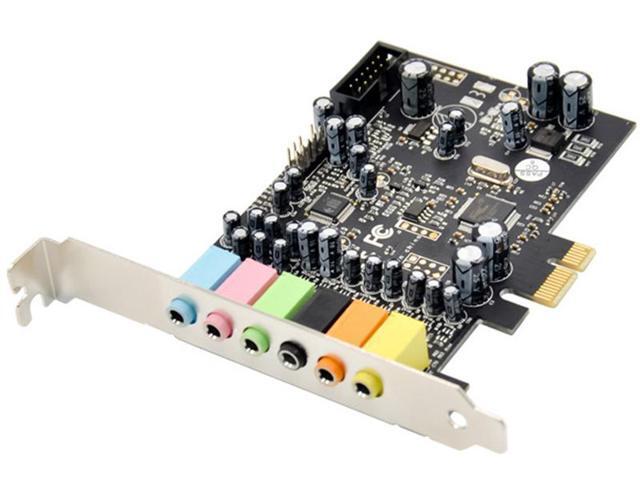

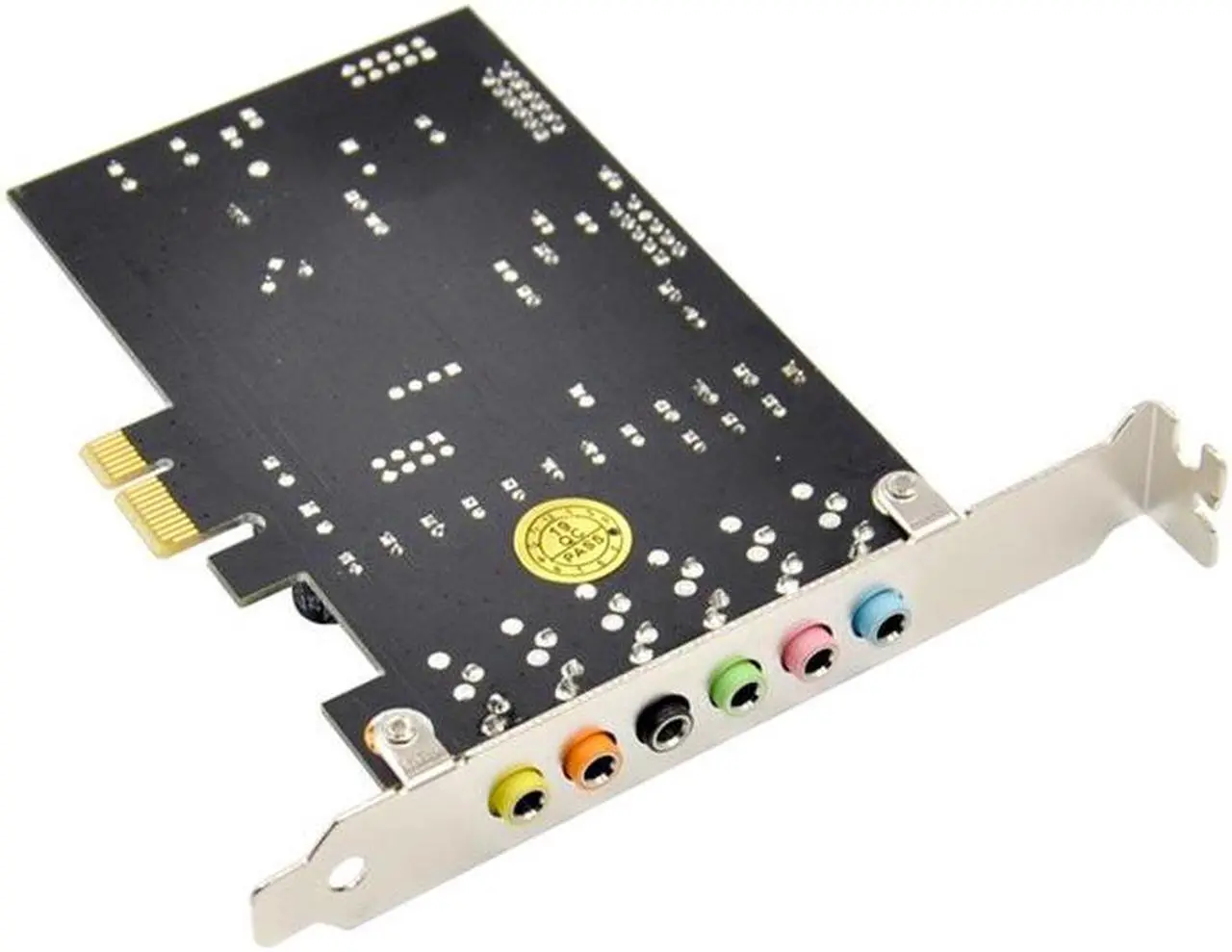

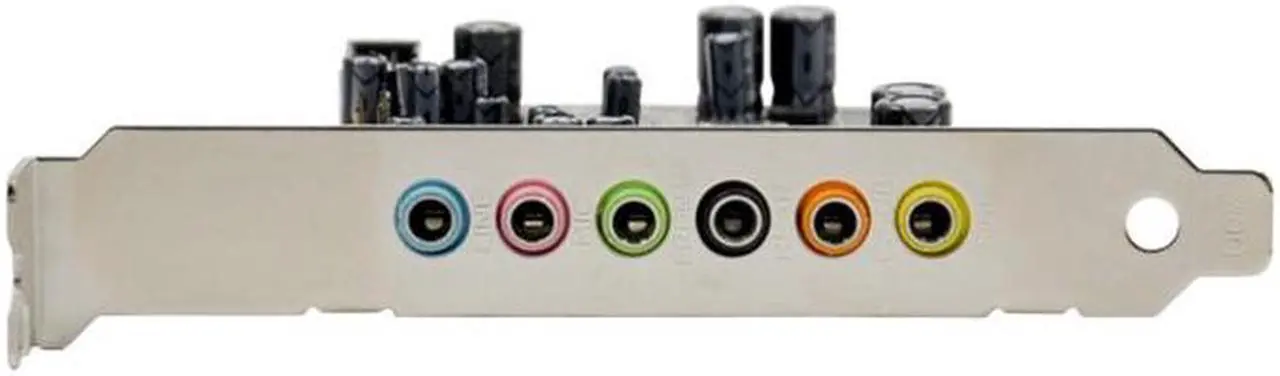

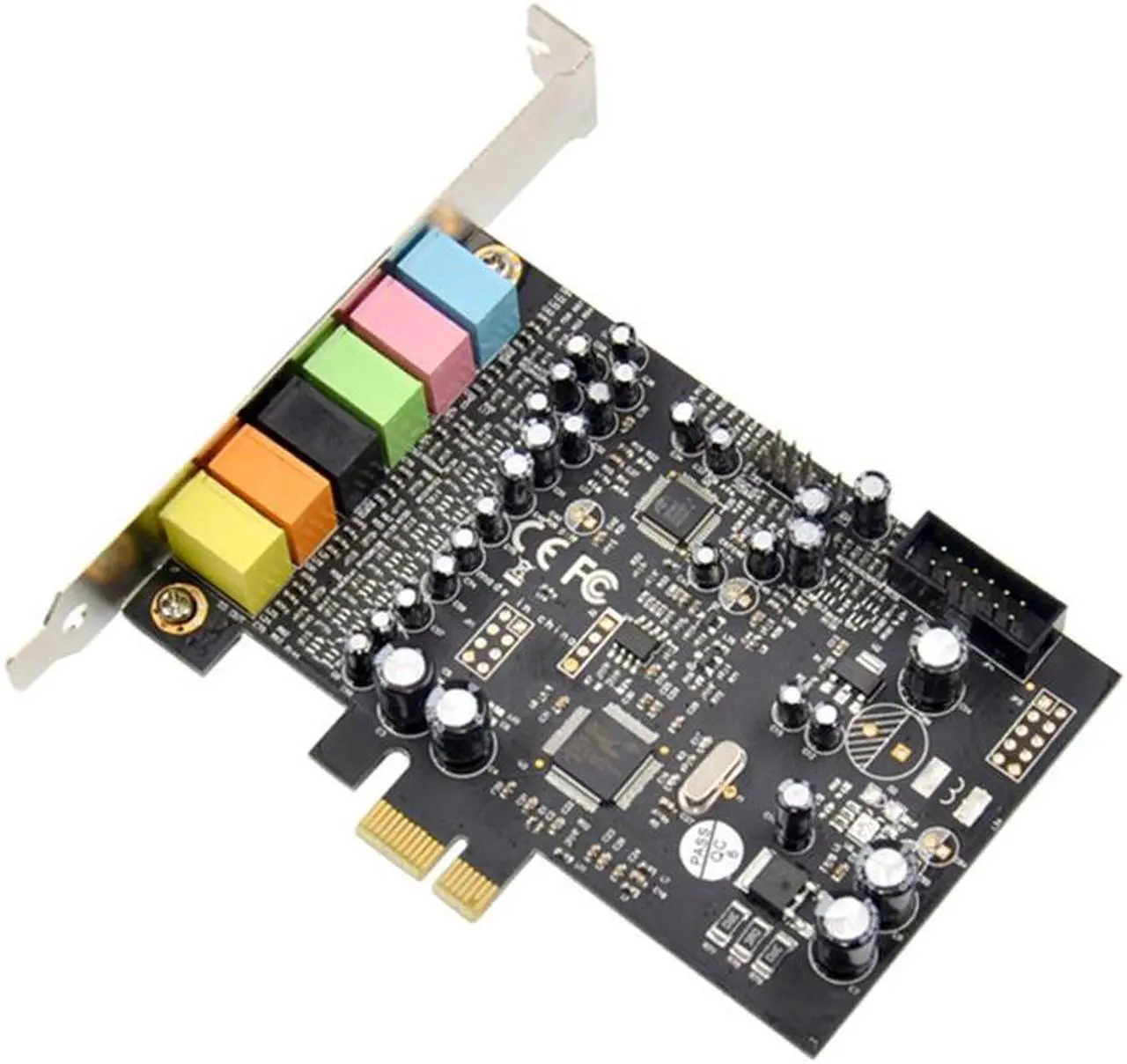

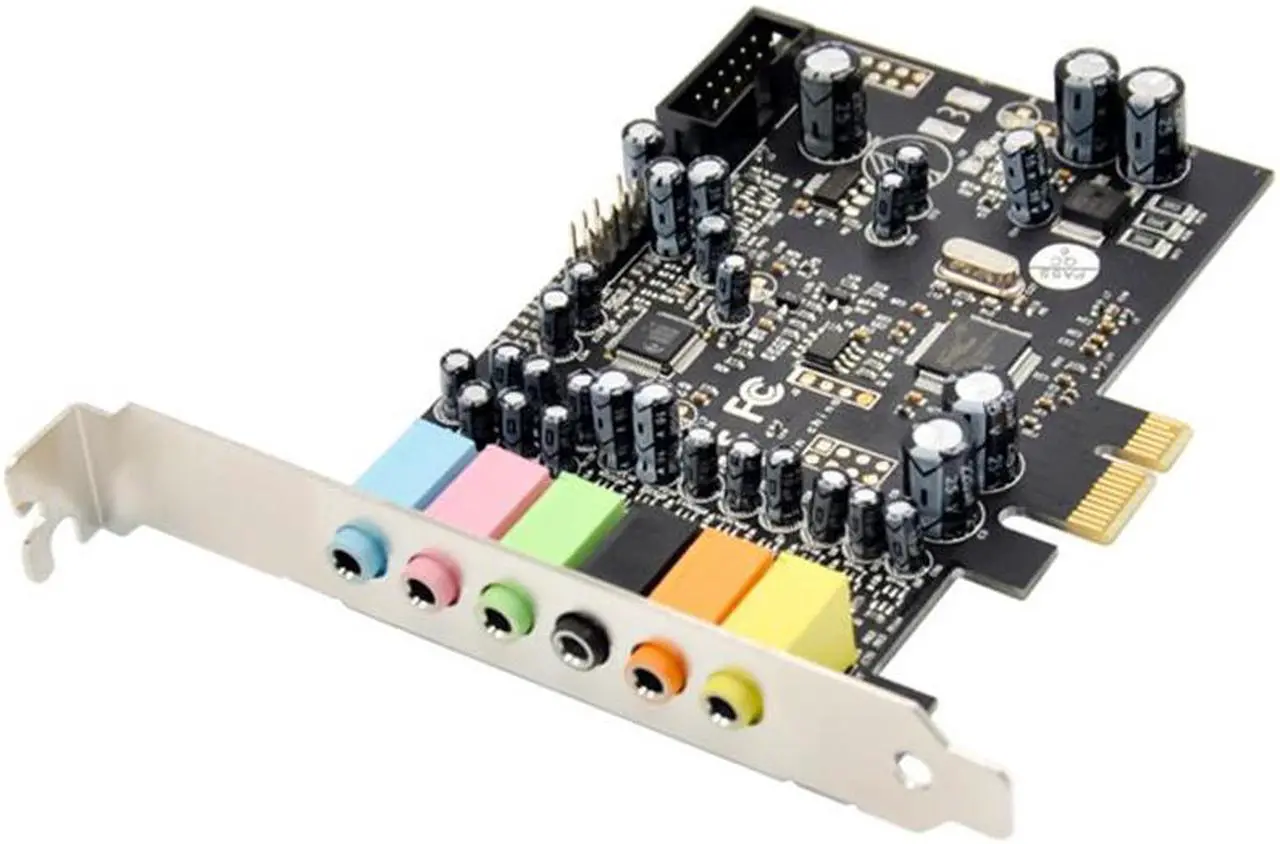

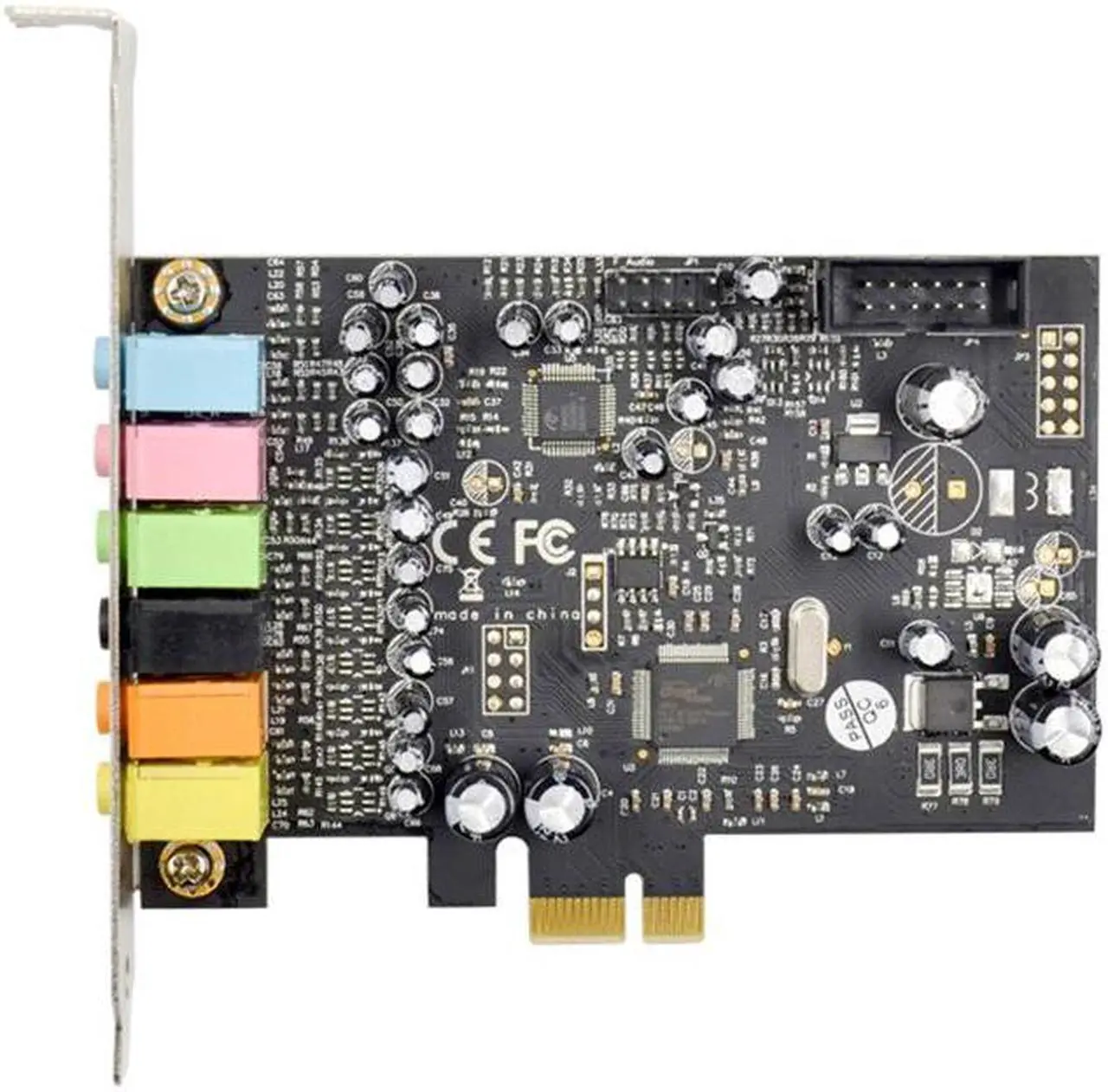

Pcie 7.1CH Sound Card Stereo Surround Sound PCI-E Built-In 7.1 Channel Audio Audio System CM8828
- Main controller:CM8828 + CM9882A
- Bus type:PCI Express Rev 1.1
- Audio channel:7.1 CH audio system, compatible with 2.1 / 5.1 stereo surround sound system equipment
- Interface interface
- LINE:linear input, MIC: microphone input, FRONT: pre-output,REAR: Rear surround output, C/SUB: Center/Subwoofer output, SIDE: Side surround output
- Rich input/output interface
- ASIO driver and advanced intelligent software interface onboard high fidelity audio (HDA) output (F_Audio)
- Embedded mode: Embedded 8051-based MCU that transcodes HD Audio commands
- Application areas: home theater, large 3D games, audio playback, etc.
- Sample sampling rate: 44.1 ~ 192 kHz / 24 bits
- Signal to noise ratio:100db
- Harmonic distortion:-85db playback / -90db recording
- Control interface:Xear intelligent software exchange control interface
- Working mode:extended full duplex (simultaneous playback and recording function)
- Audio mode
- XearTMLiving 1.1, XearTMVoClear, XearTM Sonic, XearTM Surround,
- XearTM Pro 1.0, XearTM SingFX, XearTM
+
+
Overview
Specs
Reviews
Main controller:CM8828 + CM9882A
Bus type:PCI Express Rev 1.1
Audio channel:7.1 CH audio system, compatible with 2.1 / 5.1 stereo surround sound system equipment
Interface interface
LINE:linear input, MIC: microphone input, FRONT: pre-output,REAR: Rear surround output, C/SUB: Center/Subwoofer output, SIDE: Side surround output
Functional characteristics
Rich input/output interface
ASIO driver and advanced intelligent software interface onboard high fidelity audio (HDA) output (F_Audio)
Embedded mode: Embedded 8051-based MCU that transcodes HD Audio commands
Application areas: home theater, large 3D games, audio playback, etc.
Sample sampling rate: 44.1 ~ 192 kHz / 24 bits
Signal to noise ratio:100db
Harmonic distortion:-85db playback / -90db recording
Control interface:Xear intelligent software exchange control interface
Working mode:extended full duplex (simultaneous playback and recording function)
Audio mode
XearTMLiving 1.1, XearTMVoClear, XearTM Sonic, XearTM Surround,
XearTM Pro 1.0, XearTM SingFX, XearTM Magic Voice, XearTM Audio Brilliant
colour:black
Material:Metal + plastic
