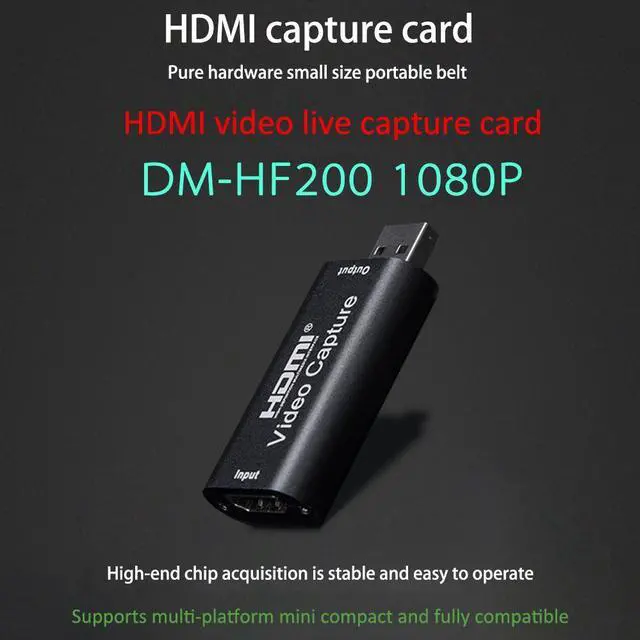

1080p USB2.0 HDMI Capture Card 1 Channel HDMI Video Capture Card Live Recording Box Audio Video Capture Card Portable USB HD Video Capture Card

Description:
This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:
* Support maximum input resolution up to 4K;
* Support maximum output resolution up to 1080P;
* Support 8/10/12 bit color depth;
* When using standard AWG26 cable, input transmission distance up to 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc.;
* Support Windows, Android and MacOS;
* Comply with USB video UVC specifications;
* Complies with USB audio UAC specifications;
* No external power supply, compact size and easy to carry.

Highlights:

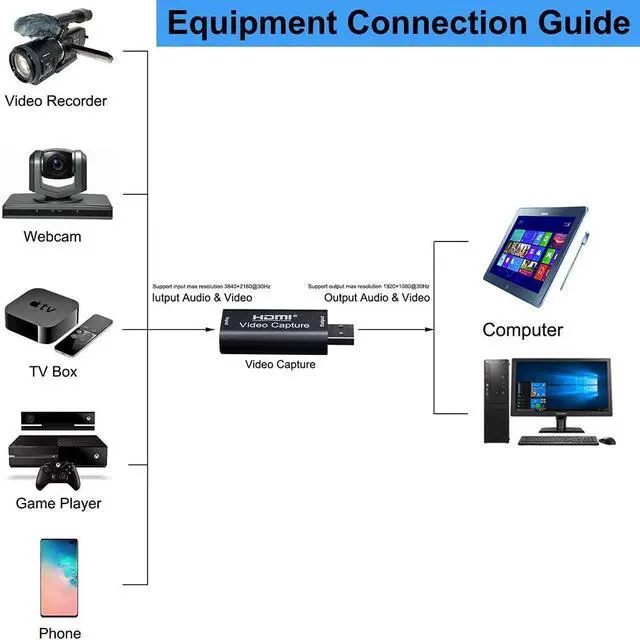

* High-definition display / video recording / webcasting: HDMI interface connects to audio and video input signals, and USB interface connects to the computer, which can realize high-definition display, record video, video live broadcast on the computer, and also can realize live game, recording live broadcast, conference recording, recording Camera HD video, etc.

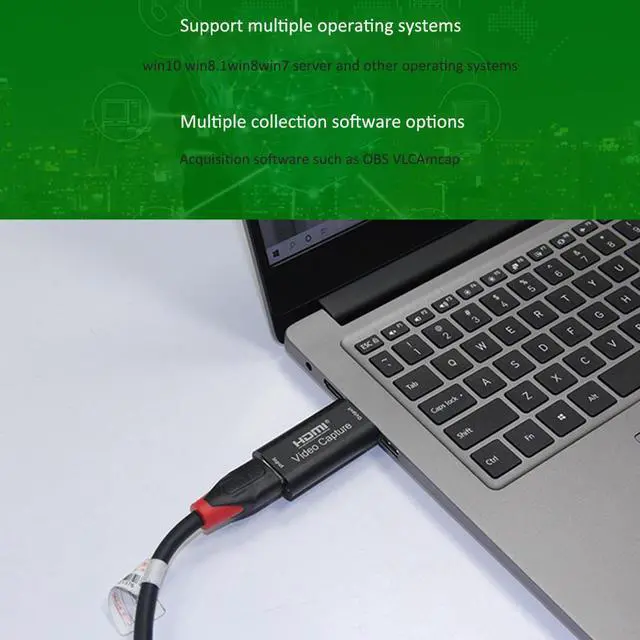

* Support multiple operating systems
& multiple acquisition software options: win10 win 8.1 win8win7 server and other operating systems; OBS VLC Amcap and other acquisition software.
* Compatible with various HDML signal input: it can support HDMI signal input such as camera, conference camera, computer, mobile phone, set-top box, PS4 / XBOX game console, etc.
* You can capture HDMI video and HDMI audio, and send audio and video signals to computers and smartphones for preview and storage.
* Suitable for high definition acquisition, teaching recording, medical imaging, game entertainment live broadcast.

Specification Description:
HDMI resolution: The highest input can support 4K
Video input format: 8/10 / 12-bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum output resolution 1080P
Support audio format: L-PCM
Input cable length: =15 meters, AWG26 HDMI standard cable
Maximum working current.: 0.4A / 5VDC
Operating temperature range: (-10 to + 55? )
Dimensions: 64x28x13 (mm)
Weight: 21.4 g

Packing specification:
HDMI capture card * 1
Manual * 1
