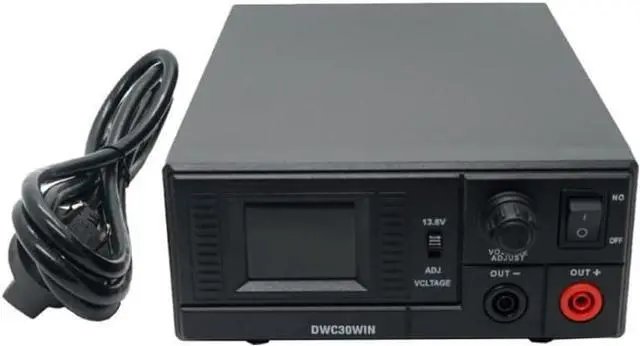

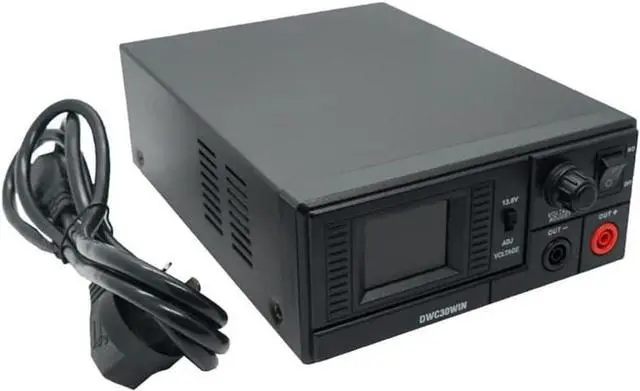

Switching Power Supply DWC30WIN, Universal Compact 13.8 Volt DC 110V AC Home Lab AC-DC Converter Power Supply for CB/HAM Radio Mobile, Output Current 30A(Max), Liquid-Crystal Display
- DUAL ARM MONITOR MOUNT: Fits 2 screens up to 32 inches, with a maximum support weight of 17.6 pounds each, using the 75x75mm or 100x100mm VESA square bolt hole pattern found on the back of the monitors. Comes with interchangeable C-clamp or grommet base mount for use on desktops.
- FEATURES: Dual monitor arm has counterbalanced, mechanical spring arms which are easily height adjusted and comes with 2 x USB 3.0 ports and (1) USB extension cable. It has integrated cable management and is made out of heavy duty steel and aluminum alloy.
- FULLY ADJUSTABLE: Monitor stand with USB ports can tilt +/- 90 degrees, swivel left/right 360 degrees, and raise/lower a total of 11.5 inches. Turn hex bolt on top of mechanical springs to set the counterbalance and hold screens in place.
- EASY INSTALLATION: Dual monitor mount comes with all mounting hardware, tools, and instructions necessary for assembly. Quick-detachable VESA plate comes off with a push of a button, mounts to back of
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DWC30WIN is a high efficiency, compact, lightweight, high performance switching power supply.
Input voltage: 110VAC.
Output voltage: 13.8DC adjusted voltage between 9.0 and 15.0 volts. Turn clockwise to increase and counter clockwise to decrease the voltage. When it is set at the center position it will supply 13.8 volts.
Output current: 30A (max), 20A (continuous).
Output voltage regulation: less than 2%.
Protection: Short-circuit, Automatic current limiting With in 30A.
Ripple: less than 80mVp-p at rated load.
Fuse: 5A.

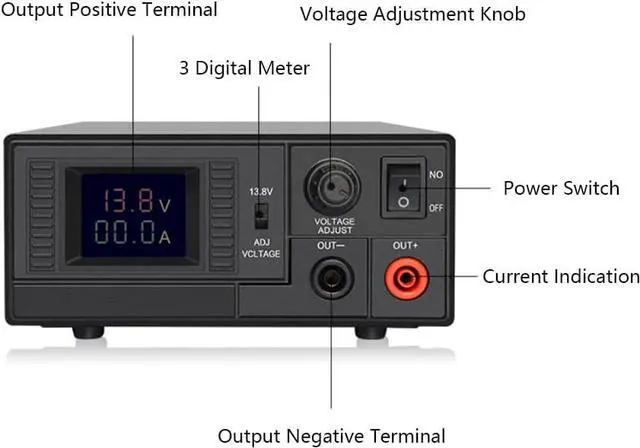

Meter: single volt/current meter, back-lit. Make sure the product is always suitably grounded to prevent electric shock and to reduce noise.
Dimensions: 6.1 (W) x 2.7 (H) x 8.1 (D) inch (projections not included).
Weight: approx 3.3 lb. Even though the chassis of the unit is negatively grounded, use correct terminals to connect cable.
Input voltage: 110VAC.
Output voltage: 13.8DC adjusted voltage between 9.0 and 15.0 volts. Turn clockwise to increase and counter clockwise to decrease the voltage. When it is set at the center position it will supply 13.8 volts.
Output current: 30A (max), 20A (continuous).
Output voltage regulation: less than 2%.
Protection: Short-circuit, Automatic current limiting With in 30A.
Ripple: less than 80mVp-p at rated load.
Fuse: 5A.
Meter: single volt/current meter, back-lit. Make sure the product is always suitably grounded to prevent electric shock and to reduce noise.
Dimensions: 6.1 (W) x 2.7 (H) x 8.1 (D) inch (projections not included).
Weight: approx 3.3 lb. Even though the chassis of the unit is negatively grounded, use correct terminals to connect cable.
