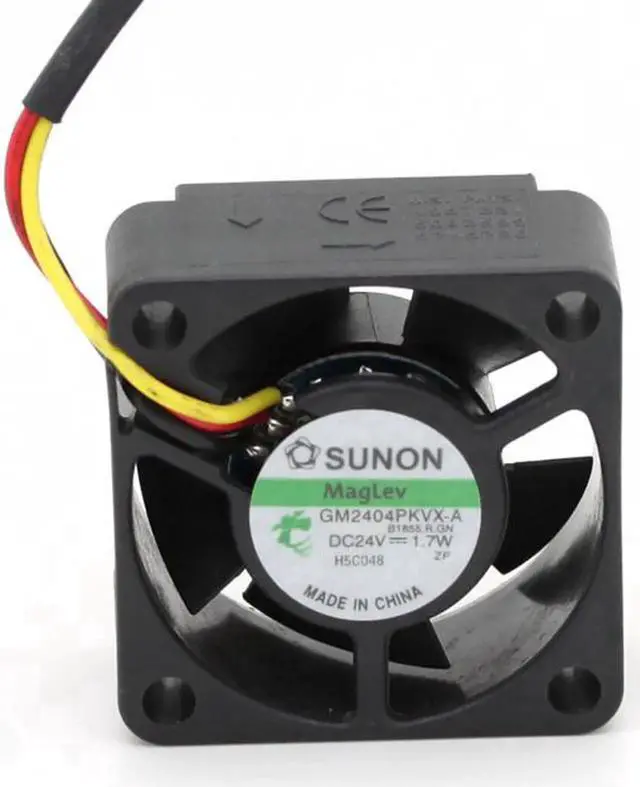

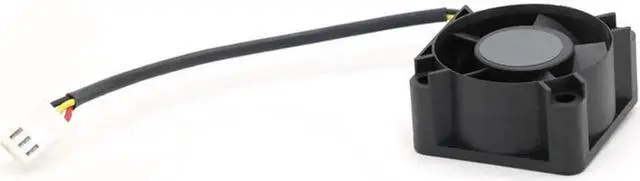

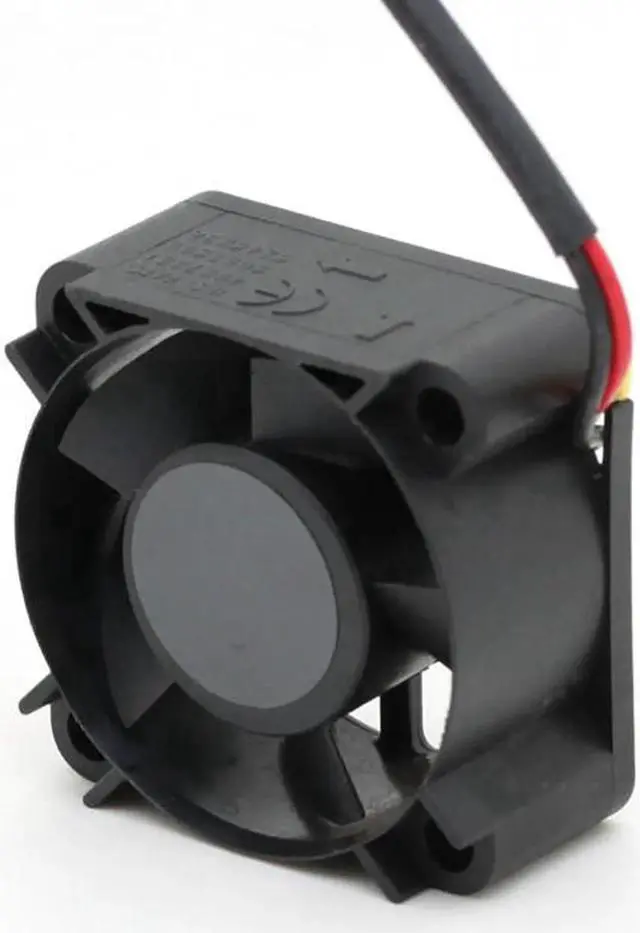

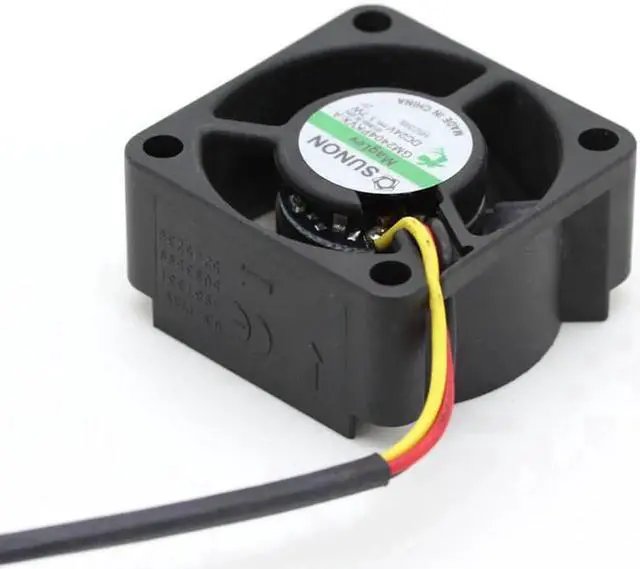

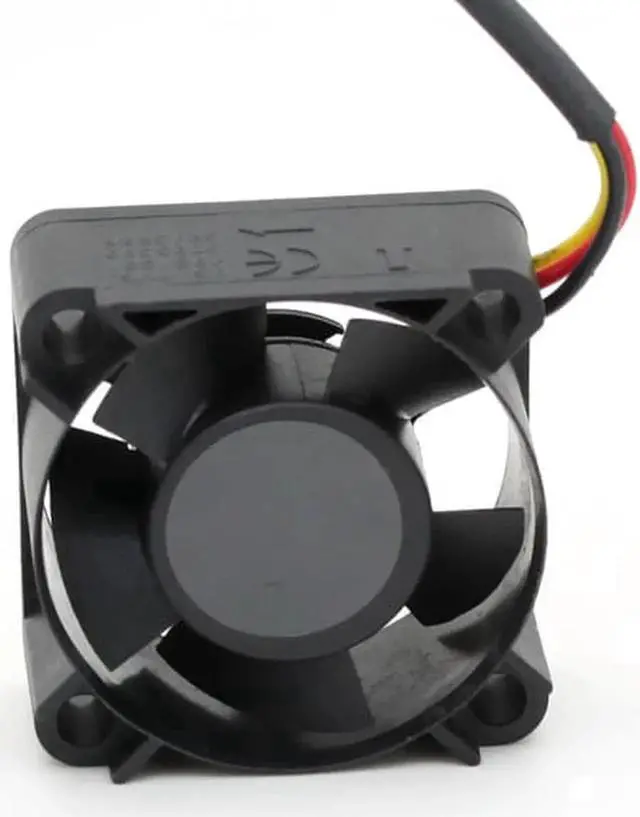

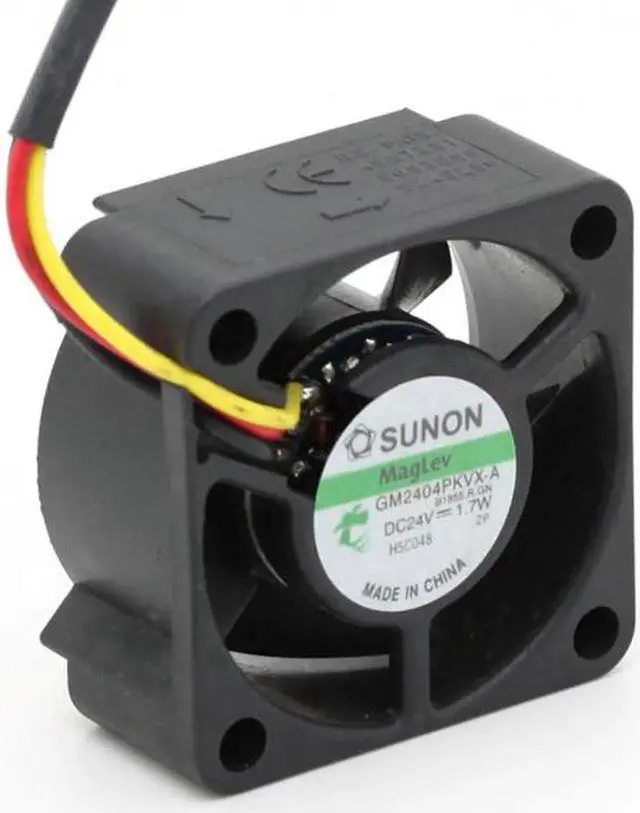

NEW original SUNON GM2404PKVX-A 24V 1.7W 4cm 4020 4*4*2CM 40*40*20MM cpu cooler heatsink axial Cooling Fan
- Dimensions: 40 × 40 × 20mm
- Rated voltage: DC24V
- Voltage Range : DC 7.0V - 26.6V
- Input Power: 1.7W
- Rated speed: 8200 r. p. m.
- for Temperature range: -10.. 70 °C
- Life expectancy: L10 expected life of 50, 000 hours at 25 ° C
- Bearings: Maglev Hypro bearing
- Rotation: wind discharged from the stent, the face of the rotor counterclockwise rotation
- Wiring: + Red - Black Yellow(speed)
- Maximum air flow: 10.8CFM
- Motor Protection: Wrong level protection and stall protection locks flow
- Minimum pressure : 0.. 40Pa
- Noise indicators : 32.0 dB ( A )
- Material: Glass fiber reinforced plastic, PBT housing, PA leaves
- Function Description : electronically commutated external rotor DC fans, for the complete electronic parts
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dimensions: 40 × 40 × 20mm
Rated voltage: DC24V
Voltage Range: DC 7.0V - 26.6V
Input Power: 1.7W
Rated speed: 8200 r. p. m.
for Temperature range: -10.. 70 °C
Life expectancy: L10 expected life of 50, 000 hours at 25 ° C
Bearings: Maglev Hypro bearing
Rotation: wind discharged from the stent, the face of the rotor counterclockwise rotation
Wiring: + Red - Black Yellow (speed)
Maximum air flow: 10.8CFM
Motor Protection: Wrong level protection and stall protection locks flow
Minimum pressure: 0.. 40Pa
Noise indicators: 32.0 dB ( A )
Material: Glass fiber reinforced plastic, PBT housing, PA leaves
Function Description: electronically commutated external rotor DC fans, for the complete electronic parts
