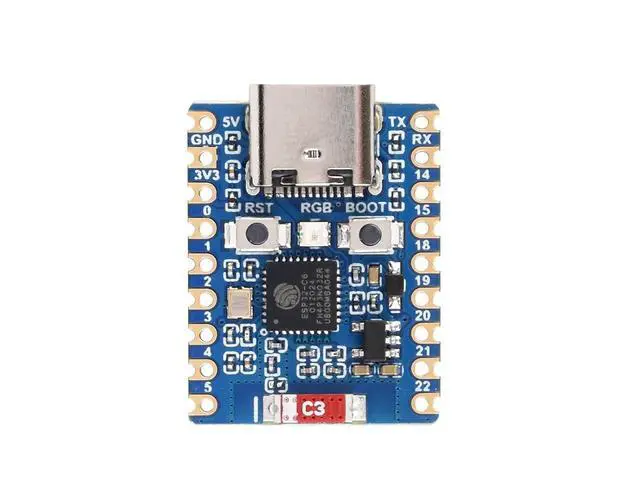

Waveshare ESP32-C6 Mini Development Board, Based On ESP32-C6FH8, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board
- Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
- Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 8MB Flash memory

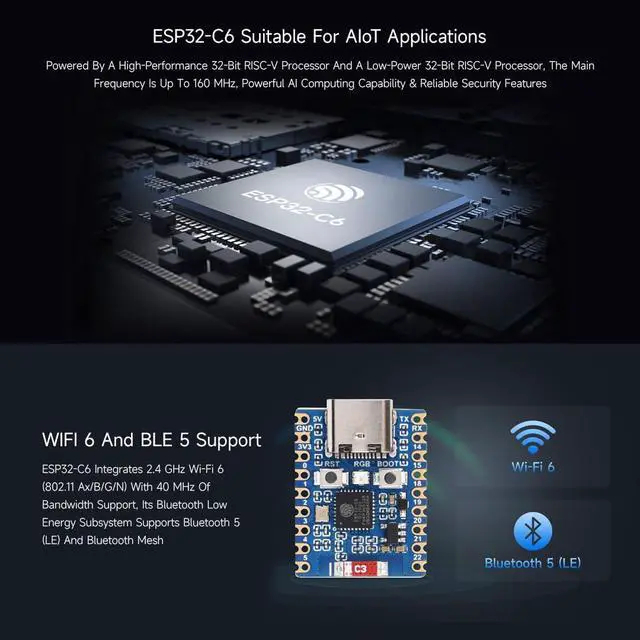

- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance

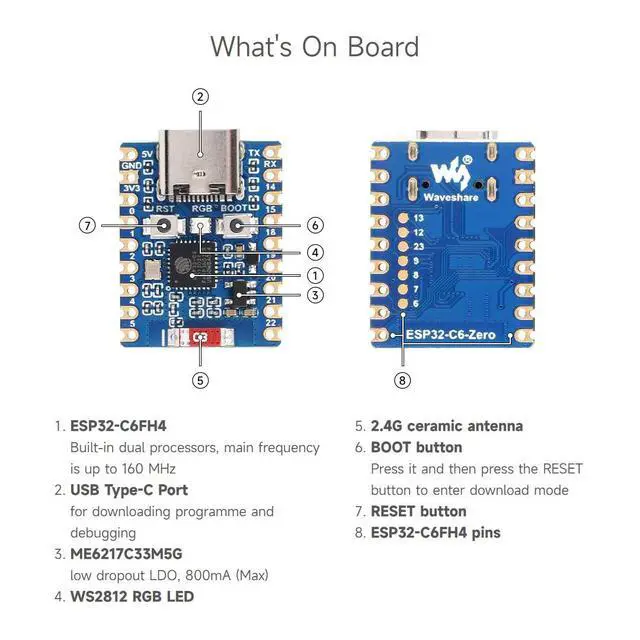

- Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 8MB Flash memory
Integrated 2.4GH z Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions
Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 8MB Flash memory
Integrated 2.4GH z Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions
