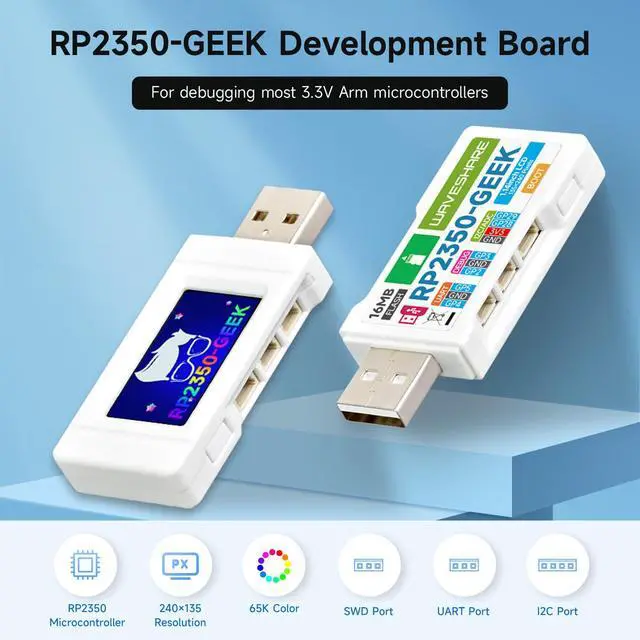

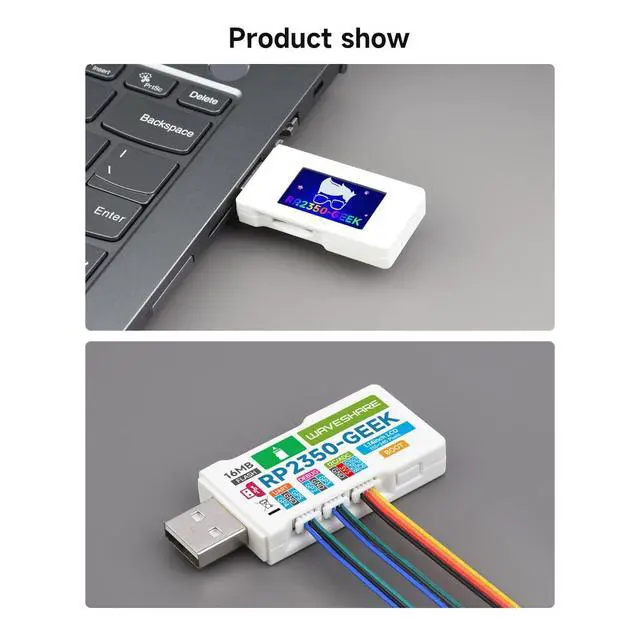

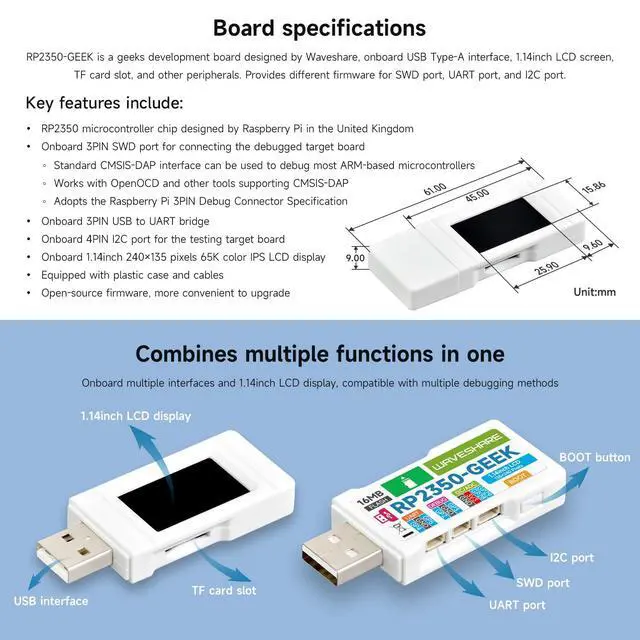

Waveshare RP2350-GEEK Development Board, Based On RP2350 Microcontroller, with 1.14inch 65K Color LCD, USB Debugging Downloader, with White Plastic Case
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom

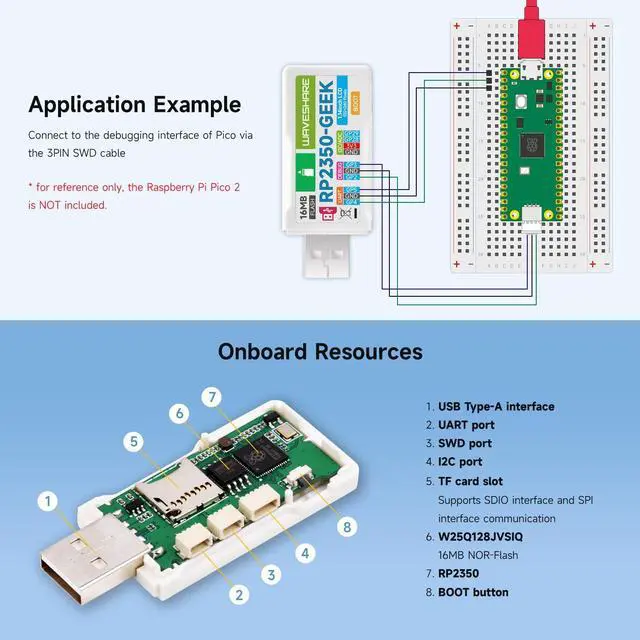

- Onboard 3PIN SWD port for connecting the debugged target board Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers Works with OpenOCD and other tools supporting CMSIS-DAP Adopts the Raspberry Pi 3PIN Debug Connector Specification
- Onboard 3PIN USB to UART bridge Onboard 4PIN I2C port for the testing target board

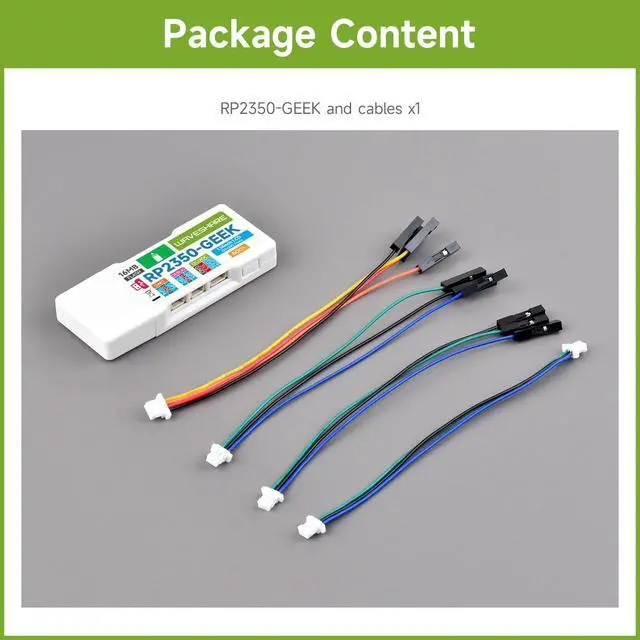

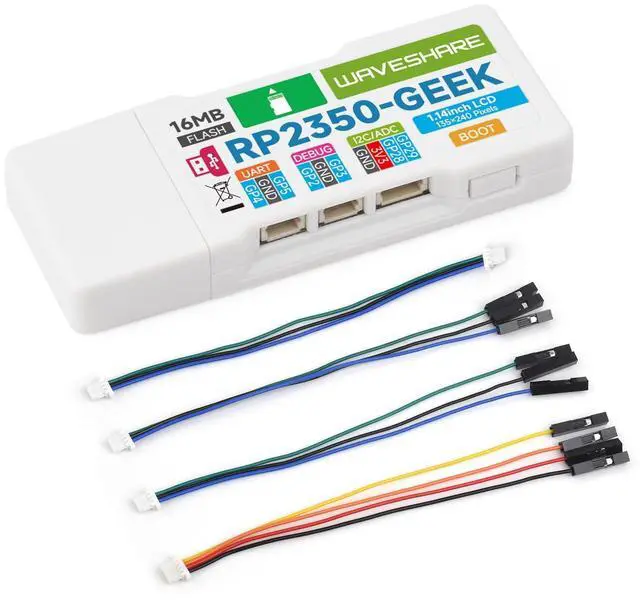

- Onboard 1.14inch 240×135 pixels 65K color IPS LCD display Equipped with plastic case and cables
- Open-source firmware, more convenient to upgrade
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
Onboard 3PIN SWD port for connecting the debugged target board Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers Works with OpenOCD and other tools supporting CMSIS-DAP Adopts the Raspberry Pi 3PIN Debug Connector Specification
Onboard 3PIN USB to UART bridge Onboard 4PIN I2C port for the testing target board
Onboard 1.14 inch 240×135 pixels 65K color IPS LCD display Equipped with plastic case and cables
Open-source firmware, more convenient to upgrade
Onboard 3PIN SWD port for connecting the debugged target board Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers Works with OpenOCD and other tools supporting CMSIS-DAP Adopts the Raspberry Pi 3PIN Debug Connector Specification
Onboard 3PIN USB to UART bridge Onboard 4PIN I2C port for the testing target board
Onboard 1.14 inch 240×135 pixels 65K color IPS LCD display Equipped with plastic case and cables
Open-source firmware, more convenient to upgrade
