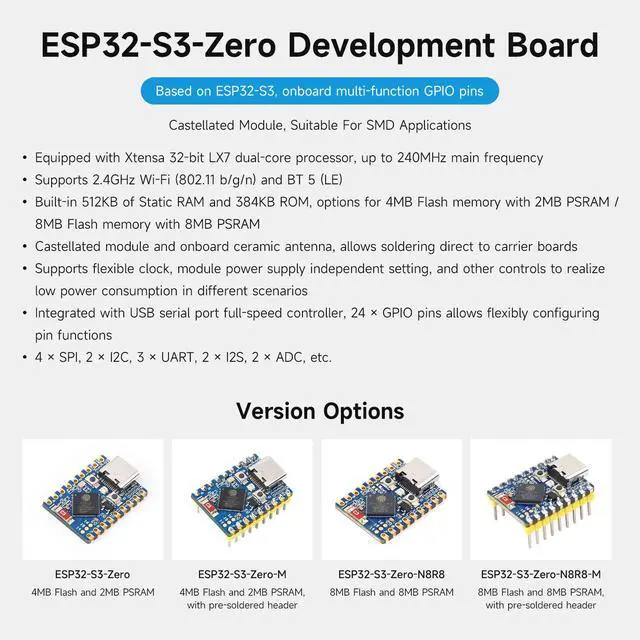

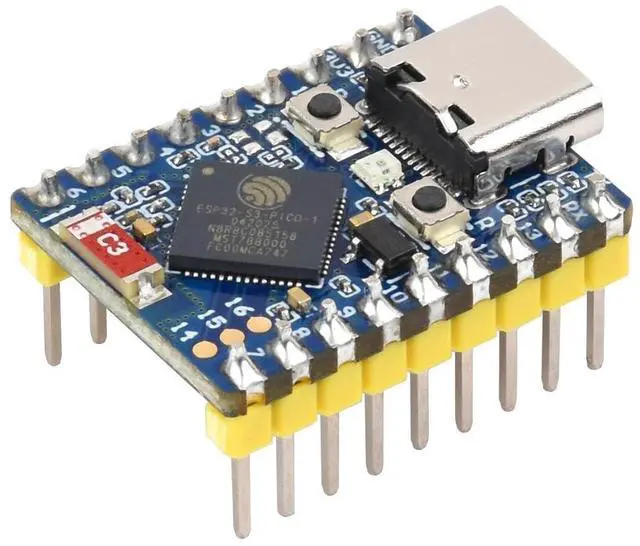

Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5, with Pre-soldered Headers
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
- Built-in 512KB of Static RAM and 384KB ROM, options for 4MB Flash memory with 2MB PSRAM / 8MB Flash memory with 8MB PSRAM
- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

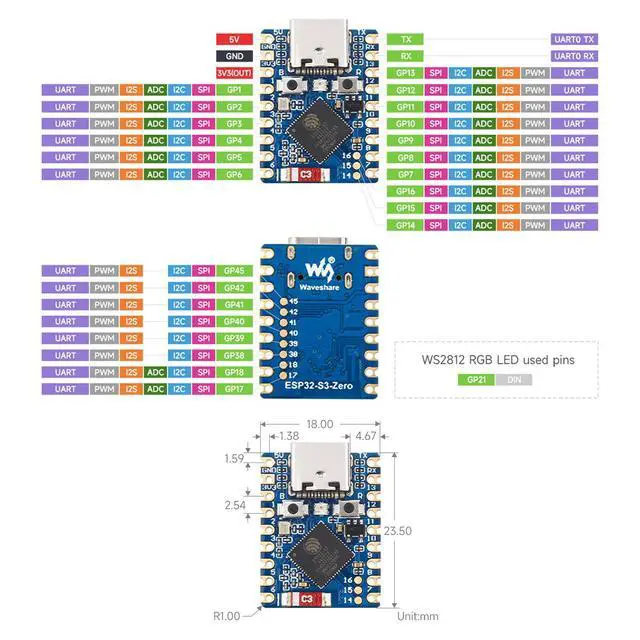

- Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions. 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE)
Built-in 512KB of Static RAM and 384KB ROM, options for 4MB Flash memory with 2MB PSRAM / 8MB Flash memory with 8MB PSRAM
Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions. 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
Built-in 512KB of Static RAM and 384KB ROM, options for 4MB Flash memory with 2MB PSRAM / 8MB Flash memory with 8MB PSRAM
Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions. 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
