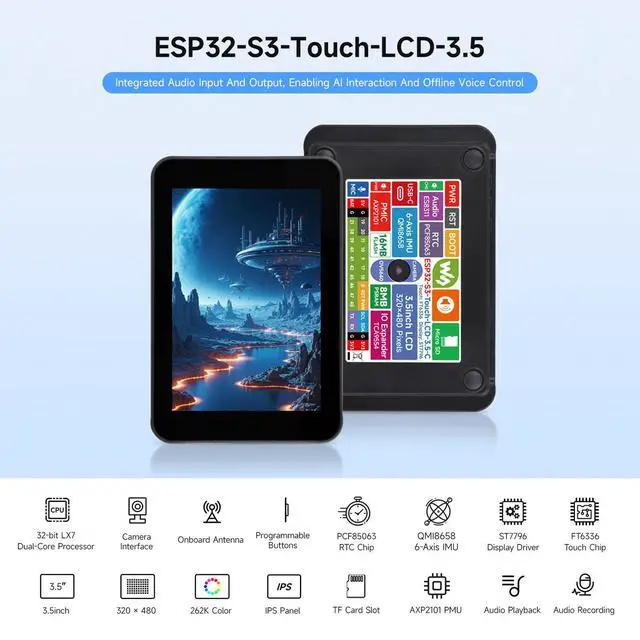

Waveshare ESP32-S3 3.5inch Capacitive Touch Display, 320x480 IPS, 262K Colors, Camera Interface, Supports Wi-Fi & Bluetooth 5, ESP32 Development Board with Display

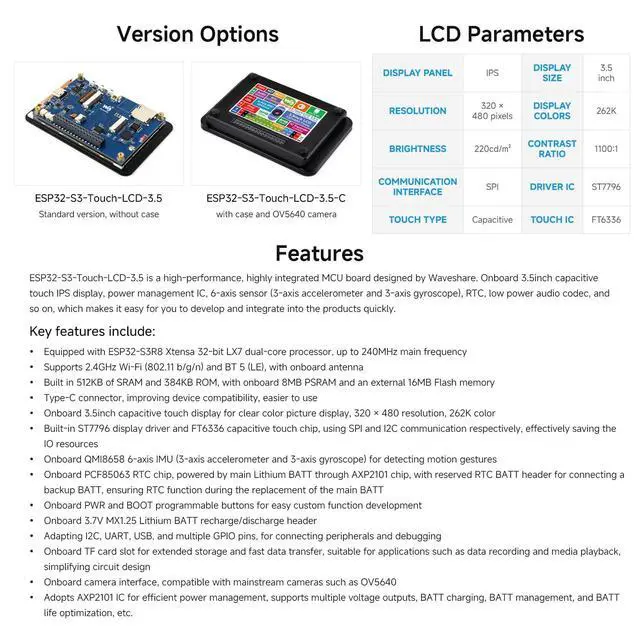

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

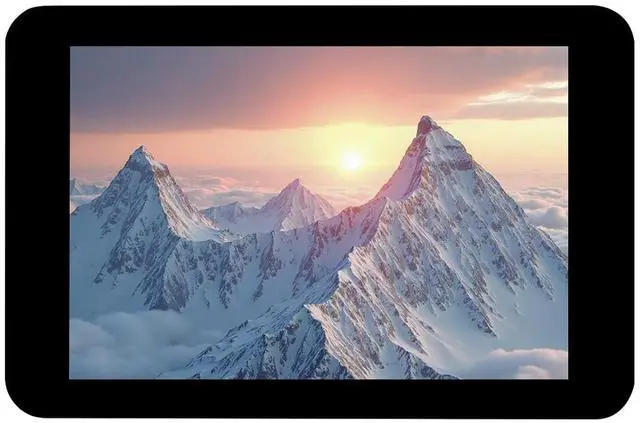

Type-C connector, improving device compatibility, easier to use Onboard 3.5 inch capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery

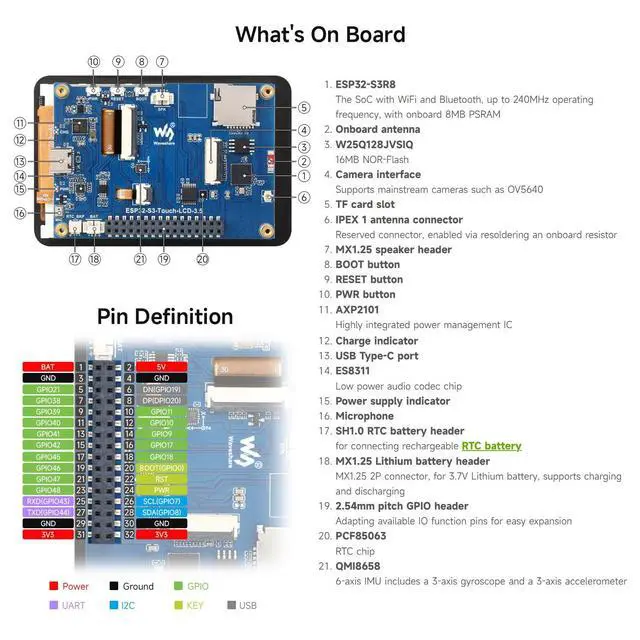

Onboard PWR and BOOT programmable buttons for easy custom function development Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design Onboard camera interface, compatible with mainstream cameras such as OV5640 Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and batte
