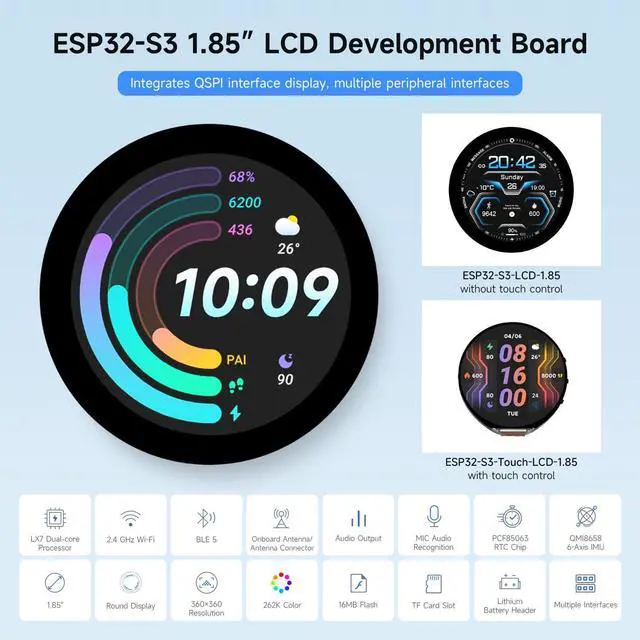

Waveshare ESP32-S3 1.85inch Round Display Development Board 360×360, 32-Bit LX7 Dual-Core Processor, Up to 240MHz Frequency, Supports Wi-Fi & BLE 5, Accelerometer and Gyroscope Sensor, Without Touch
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

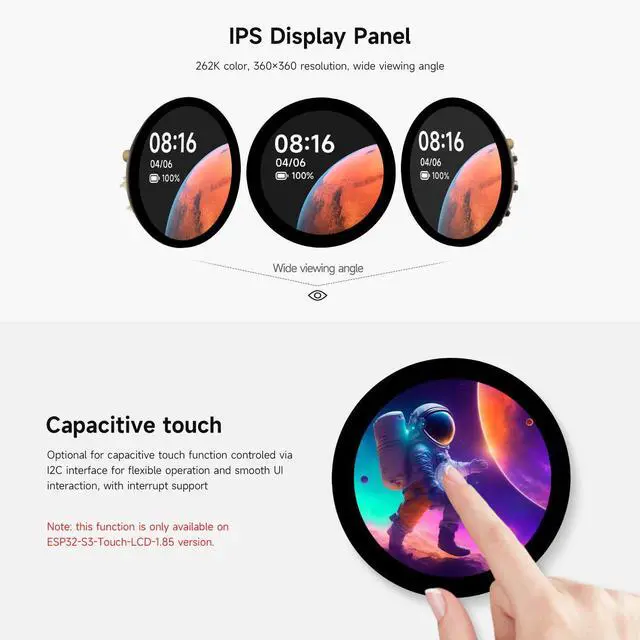

- Onboard 1.85inch LCD display, 360×360 resolution, 262K color. Optional for capacitive touch function controled via I2C interface, with interrupt support

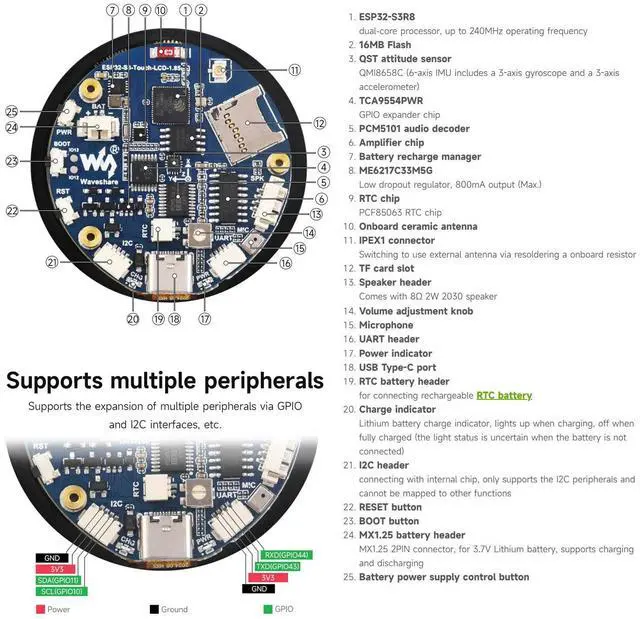

- Adapting UART, I2C and some IO interfaces. Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
- Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 1.85 inch LCD display, 360×360 resolution, 262K color. Optional for capacitive touch function controled via I2C interface, with interrupt support
Adapting UART, I2C and some IO interfaces. Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 1.85 inch LCD display, 360×360 resolution, 262K color. Optional for capacitive touch function controled via I2C interface, with interrupt support
Adapting UART, I2C and some IO interfaces. Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
