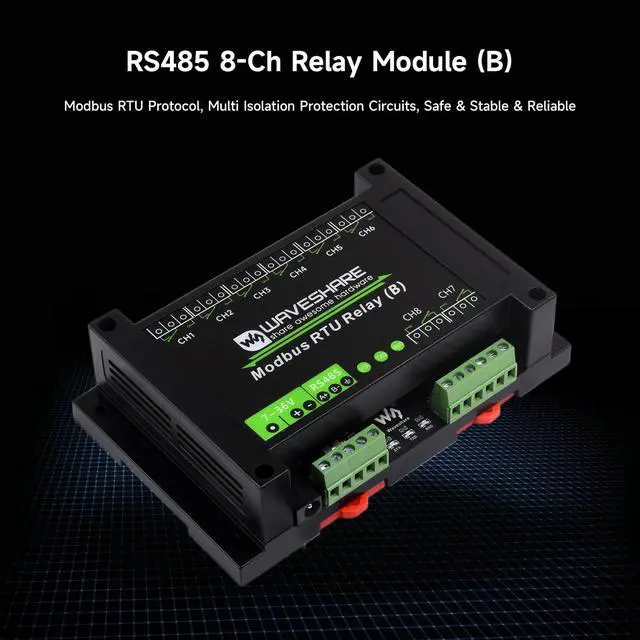

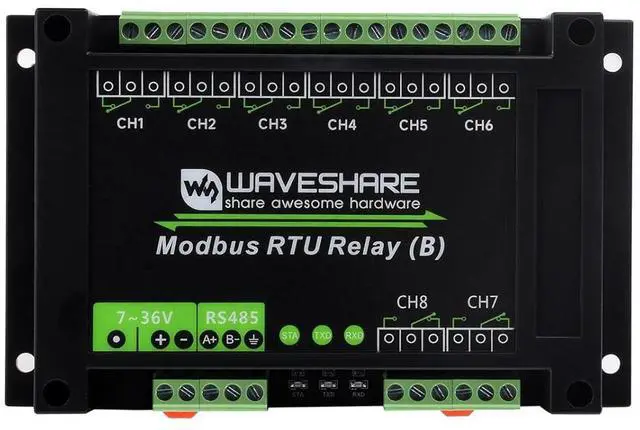

Waveshare Industrial Modbus RTU 8-Ch Relay Module (B) with RS485 Interface, Multi Isolation Protection Circuits, 7~36V Power Supply

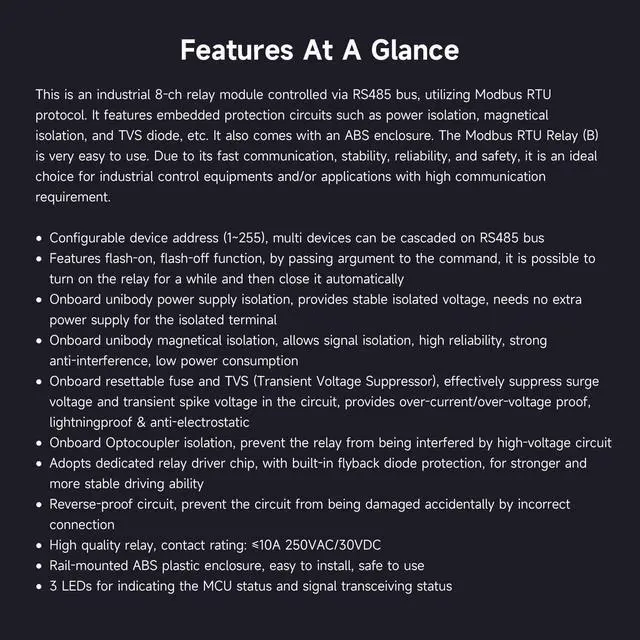

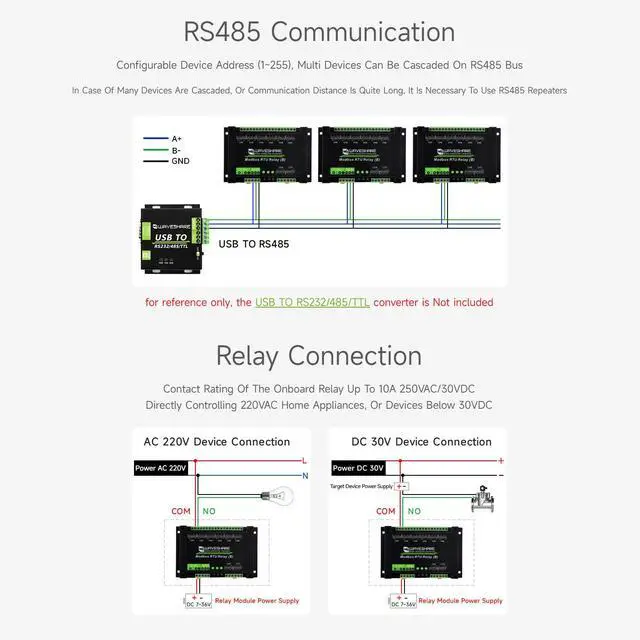

Configurable device address (1~255), multi devices can be cascaded on RS485 bus
Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically

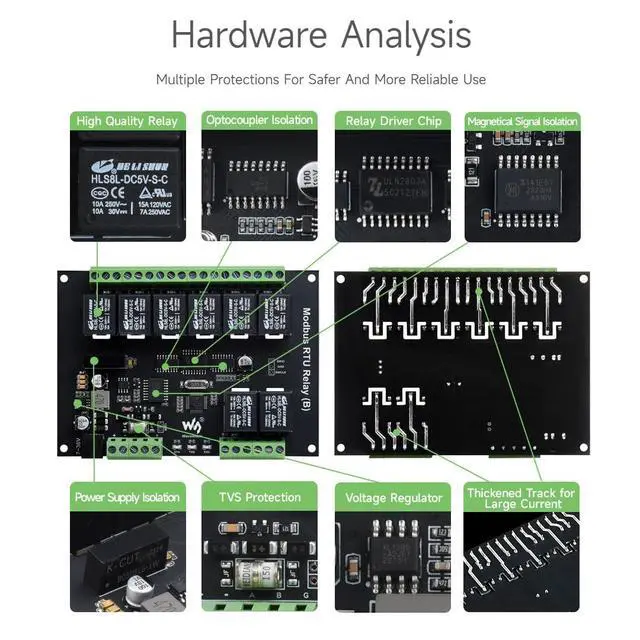

Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
High quality relay,
contact rating: 10A 250VAC/30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use. 3 LEDs for indicating the MCU status and signal transceiving status
