$85.08
Ships from China.
Meet Your Seller

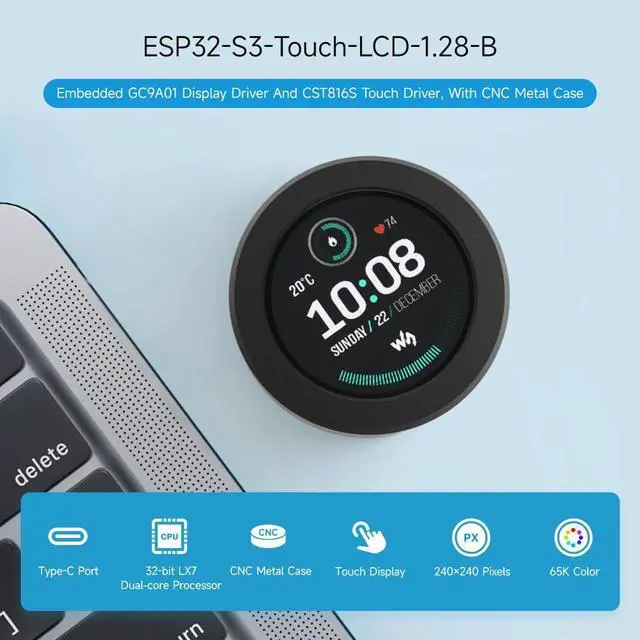

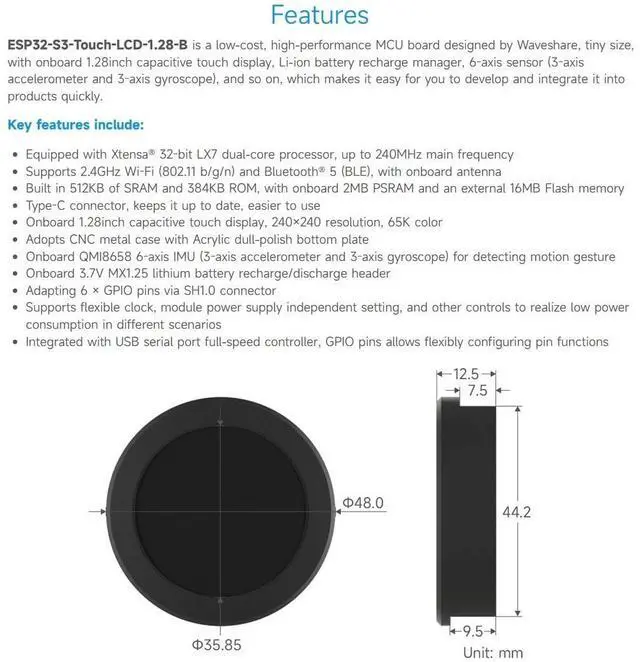

Waveshare ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact Size, Accelerometer and Gyroscope Sensor, Embedded GC9A01 Display Driver and CST816S Touch Driver, with CNC Metal Case

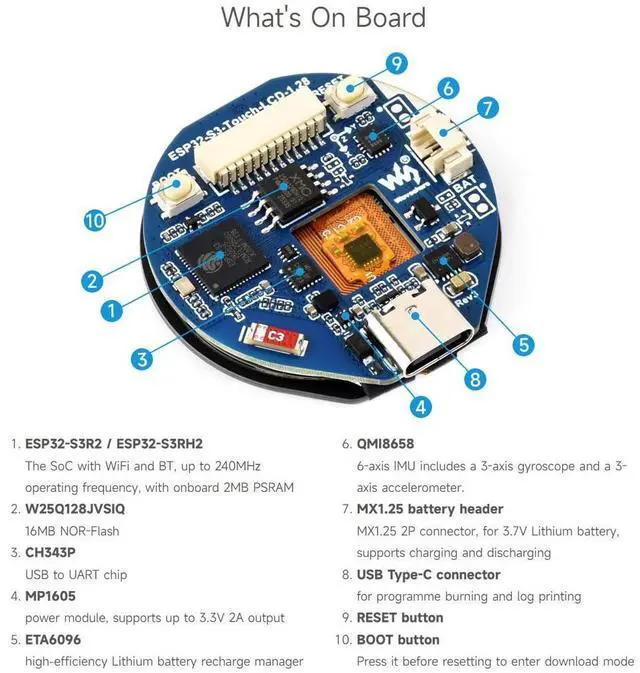

- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
- Adopts CNC metal case with Acrylic dull-polish bottom plate Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
- Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

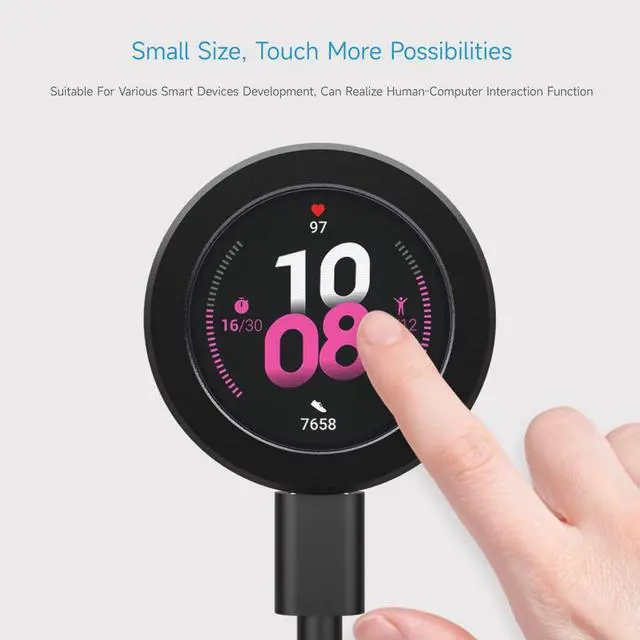

Type-C connector, keeps it up to date, easier to use Onboard 1.28 inch capacitive touch display, 240×240 resolution, 65K color
Adopts CNC metal case with Acrylic dull-polish bottom plate Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH 1.0 connector. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
Type-C connector, keeps it up to date, easier to use Onboard 1.28 inch capacitive touch display, 240×240 resolution, 65K color
Adopts CNC metal case with Acrylic dull-polish bottom plate Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH 1.0 connector. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Zhiyi Technology Return Policy
