Waveshare ESP32-S3 1.8inch AMOLED Touch Display, Embedded with SH8601 Display Driver and FT3168 Capacitive Touch Chip,32-bit LX7 Dual-core Processor, 368×448 Pixels, Comes with 3.7V MX1.25 Li Battery

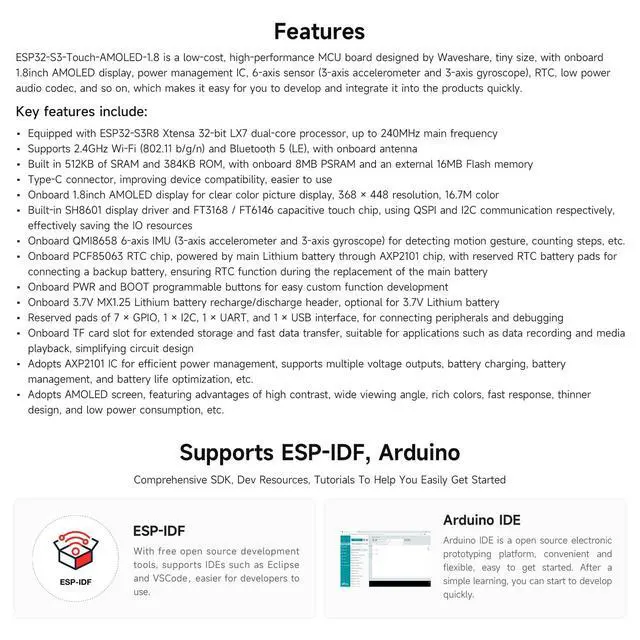

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

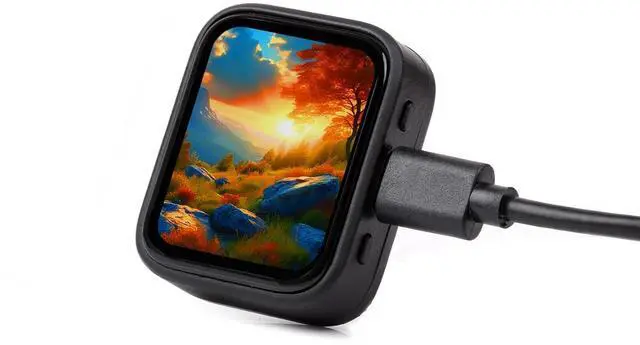

Type-C connector, improving device compatibility, easier to use. Onboard 1.8 inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources

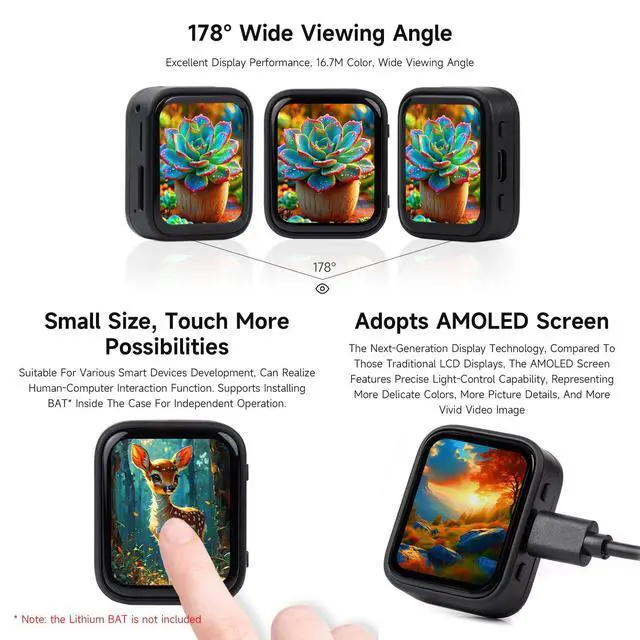

Onboard 1.8 inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources

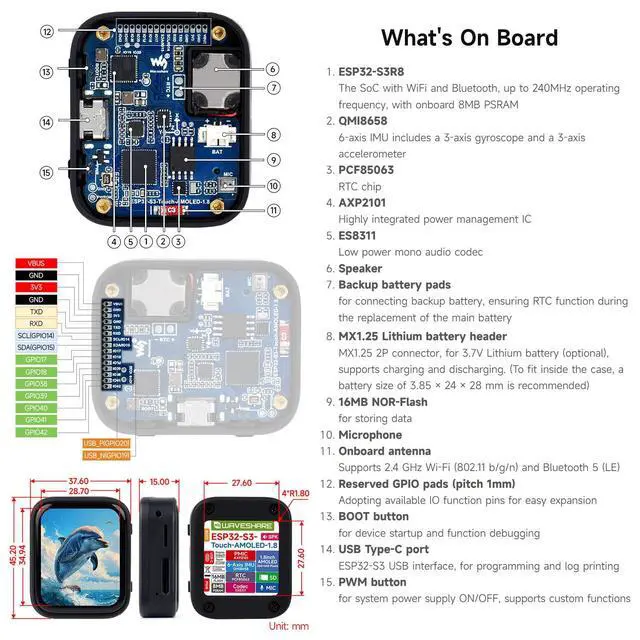

Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads for connecting a backup battery, ensuring RTC function during the replacement of the main battery. Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header, optional for 3.7V Lithium battery. Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging. Onboard TF card slot for extended storage and fas
