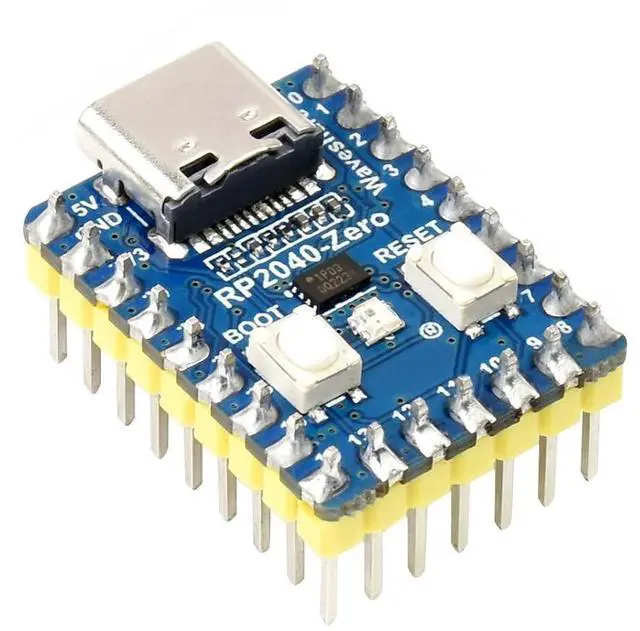

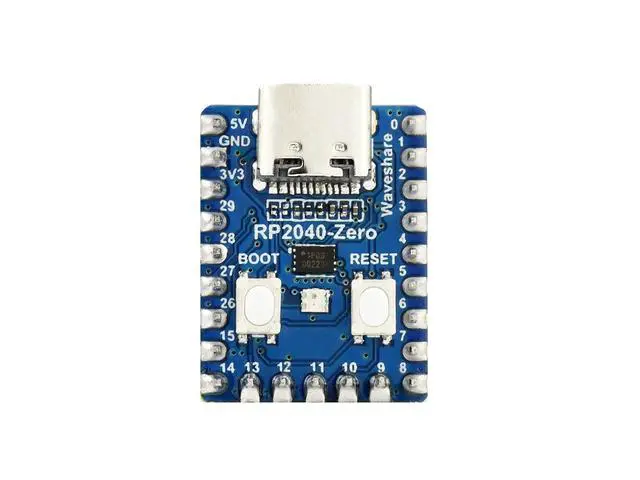

Waveshare RP2040-Zero A Low-Cost High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040 Castellated Module Suitable for SMD Applications with Pre-soldered Header
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory. USB-C connector, keeps it up to date, easier to use
- Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes

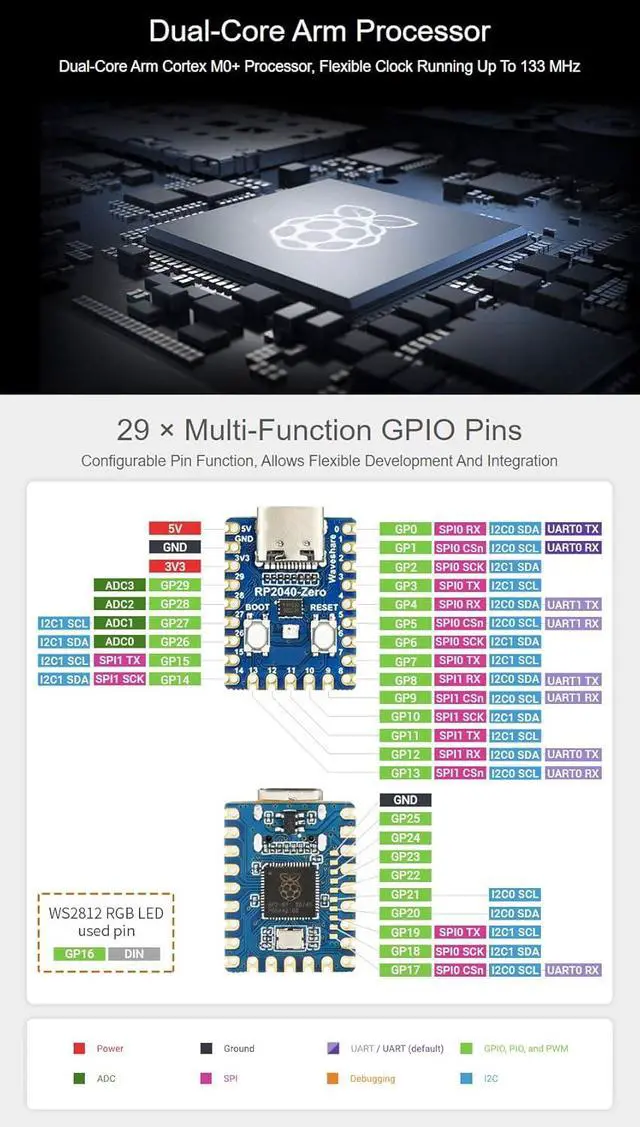

- Drag-and-drop programming using mass storage over USB. 29 × multi-function GPIO pins (20× via edge pinout, others via solder points). 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory. USB-C connector, keeps it up to date, easier to use
Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB. 29 × multi-function GPIO pins (20× via edge pinout, others via solder points). 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support
264KB of SRAM, and 2MB of on-board Flash memory. USB-C connector, keeps it up to date, easier to use
Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB. 29 × multi-function GPIO pins (20× via edge pinout, others via solder points). 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support
