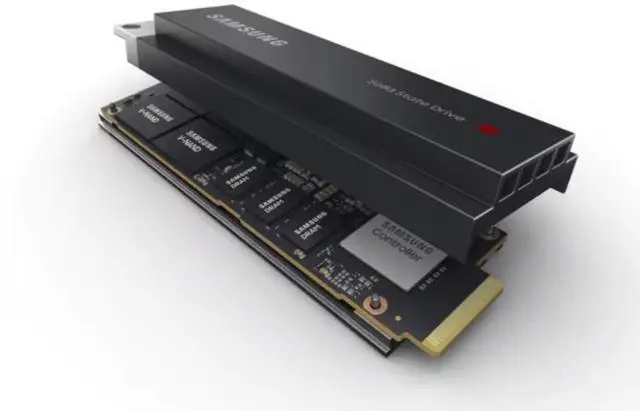

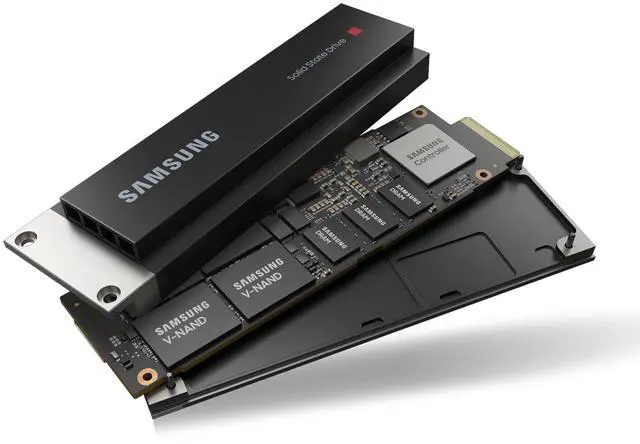

SAMSUNG PM9D3a MZTL67T6HBLC-00AW7 7.68TB E1.S(9.5mmT) PCI Express Gen.5 x4 SSD

Capacity: 7.68TB
Features
PCI Express Gen. 5
PCI Express CEM Specification Rev. 5.0
PCI Express Base Specification Rev. 5.0
NVM Express Specification Rev. 2.0
Single port x4 lanes
Enhanced Power-Loss Data Protection
End-to-End Data Protection
Support SSD Enhanced S. M. A. R. T. Feature Set
Hardware based AES-XTS 256-bit Encryption Engine
Static and Dynamic Wear Leveling
RoHS / Halogen-Free Compliant
TCG Opal 2.02 Compliant
OCP 2.5 compliant
Drive Configuration
Form Factor: E1. S( 9.5 mmT)
Interface: PCI Express Gen. 5 x4
Bytes per Sector: 512 (default), 520, 4096, 4160 Bytes
Performance Specifications)
Data Transfer Rate (128KB data size):
Sequential Read: Up to 12, 000 MB/s
Sequential Write: Up to 6, 800 MB/s
Data I/O Speed (4KB data size,
Sustained):
Random Read: Up to 2, 000K IOPS
Random Write: Up to 300K IOPS
Latency (Sustained workload):
Random Read/ Write (typical): Up to 65/9 us
Sequential Read/ Write (typical): Up to 9/9 us
Drive Ready Time (typical): 2s
Reliability

Specifications

Uncorrectable Bit Error Rate: 1 sector per 10^17 bits read
MTBF: 2, 500, 000 hours
Endurance (JEDEC Workload): 1 DWPD
TBW (JEDEC Workload): 14, 016 TB
Data Retention: 3 months
Environmental

Specifications

Temperature:
Operating: 0 ~ 70 °C
Non-operating: -40 ~ 85 °C
Humidity (non-condensing): 5 ~ 95%
Linear Shock ( 0.5 ms duration with 1/2 sine wave): Non-operating: 1, 500 G
Vibration (20 ~ 2,
000 Hz,
Sinusoidal): Non-operating: 20G
Power Requirements: Supply Voltage / Tolerance: 12V+/-10%
Power Consumption
Active: Read: 15.0 W; Write: 17.0 W
Idle (typ. ): Up to 4.5 W
Physical

Specifications

Width: 33.75 +/- 0.25 mm
Length: 118.75 +/- 025mm
Height: 9.50 +/- 0.35 mmT
Weight: Avg. 66.0 g
