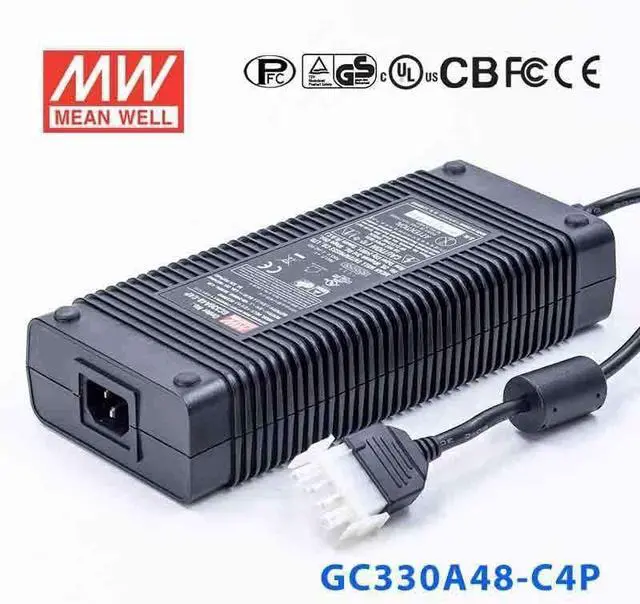

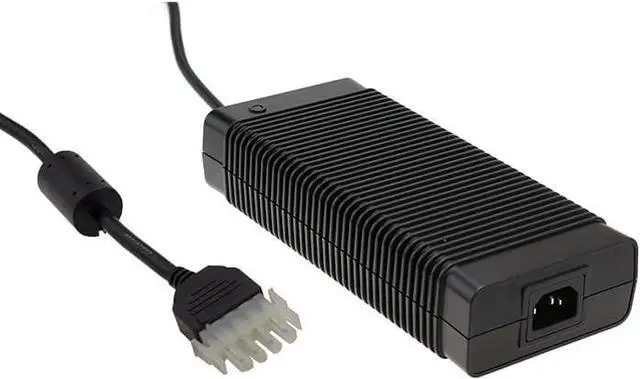

Mean Well GC330A48-C4P Portable Chargers 261.1W 54.4V 4.8A - Green Adaptor
- 261.1W LED Power Supply - Delivers 54.4VDC output at up to 4.8A, ideal for LED strips, signage, and industrial lighting applications
- Universal AC Input (90-264VAC) - Power Factor Correction with wide input voltage range for worldwide compatibility
- NON_WATERPROOF Rated Waterproof Design - Suitable for outdoor and wet-location installations, operates reliably from -30°C to 60°C (-22°F to 140°F)
- Safety Certified - CB, CE, cUL, EAC, FCC, TUV listed for reliable and compliant operation worldwide
- Compact and Lightweight - Only 220 x 95 x 46mm (8.7 x 3.7 x 1.8 in) and 1.25kg (2.76 lbs), easy to install in tight spaces
- Mean Well Quality - Backed by a 2-Year manufacturer warranty, from the world's leading power supply brand
- Complete Documentation Available - Full specification sheet and technical data provided; Mean Well products trusted by engineers and installers globally
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features Universal AC input / Full range Built-in active PFC function Protections: Short circuit / Overload / Over voltage / Over Temp. No load power consumption <0.5W 2 color LED indicator for charging status 3 pole AC inlet IEC320-C14 Class I power (with earth pin) Fully enclosed plastic case Approvals:TUV/UL/CUL/CB/FCC/CE 2 years warranty General Specification AC input voltage range 90~264VAC;127~370VDC AC inrush current Cold start, 120 at 230VAC Over voltage protection 105%~135% Shut down and latch off o/p voltage, re-power on to recover Withstand voltage I/P-O/P: 3kVAC Working temperature -30~+60°C (refer to derating curve) Safety standards UL60950-1,TUV EN60950-1 approved EMC standards EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 Dimension (LxWxH) 220 x 95 x 46 mm Packing 12pcs / 16kg
