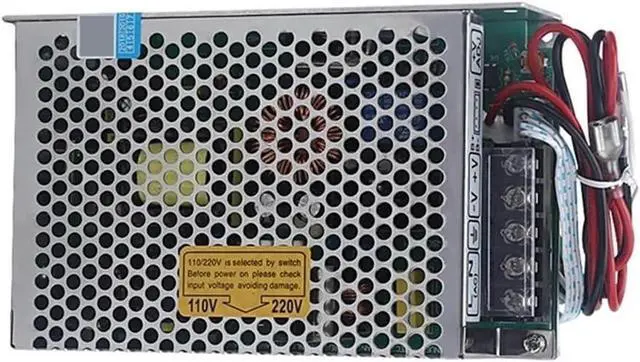

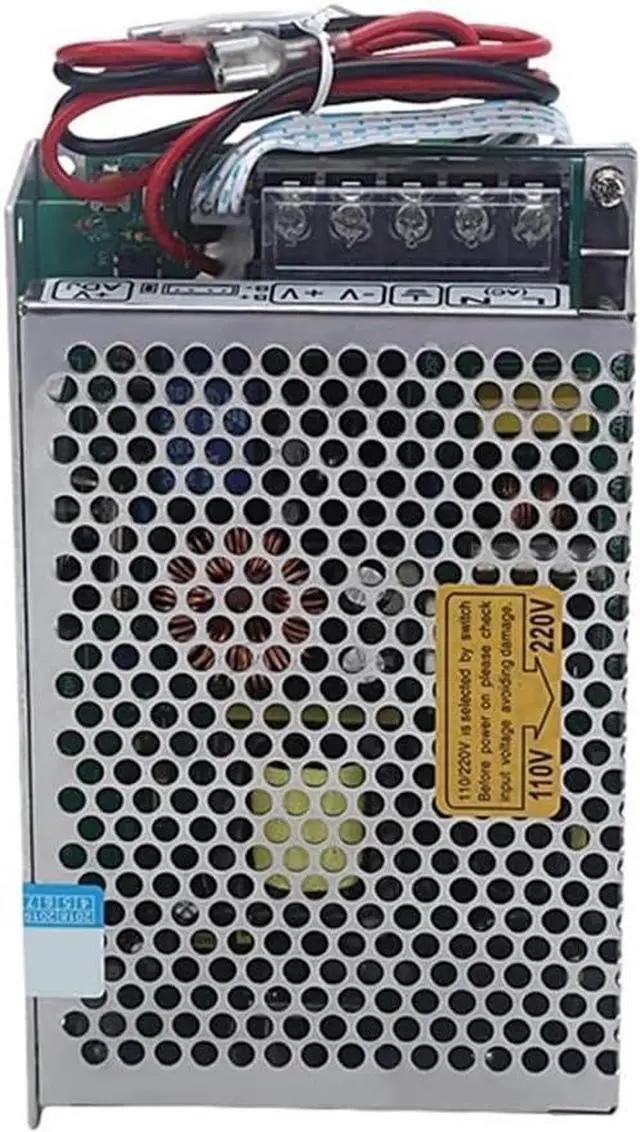

Charge Function Switching UPS Switching Power Supply Module 12V 24V 120W with UPS Charge Function AC 110/220V to DC 12V 24V Battery Charger Power Board(12V)
- Small volume,low weight,high efficiency. Protections:short circuit/over load.
- Long-term floating on the battery charge, high efficiency, battery fullness can reach more than 90%. Mains/battery automatic switching, no switching time, no human duty.
- Full self-stop, to prevent the battery overcharge, effectively extend the battery life.
- Automatically switch to battery power after power failure.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Model: 12V/24V
DC voltage: 13.8V/27.6V
Rated current: 8A/4A
Current range: 0~8A/0~4A
Rated power1: 17.1W/118.4W
Ripple&noise 120mvpp180mvpp
DC voltage: 11.3~14.9V/21.3~29.8V
Voltage range: 90~264VAC,127~370VDC
Frequency: 47~63HZ
AC current: 2.8A/115VAC,1.4A/230VAC
Inrush current: cold start current 30A/1 15VAC 50A/230VAC
Leakage current: 1mA/240VAC
Size: 159*97*38mm (L*W*H)
Model: 12V/24V
DC voltage: 13.8V/27.6V
Rated current: 8A/4A
Current range: 0~8A/0~4A
Rated power1: 17.1W/118.4W
Ripple&noise 120mvpp180mvpp
DC voltage: 11.3~14.9V/21.3~29.8V
Voltage range: 90~264VAC,127~370VDC
Frequency: 47~63HZ
AC current: 2.8A/115VAC,1.4A/230VAC
Inrush current: cold start current 30A/1 15VAC 50A/230VAC
Leakage current: 1mA/240VAC
Size: 159*97*38mm (L*W*H)
