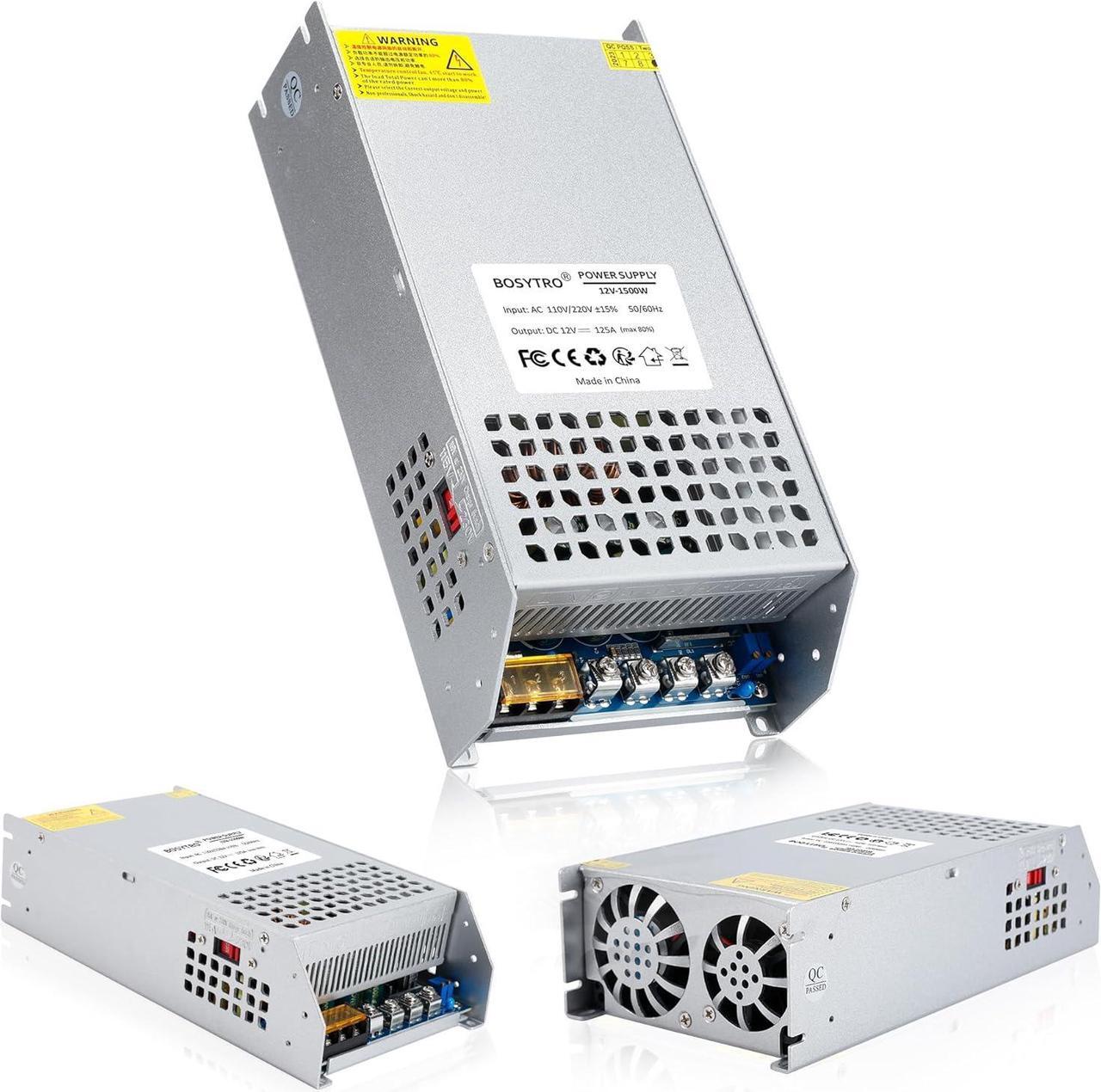

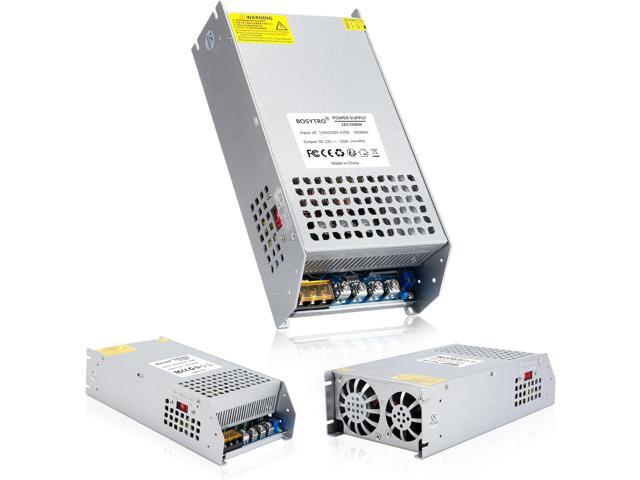

12V 125A 1500W DC Switching Power Supply Adapter PSU AC 110V / 220V-DC 12V Transformer Adapter, for 3D Printer,CCTV Camera Security System, Computer Project of Industrial Power Supplies
- Universal ACPower LED Driver; output power 12V 125A 1500W , output current depends on the requirements of power consuming devices, provides different current/wattage for multiple devices (peak power is not equal to maximum load current/power).

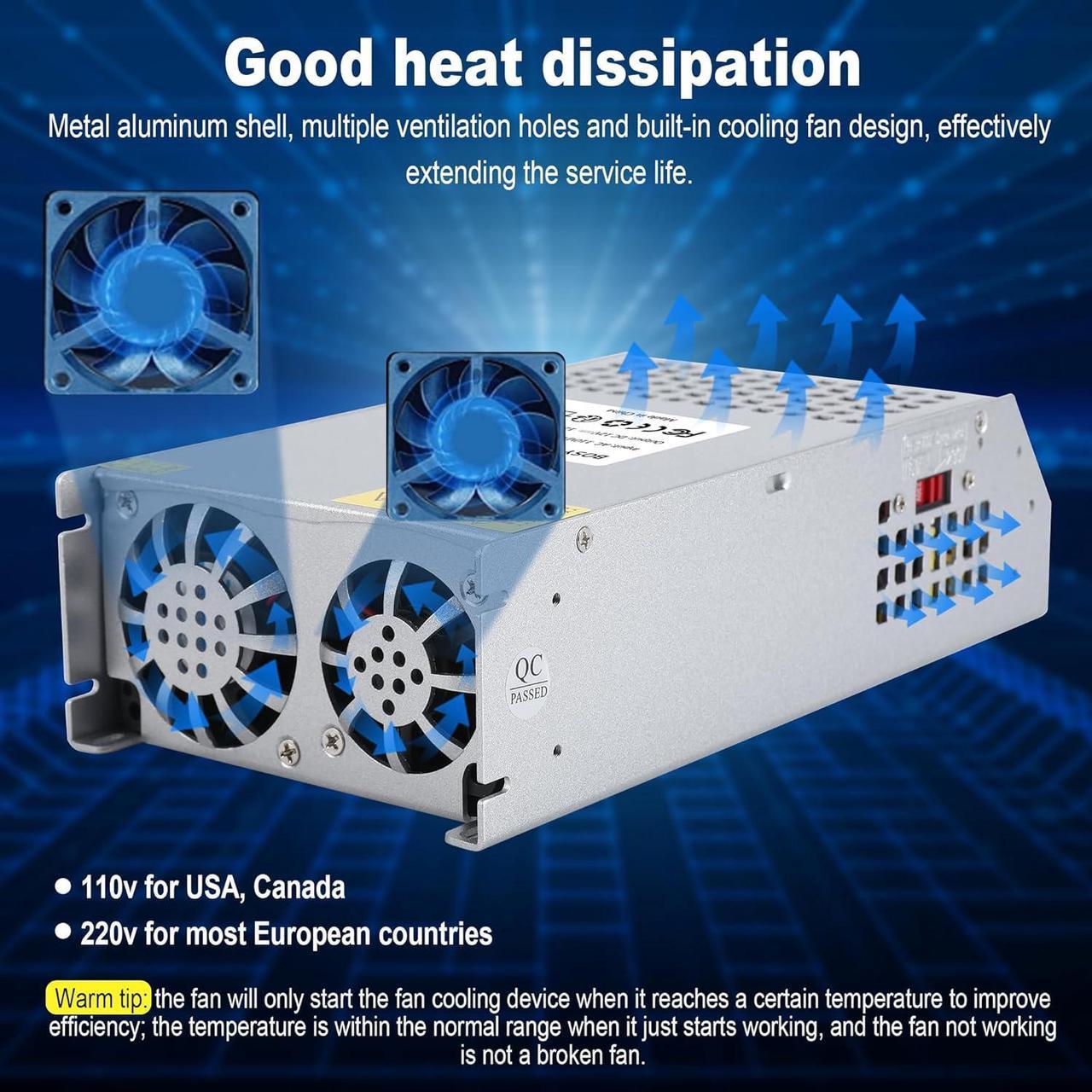

- High Quality12v Power Supply, High quality flux material and multiple ventilation holes, the matt aluminium housing provides good heat dissipation and has a built-in status indicator for easy operation and use.
- Safety CertificationUniversal Regulated Switching Rigorous testing before leaving the factory, stable performance long service life; RoHS/CE/LVD/EMC safety certification; Lead-free process, in accordance with environmental protection RoHS requirements.
- Wide Application Range12Volt Industrial Transformer Converter Extensive used in DC 12V home appliances, electronic devices, LED lighting, progressive motors, CCTV, brushless motors, automation devices, computer projects, etc.
- Multi-protectionSwitching Power Supply intelligent
+
+
Overview
Specs
Reviews
BOSYTRO Multi-model power supply to meet your usage needs.
Previous page

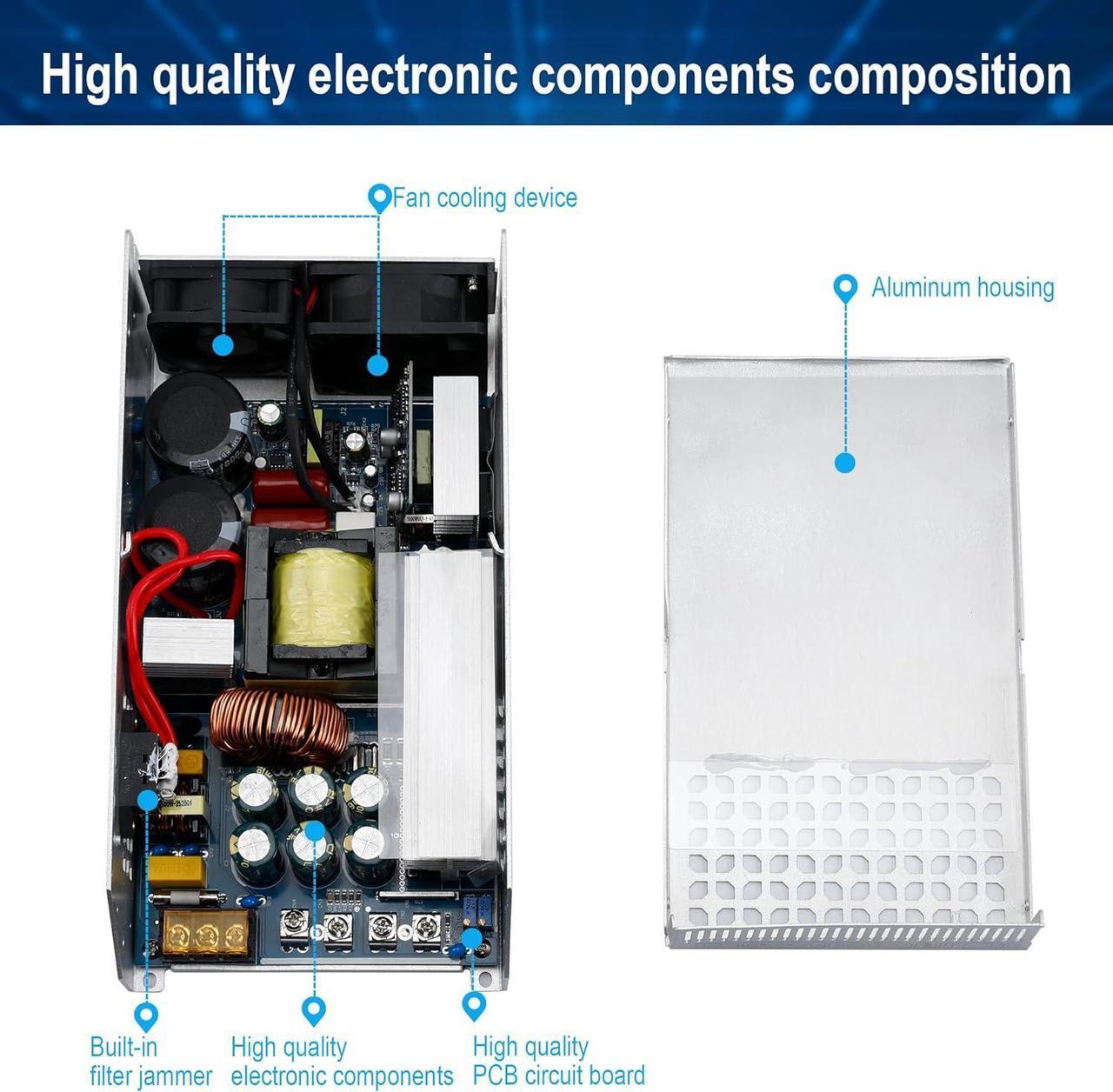

Next page Switching power supply features: high quality components, high reliability, built-in filter, effective anti-interference. High quality flux material and multiple ventilation holes, aluminum housing, built-in intelligent induction fan, good heat dissipation performance.

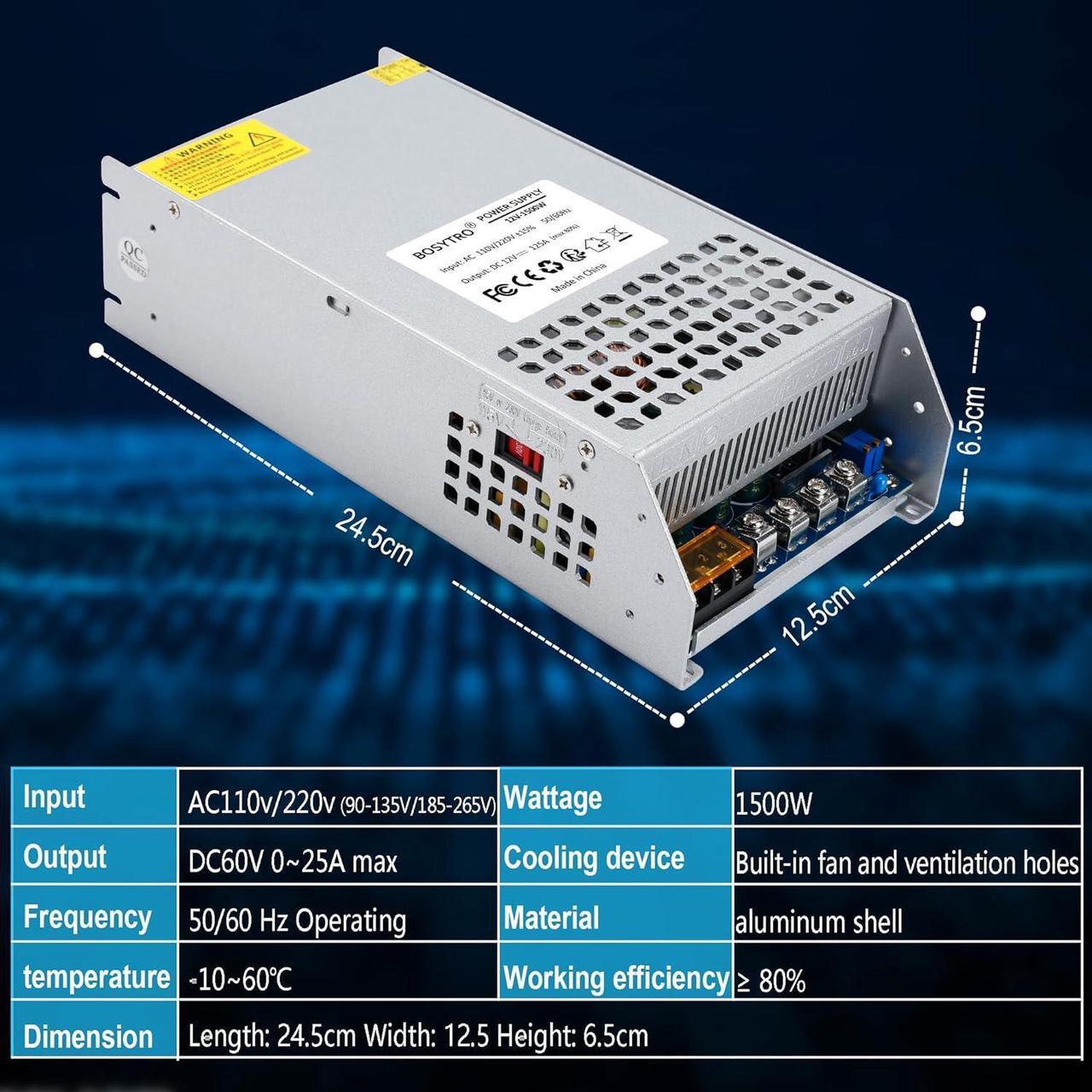

Power Supply Parameters
Output voltage: 12V/24V/36V/48V/60V (DC Adjustable voltage range: +/-10%)
Current range: 0~125A (can be calculated according to the voltage and rated power of the transformer)
Rated power: 360W/480W/600W/800W/1000W/1200W/1500W
Input voltage: AC110V/220V (85-145V /185-265V)
Please change the appropriate voltage on the side of the power supply before use
Voltage opening difference: +/-1%.
Working efficiency > 80%.
Operating frequency is: 50-60Hz
Temperature coefficient: ±0.03% / (0 ~ 50 )
Operating temperature, working humidity: -10+60, 20%90%RH
Storage temperature, storage humidity: -20+85,10%95%RH

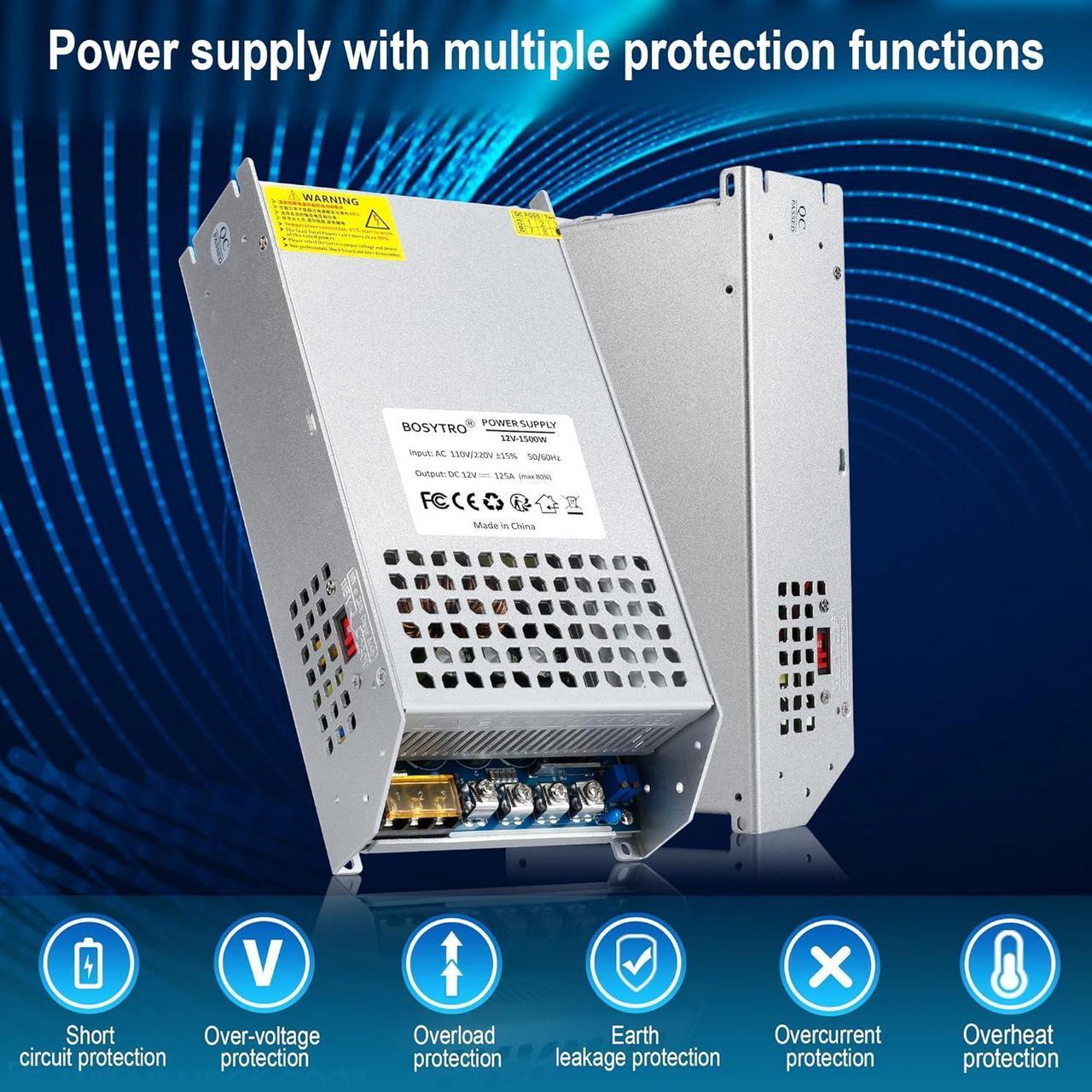

Switching power supply insulation performance is good, high electrical strength, with short circuit, overload, overvoltage, protection function; for your use of safety escort!
Cautions:
1. The actual power is 80% of the rated power of the power supply (example: If the power of your device is 800 watts, you need to buy a power supply of 1000 watts or more). Indoor use, the power supply is not waterproof The power supply has a built-in intelligent cooling fan, which works with sound, which is a normal phenomenon.
2. In order to avoid interference from filtering, the power supply and the equipment need to maintain a distance of more than 3m.
3. Please do not use any equipment overload to avoid damage to the equipment.
4. Need to consider the operating environment temperature of the switching power supply, and the presence of additional auxiliary cooling equipment, in too high a ring temperature switching power supply need to reduce the amount of output. (If the power of your equipment is 800 watts, you need to buy a power supply of 1000 watts or more). Indoor use, the power supply is not waterproof Power supply built-in intelligent cooling fan, working with sound, this is a normal phenomenon.
Multi-Model Power Supplies How did we get our start? Why do we love what we do? How do we do, if there's some issue with product? AC 110V/220V to DC 12/24V 600W AC/DC Adjustable Voltage 600W Adjustable Voltage Current600W ACto DC 36V-60V Power Supply 1200W/1500W High Power Supply 12V-60V 1200W Power Supply 12V-48V 1000W Power Supply 12V/24V 800W Power Supply BOSYTRO Switching Power Supply Multi-protection function
Previous page
Next page Switching power supply features: high quality components, high reliability, built-in filter, effective anti-interference. High quality flux material and multiple ventilation holes, aluminum housing, built-in intelligent induction fan, good heat dissipation performance.
Power Supply Parameters
Output voltage: 12V/24V/36V/48V/60V (DC Adjustable voltage range: +/-10%)
Current range: 0~125A (can be calculated according to the voltage and rated power of the transformer)
Rated power: 360W/480W/600W/800W/1000W/1200W/1500W
Input voltage: AC110V/220V (85-145V /185-265V)
Please change the appropriate voltage on the side of the power supply before use
Voltage opening difference: +/-1%.
Working efficiency > 80%.
Operating frequency is: 50-60Hz
Temperature coefficient: ±0.03% / (0 ~ 50 )
Operating temperature, working humidity: -10+60, 20%90%RH
Storage temperature, storage humidity: -20+85,10%95%RH
Switching power supply insulation performance is good, high electrical strength, with short circuit, overload, overvoltage, protection function; for your use of safety escort!
Cautions:
1. The actual power is 80% of the rated power of the power supply (example: If the power of your device is 800 watts, you need to buy a power supply of 1000 watts or more). Indoor use, the power supply is not waterproof The power supply has a built-in intelligent cooling fan, which works with sound, which is a normal phenomenon.
2. In order to avoid interference from filtering, the power supply and the equipment need to maintain a distance of more than 3m.
3. Please do not use any equipment overload to avoid damage to the equipment.
4. Need to consider the operating environment temperature of the switching power supply, and the presence of additional auxiliary cooling equipment, in too high a ring temperature switching power supply need to reduce the amount of output. (If the power of your equipment is 800 watts, you need to buy a power supply of 1000 watts or more). Indoor use, the power supply is not waterproof Power supply built-in intelligent cooling fan, working with sound, this is a normal phenomenon.
Multi-Model Power Supplies How did we get our start? Why do we love what we do? How do we do, if there's some issue with product? AC 110V/220V to DC 12/24V 600W AC/DC Adjustable Voltage 600W Adjustable Voltage Current600W ACto DC 36V-60V Power Supply 1200W/1500W High Power Supply 12V-60V 1200W Power Supply 12V-48V 1000W Power Supply 12V/24V 800W Power Supply BOSYTRO Switching Power Supply Multi-protection function
