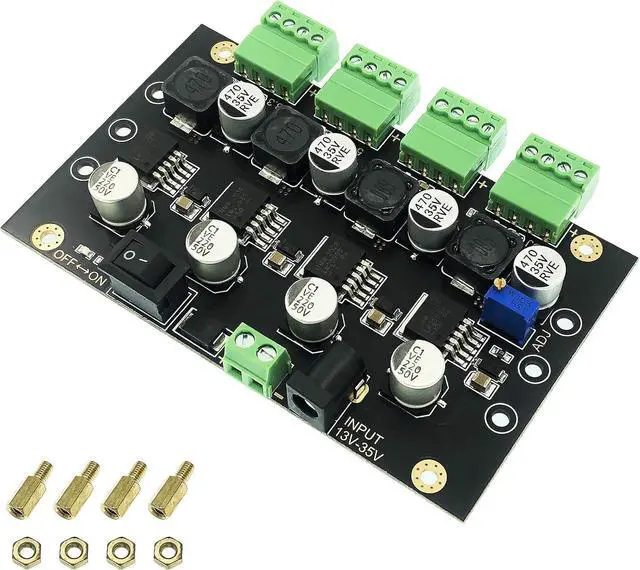

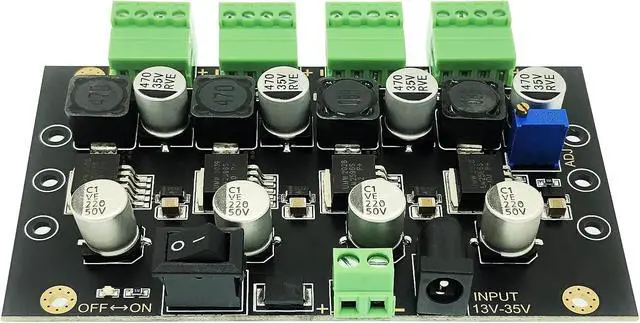

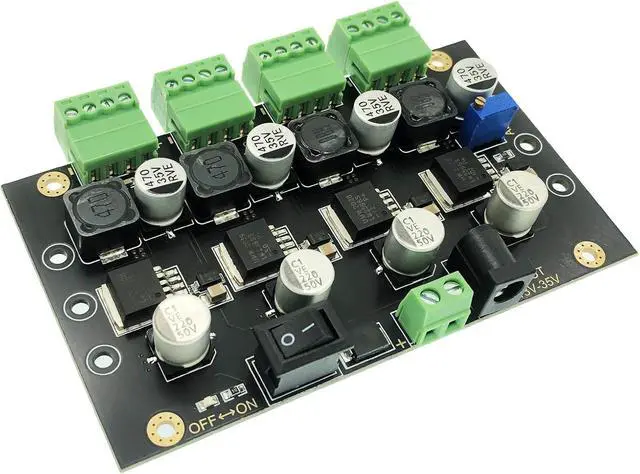

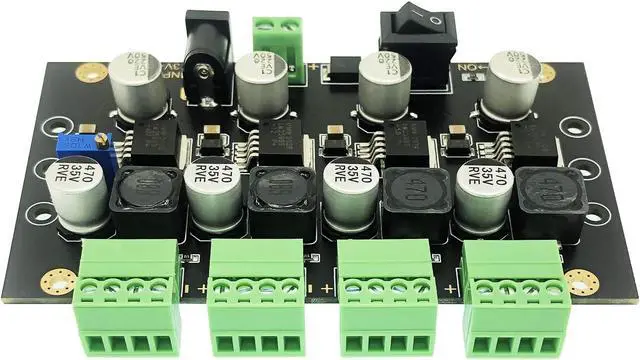

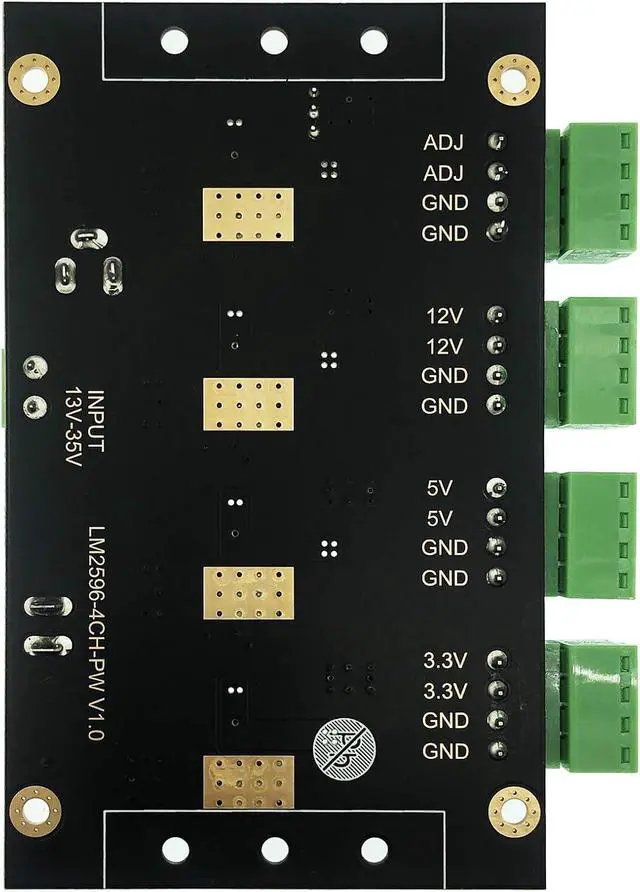

4 Channels LM2596 DC to DC Buck Converter Input 13-35V to 3.3V/5V/12/Adjustable Voltage Simultaneous Power Supply
Limited time offer, ends 07/12 By Glovibe Tech
- 4 Channels LM2596 DC to DC Buck Converter Input 13-35V to 3.3V/5V/12/Adjustable Voltage Simultaneous Power Supply
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

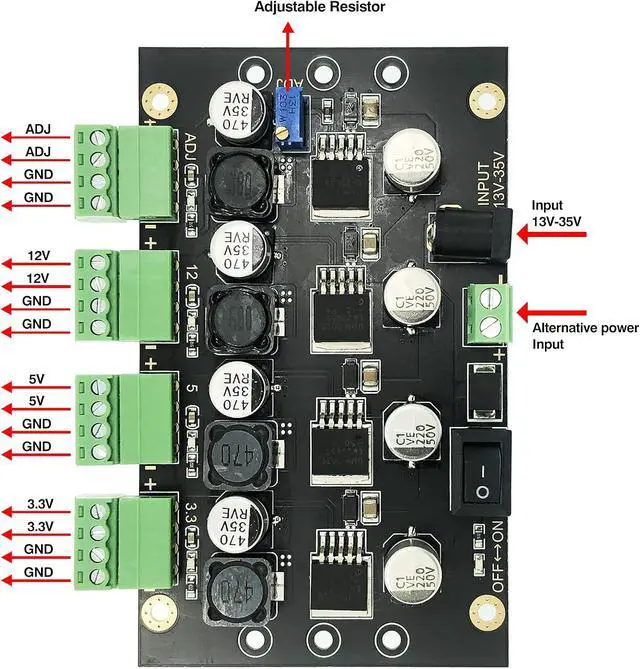

- 4 Channels4 channels voltage simultaneous output, On-board 4 PCS LM2596 chips. Support 3.3V, 5V, 12V and adjustable voltage.
- High Current OutputWhole board support total 8A maximum output load current and each power supply channel support 3A maximum output load current.
- Wide Input RangeSupport 13V~35V input. Its a step-down type module ,so input voltage must be 1 V higher than the output voltage, no boost.
- Flexible And Reliable DesignThermal design with PCB. On-board 4 x screw holes and 2 x DIN Rail holes, fit for 35mm DIN rail.
- High Quality ComponentHigh-Q inductors , Al capacitors and output LED indicator to make sure stable output voltage.
