Feature:
1. Support HDMI loop out;
2. Support input max resolution 4K/60Hz;
3. Support output max resolution 4K/60Hz;
4. Support USB video capture max resolution 1080P/60Hz;
5.
Support AWG26 HDMI standard cable: input up to 5 meters, output up to 5 meters;
6. Support most acquisition software, such as VLCOBS Amcap, etc;
7. Support WindowsAndroid and MacOS;
8. Conform to USB Video and UVC standard;
9. Conform to USB Audio UAC standard;
10. Compact and portable.
HDMI resolution: Max input/output can be 4K/60Hz.
Support video format: 8/10/12bit Deep color.
USB video capture format: YUVJPEG.
USB video capture resolution: Max output can be 1080P/60Hz.
Support audio format: L-PCM
Input cable distance: 5m, AWG26 HDMI standard cable
Output cable distance: 5m, AWG26 HDMI standard cable
Max working current: 0.7A /5VDC
Operating Temperature range: (-10 to +55)
Dimension (L x W x H): 59x56x19 (mm)
Weight: 52g
Connection and Operation

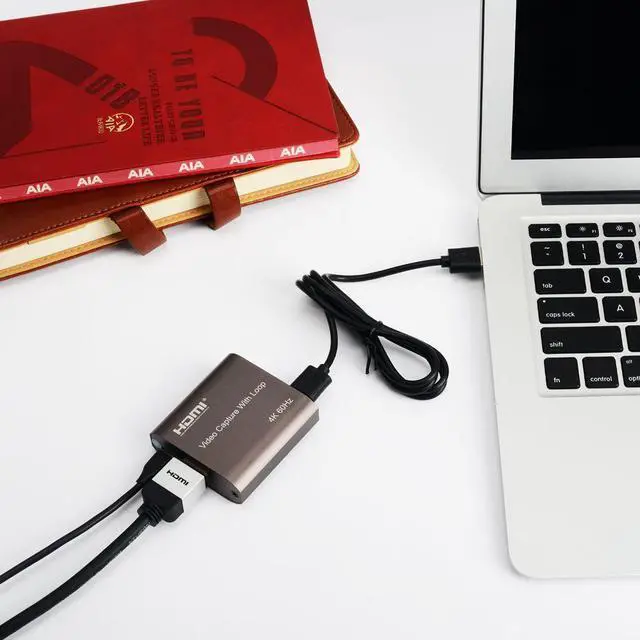

1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
2. Connect the display device to the HDMI output of the video capture with one HDMI cable.
3. Connect PC USB port to the USB output of the video capture with one USB cable.
4: Operation steps for
USB video capture (OBS): Open the softwareChoose sources of Video capture DeviceSet the size of imageChoose Studio Mode (double window)
Choose Start Recording.
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Run memory: 4G RAM

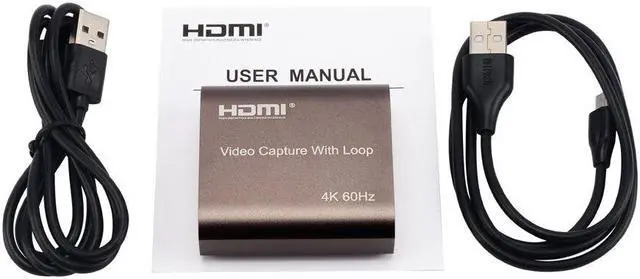

Packing List:
1 x Video Capture Card
