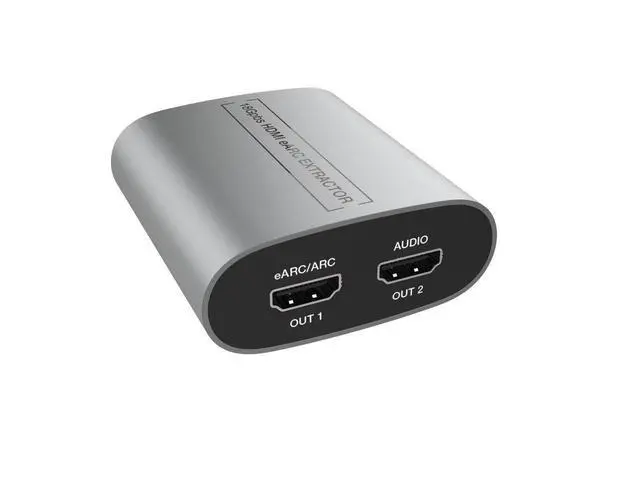

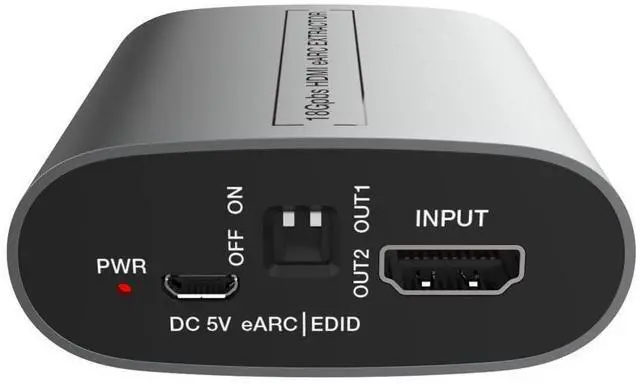

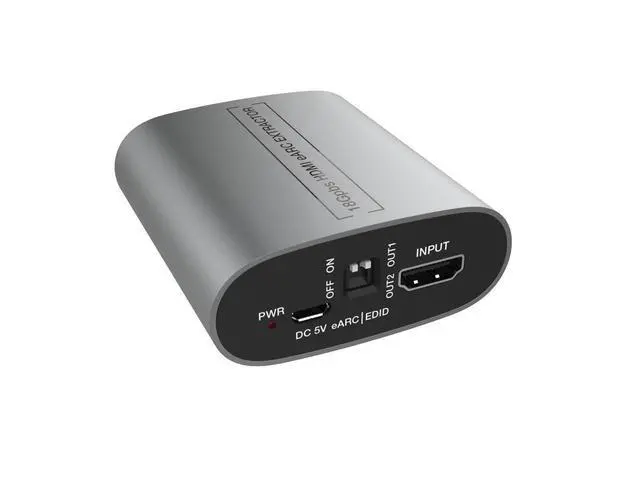

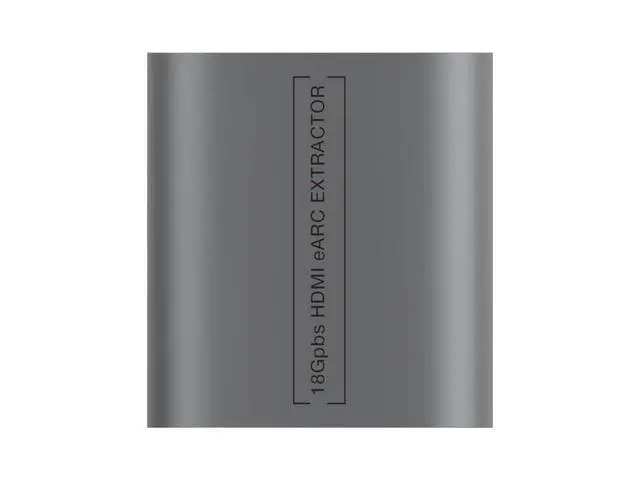

HDMI eARC Audio Extractor ARC eARC Loop & Audio Extractor HDMI 2.0 4K2K@60Hz 18Gbps Video Bandwidth EDID Management Splitters for Amplifier Soundbar Speaker HDTV eokCXOY
- The 18Gbps HDMI eARC audio extractor supports dedicated HDMI output for extracting audio only. It allows user to use the existing AV Receiver to receive 4K2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range) pass-through and eARC/ARC.
- HDMI 2.0b and HDCP 2.3 / 1.x compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
- Support VESA format up to QSXGA@60Hz HDR, HDR10, HDR10+,
- Dolby Vision pass-through
- Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital,Dolby digital plus, Dolby True-HD, Dolby Atmos,DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master,DTS:X
- Built-in Equalizer, Retiming and Driver
- Dedicated HDMI output for audio only with 720p black screen
- Support eARC/ARC audio (from TV) extract to HDMI audio output
- Support CEC function and advanced EDID management
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
18Gbps HDMI eARC Audio Extractor ARC eARC Loop & Audio Extractor HDMI 2.0 4K2K@60Hz EDID Management Splitters for Amplifier Soundbar Speaker HDTV
The 18Gbps HDMI eARC audio extractor supports dedicated HDMI output for extracting audio only. It allows user to use the existing AV Receiver to receive 4K2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range) pass-through and eARC/ARC.

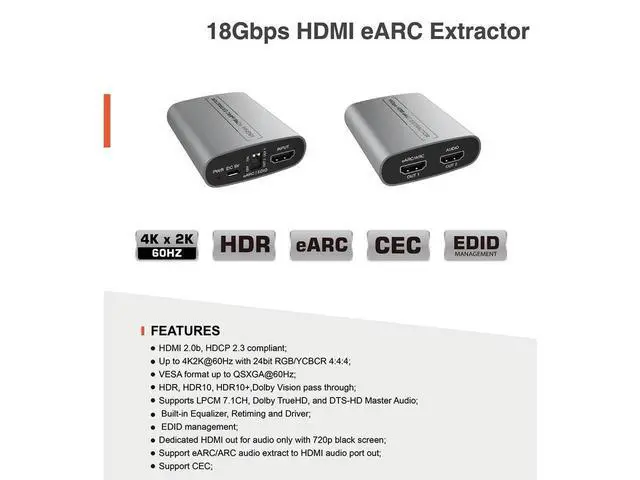

Features:
HDMI 2.0b and HDCP 2.3 / 1.x compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
Support VESA format up to QSXGA@60Hz HDR, HDR10, HDR10+,KEY_TAB
Dolby Vision pass-through
Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital,Dolby digital plus, Dolby True-HD, Dolby Atmos,DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master,DTS:X
Built-in Equalizer, Retiming and Driver
Dedicated HDMI output for audio only with 720p black screen
Support eARC/ARC audio (from TV) extract to HDMI audio output
Support CEC function and advanced EDID management
Specifications
Technical
HDMI Compliance:HDMI 2.0b
HDCP Compliance:HDCP 2.3 / 1.x
Video Bandwidth:18 Gbps
Video Resolution:Up to 4k2k@60Hz 4:4:4
Color Depth
8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit (4K2K@60Hz
YCbCr 4:2:2/4:2:0)
Color Space:RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
HDMI Audio Formats
PCM 2.0, LPCM 5.1 / 7.1,
Dolby Digital, Dolby Digital plus,
Dolby TrueHD, Dolby Atmos,
DTS 5.1, DTS ES 6.1, DTS HRA,
DTS HD Master, DTS:X
ESD Protection
Human body model ±8kV (air-gap discharge) &±4kV (contact discharge)
Connection
Input 1x HDMI Type A [19-pin female]
Output 2x HDMI Type A [19-pin female]
Housing Aluminium Enclosure
Color:Silver
Dimensions:65mm[W] x 70mm[D] x 27mm[H]
Weight:83g
Power Supply:USB 5V / 500mA
Power Consumption:1.75W (Max)
Operation:
Temperature 32 - 104°F / 0 - 40°C
Storage temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
