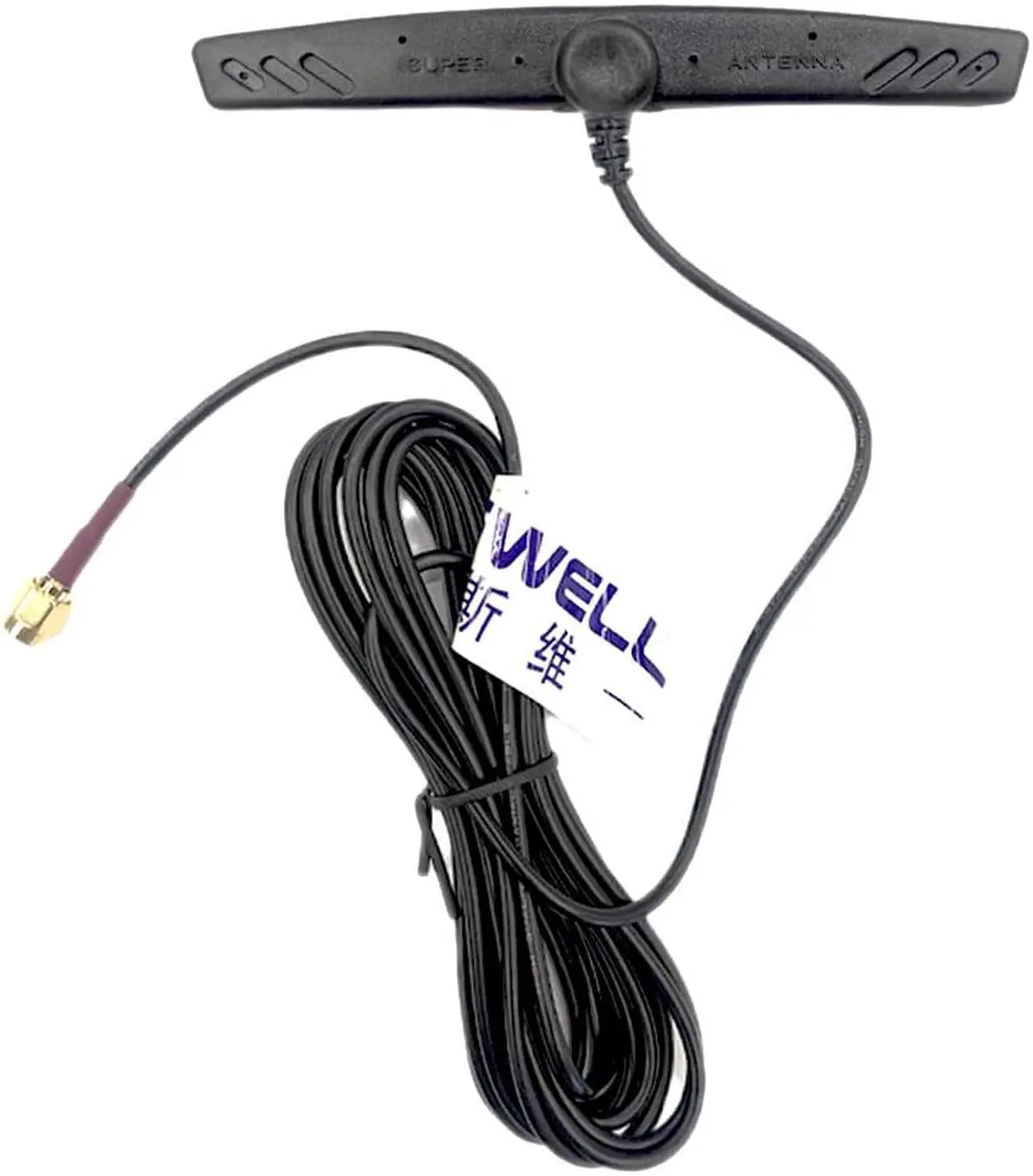

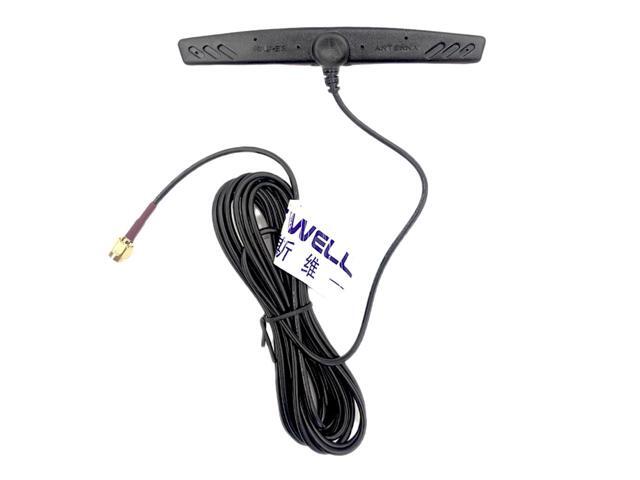

    MASWELL 4G LTE 3G GSM Antenna 700-2700MHz Slim Patch Antenna 4G Cellular Antenna Adhesive

    • GSM/3G/4G Frequency :824~960MHz and 1710~2170MHz,2400MHz
    • Ideal for signal reception of GSM 2G/3G/4G for wireless devices
    • Adhesive mount design and Waterproof IP 67
    • low profile for applications with limited space
    • ideal for smart water meter, smart electricity meter, IoT etc.
    +
    +
    Overview
    Specs
    Reviews
    ITEM ID:AN_GSM_108

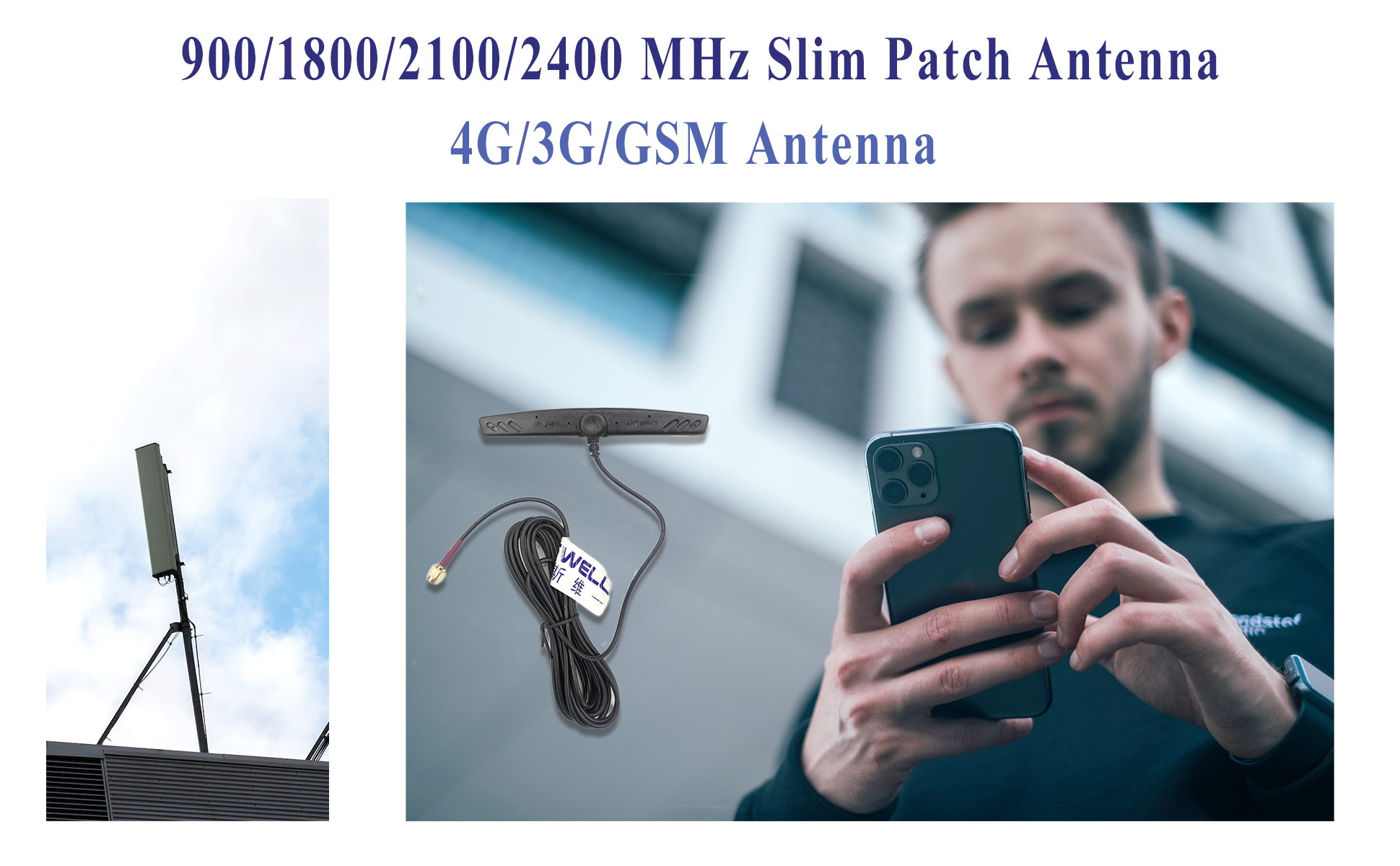

    MASWELL 4G/3G/GSM Antenna 900/1800/2100/2400 MHz Slim Patch Antenna LTE Antenna

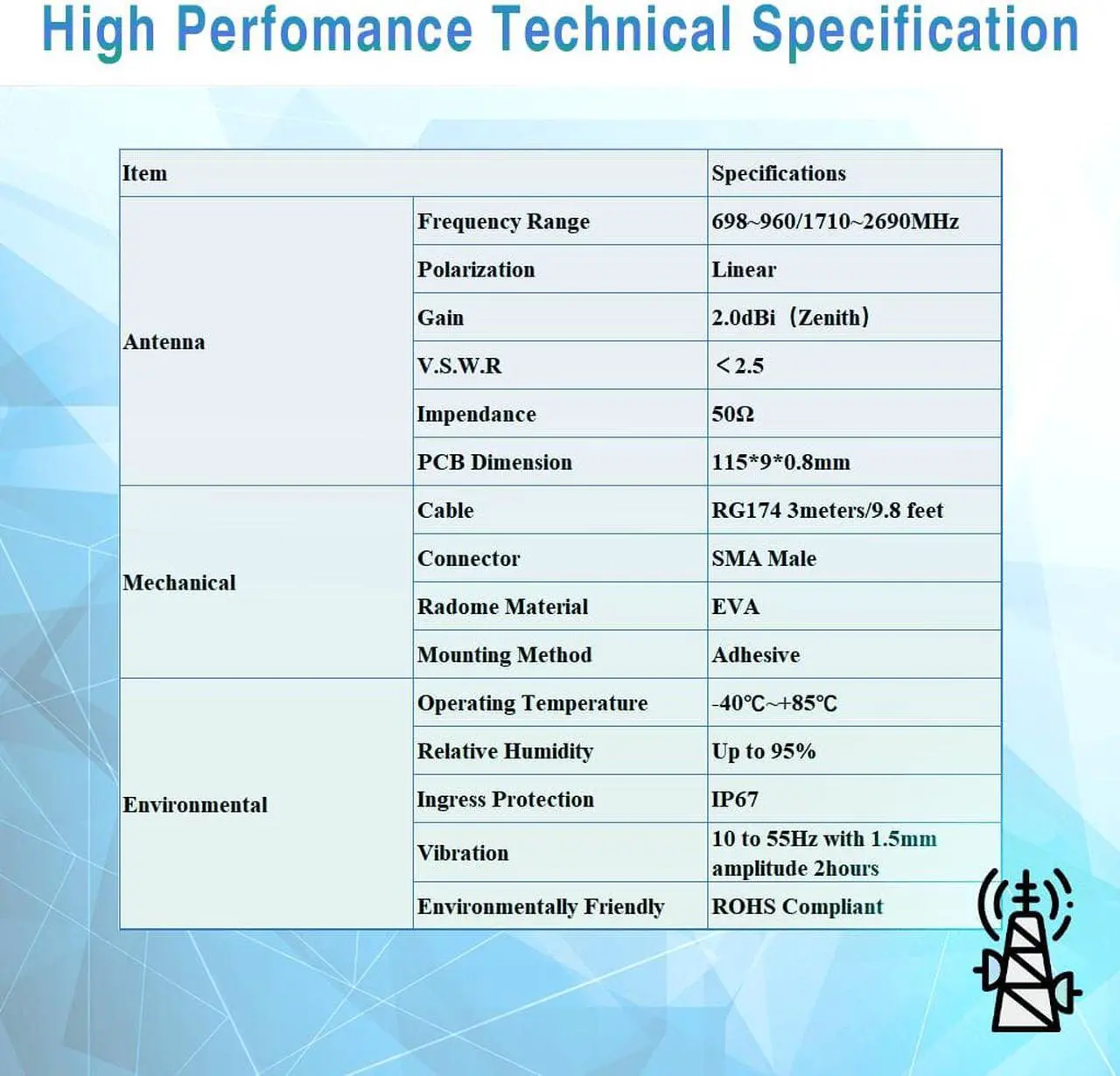

    Antenna

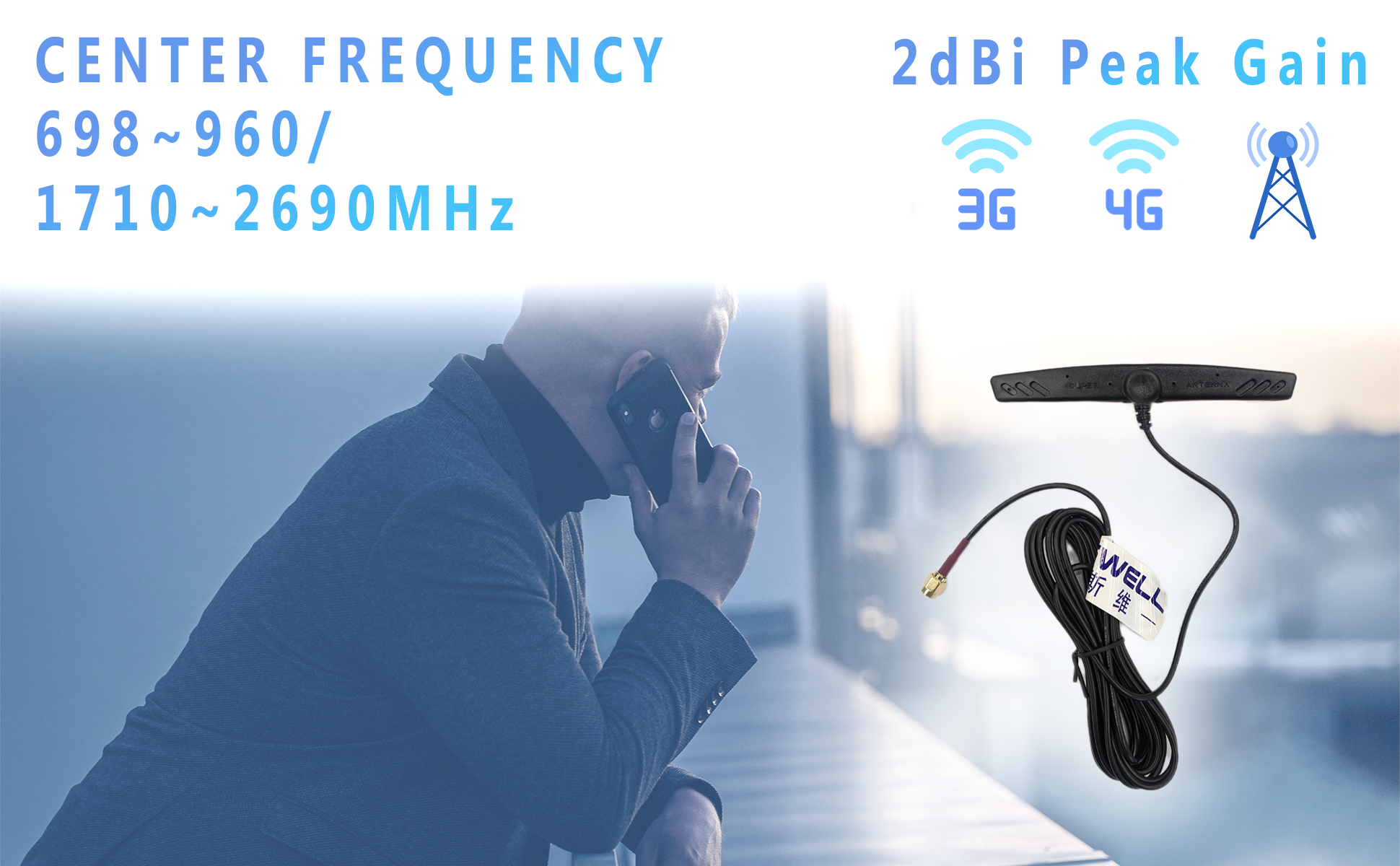

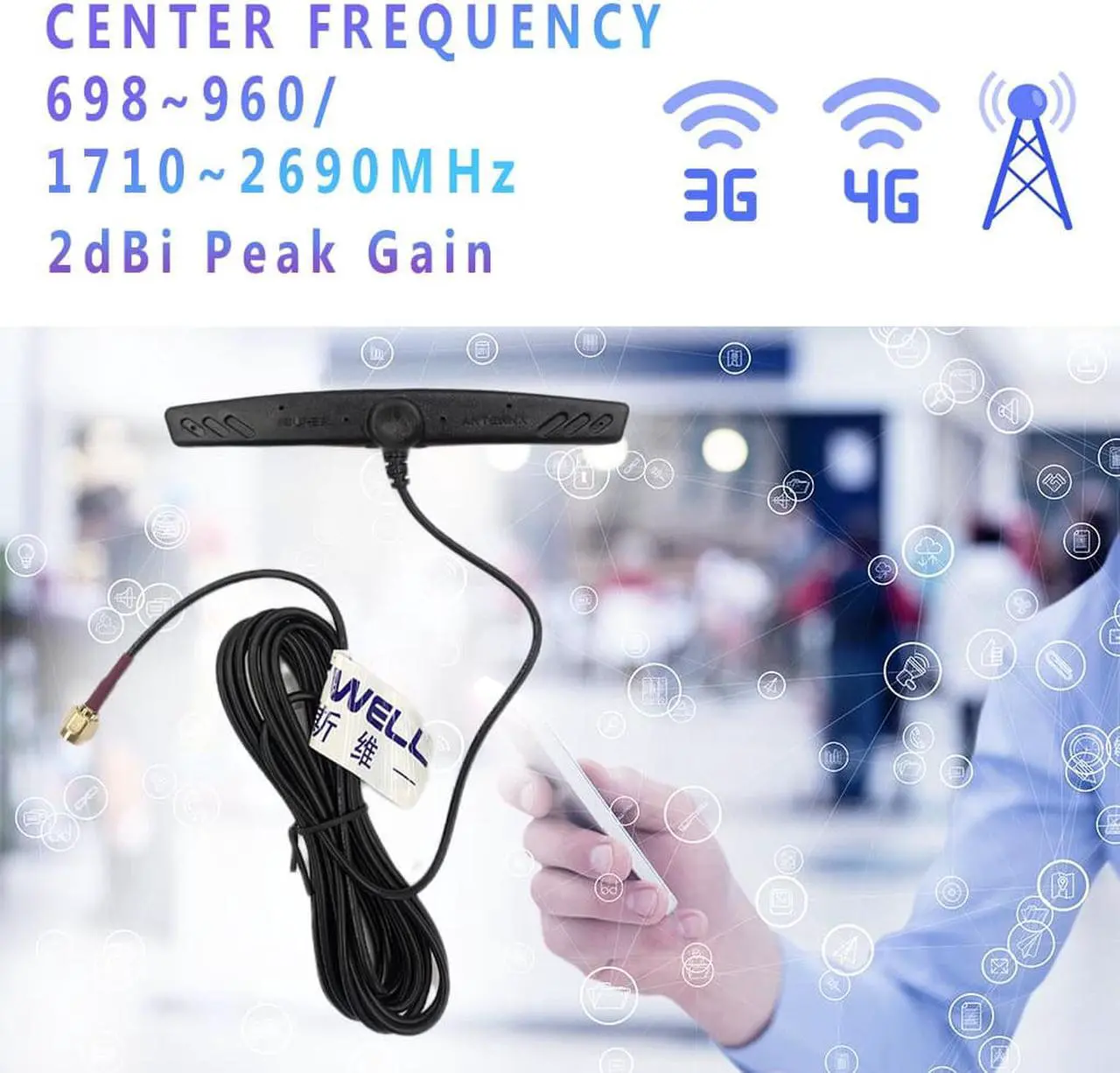

    Frequency Range: 824~960/1710~2170MHz

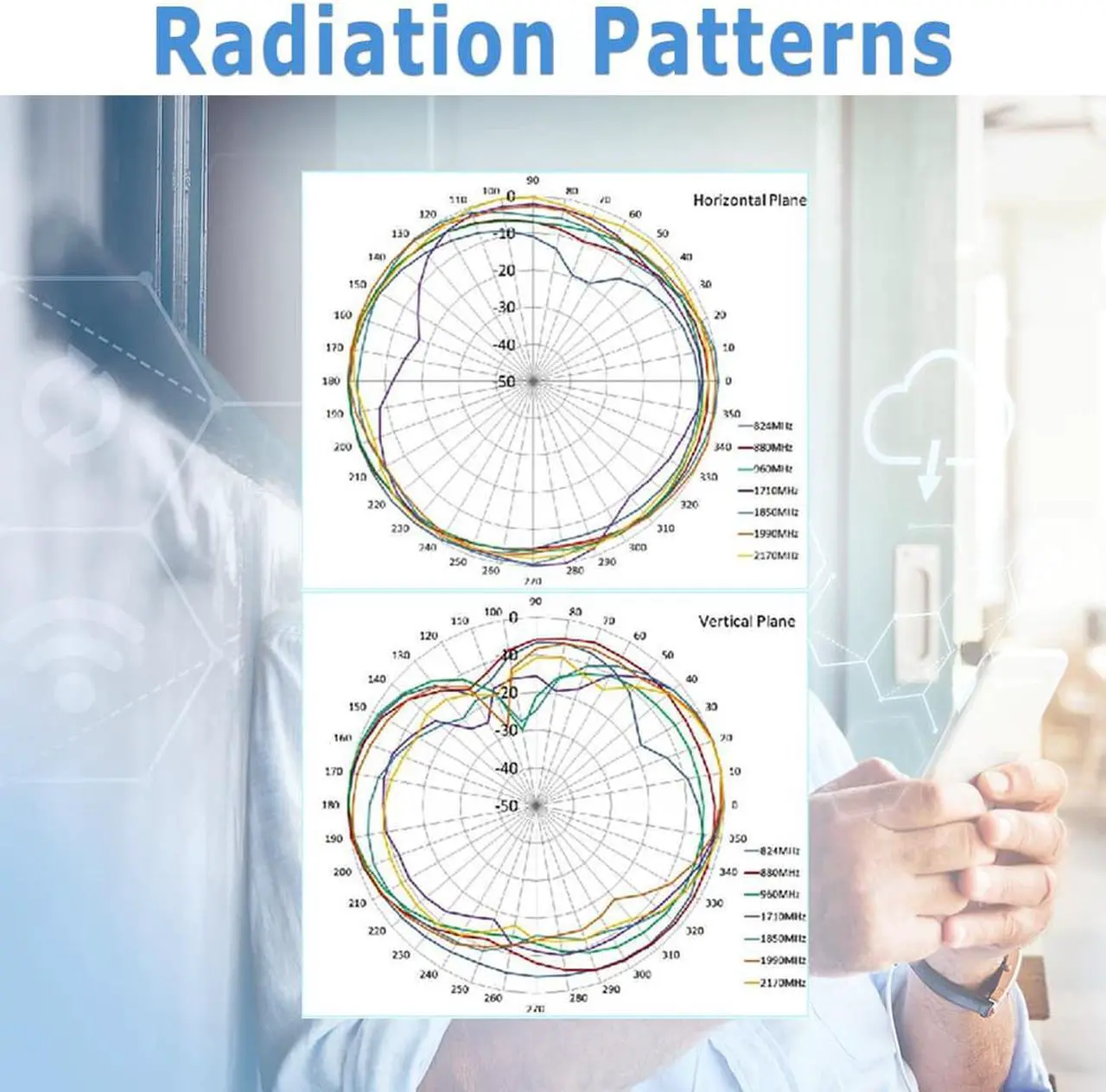

    Polarization: Linear
    Gain: 2.5dBi(Zenith)
    V.S.W.R: <2.0
    Impendance: 50Ohms
    PCB Dimension: 115*9*0.8mm

    Mechanical

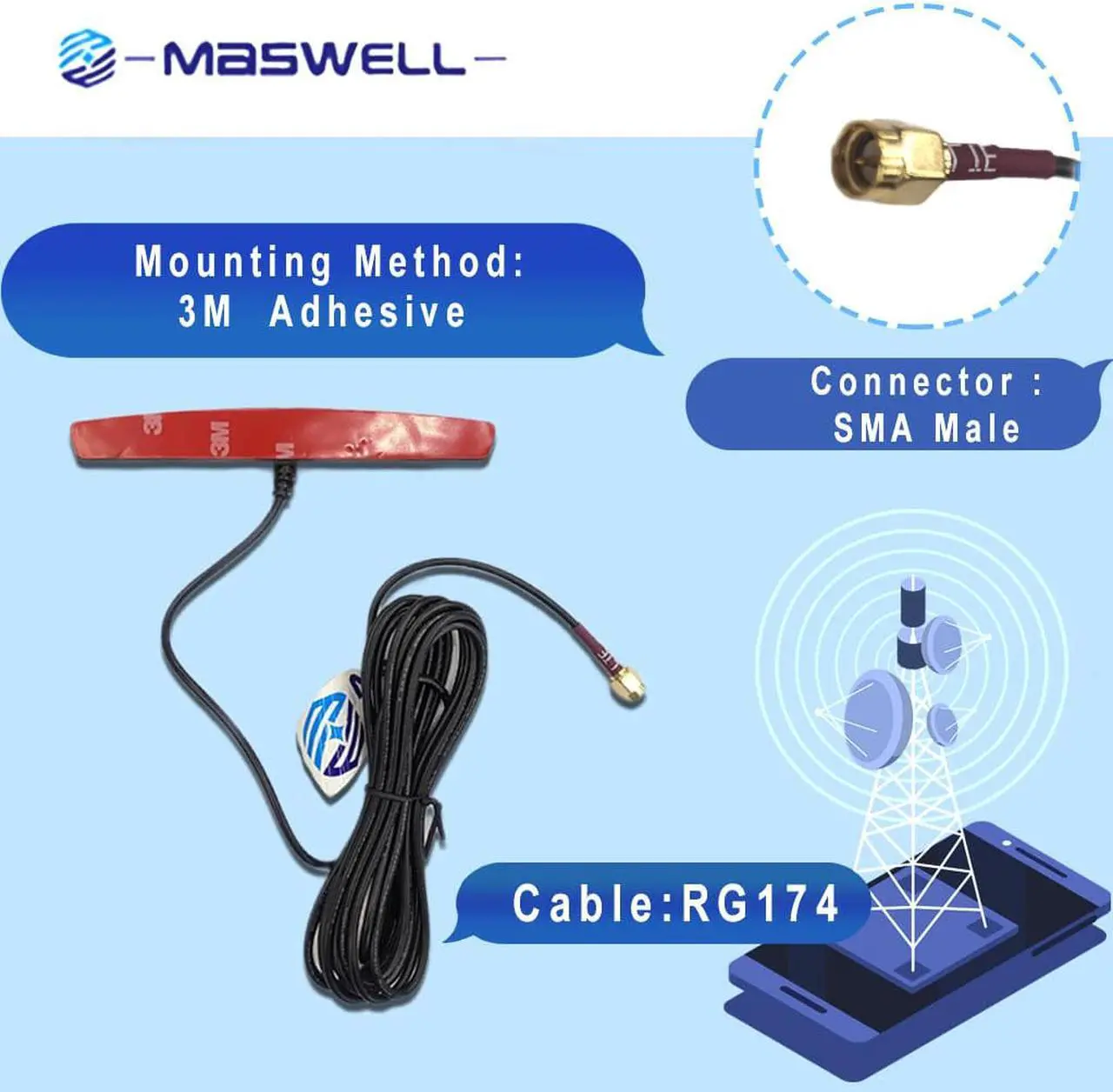

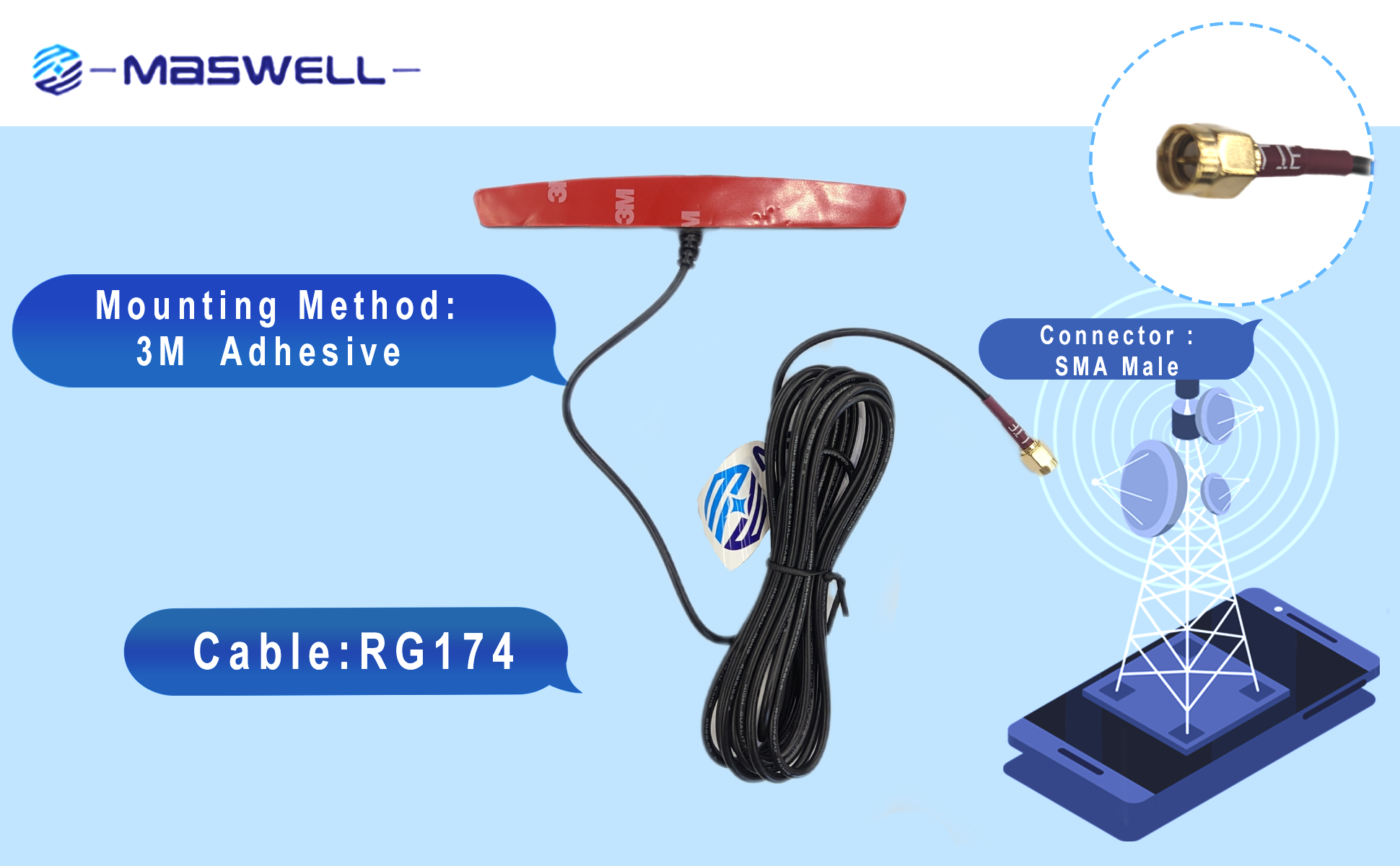

    Cable: 5 meters
    Connector: SMA male
    Radome Material: EVA
    Mounting Method: Adhesive

    Environmental
    Operating Temperature: -40°C~+85°C
    Relative Humidity: Up to 95%

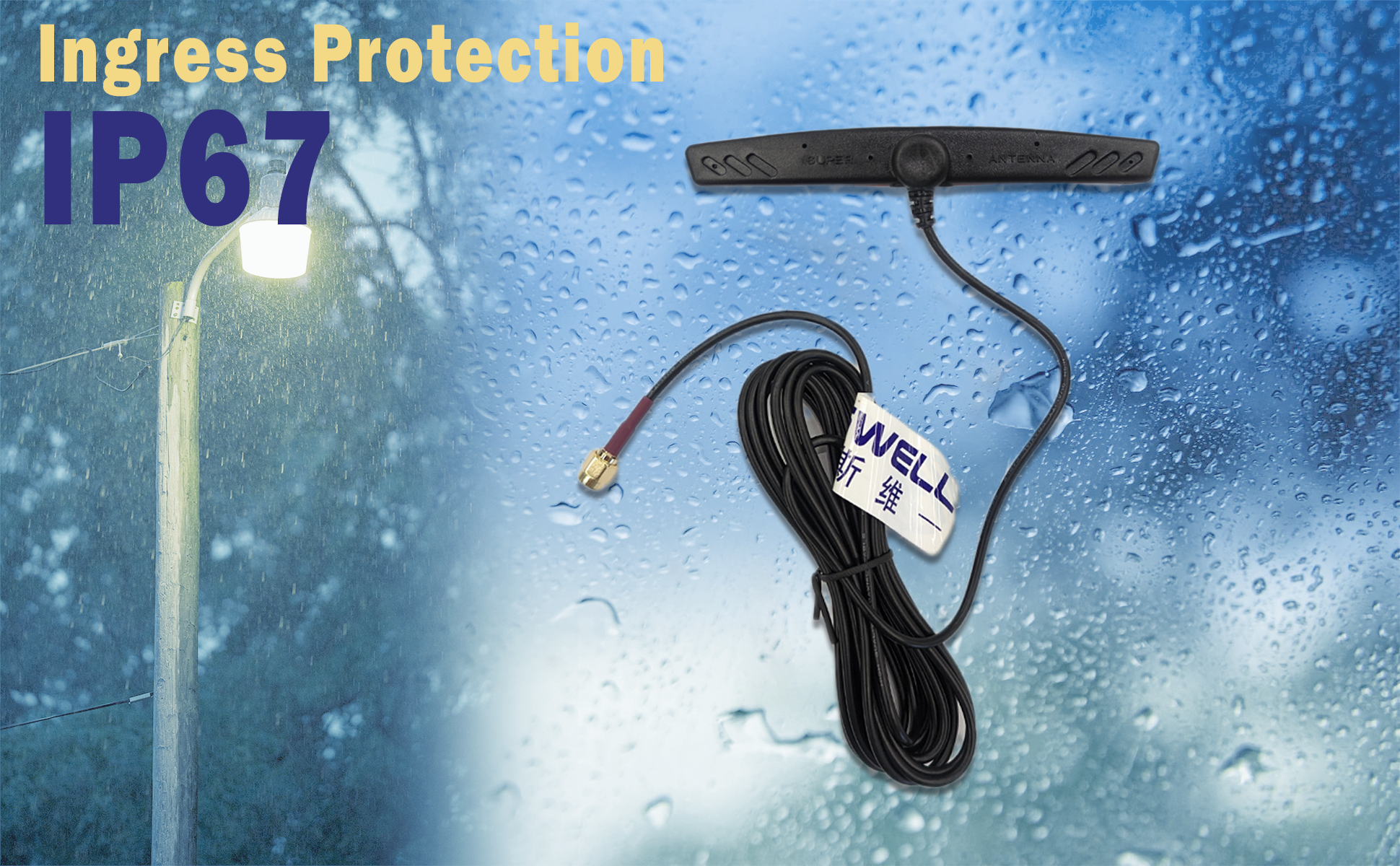

    Ingress Protection: IP67
    Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
    Environmentally Friendly: ROHS Compliant
