2.4Ghz 5.8GHz WiFi Omnidirectional MIMO 802.11ax Bluetooth Wireless Antenna for Router Gateway Remote Controller DTU Gate Opener Switch Signal Booster Trail Wildlife Game Hunting Camera
See more "wifi antenna"
Check more best sellers of "Network Antennas"
Check more lowest price of "Network Antennas"
Check more deals of "Network Antennas"
In stock.
Ships from China.
- This compact Dualband WiFi Omni Antenna is designed for 2.4 and 5 GHz Wi-Fi frequency band (IEEE 802.11 ax/ac/a/b/g/n) and has a gain of 3dBi at 2.4 GHz and 5 GHz.
- Omnidirectional WiFi Antennas in general are characteristicall constructed to cover large areas and to provide the WiFi Signal all-over into all directions. This WiFi Antenna has H/V beamwidth of nearly 360° which allows using this Wi-Fi Omni Antenna in multi-story buildings.
- This type of Wi-Fi Antenna will be typically used for WiFi Base Stations like DSL Router / Access Point or for WiFi Clients like Notebook / PCs.
- This RP-SMA terminal mount antenna is ideal for 2.4GHz/5.15~5.85GHz wireless applications such as Bluetooth and Wireless LAN. At 109mm in length, with an omnidirectional radiation pattern and 3dBi gain across all bands, it ensures constant reception and transmission. The antenna structure is designed for robust usage and the ruggedized housing is made with TPU giving superior environmental reliability.
+
+
Overview
Specs
Reviews
Omnidirectional WiFi Antenna

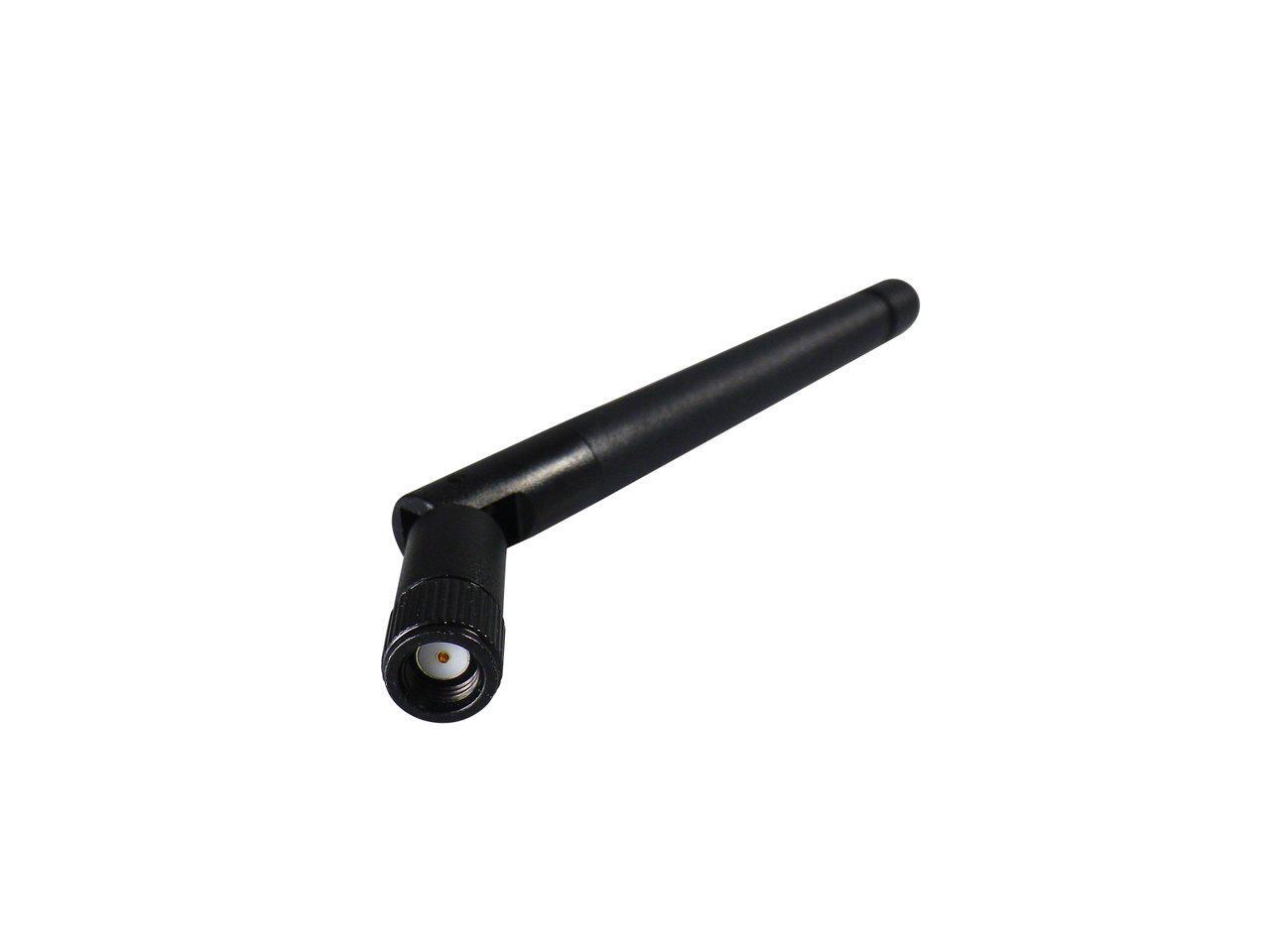

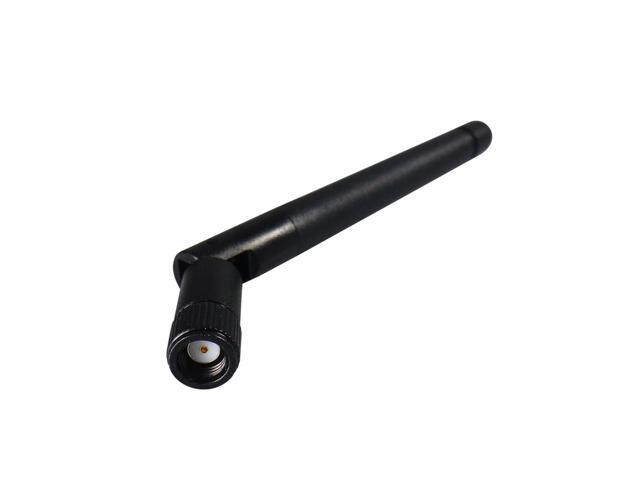

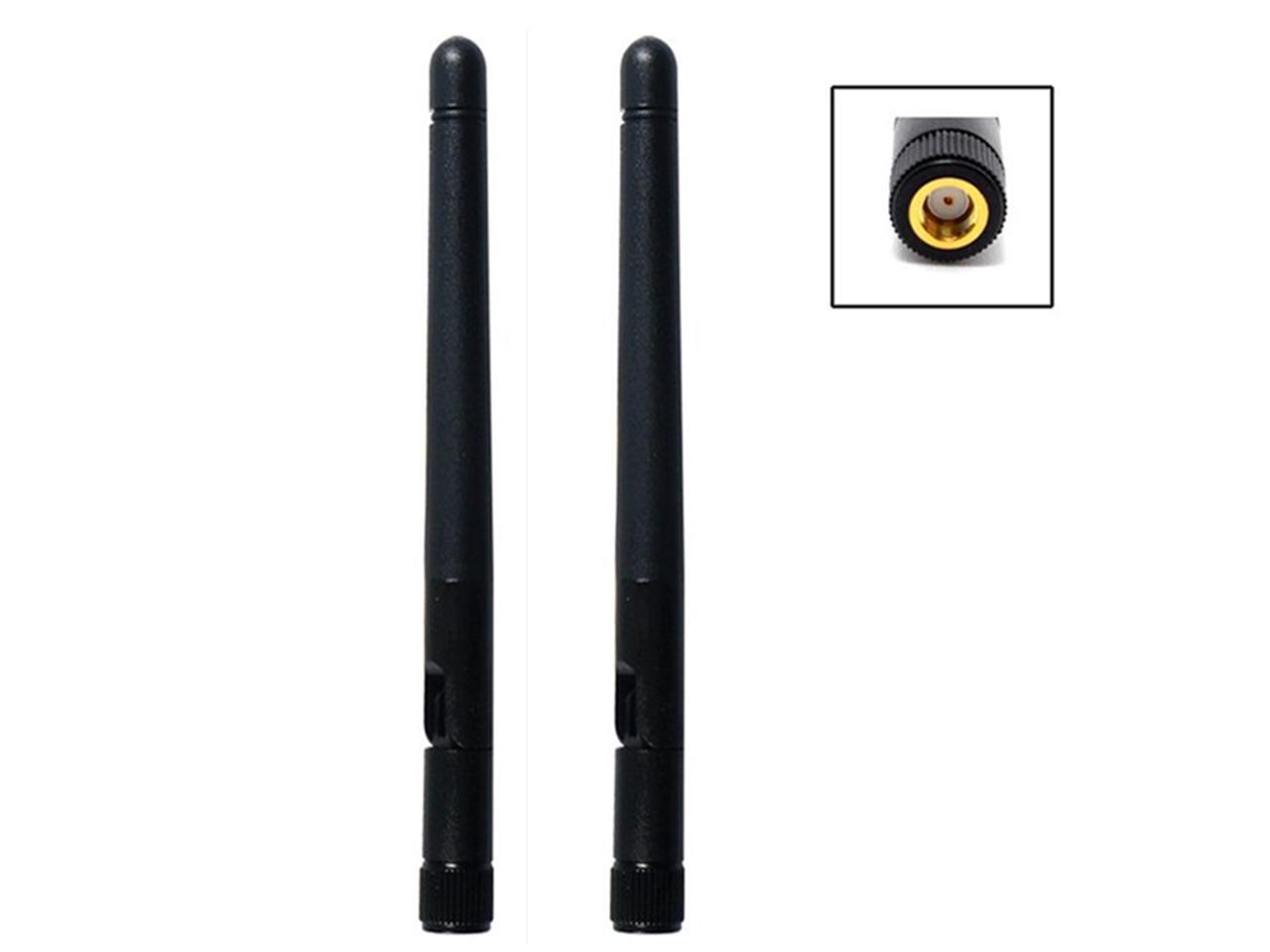

This antenna is a 2.4 & 5.8GHz Wi-Fi terminal mount dipole antenna. At just 110mm in height 4.33 inch, the robust TPEE enclosure can be mounted straight or at a right angle to the device with its hinged RPSMA(M) connector. It is ideal for applications such as Bluetooth, BLE, ZigBee, and Wireless LAN. It‘s designed for superior performance and reliability, has an omnidirectional radiation pattern, and extremely high efficiency and gain on both the 2.4 & 5.8GHz bands.
Wireless Technology: 802.11ax, 802.11ac,802.11a,802.11b,802.11g,802.11n
Frequency Category: 2.4GHz,5GHz
Gain: 3dBi
Impedance: 50 Ohm
Frequency: 2400 - 2500 MHz 5150 - 5850 MHz (IEEE802.11 ac/a/b/g/n)
VSWR: max. 2
Polarisation: Vertical (Linear)
Beamwidth: 360° Horizontal 360° Vertical
Connector: RP-SMA female
Dimensions: 109mm x 10mm
Bluetooth router Wireless External Antenna
Compact for Router Gateway Remote Controller DTU Gate Opener Switch Mobile Cell Phone Signal Booster Trail Wildlife Game Hunting Camera
For WLAN devices using WiFi (802.11ax/ax/a/b/g/n), Bluetooth, ZigBee, Router
Card Wifi router WLAN Wireless PCI Cards Bluetooth
Compatible Carrier Network: Verizon, AT&T, T-Mobile, Sprint and etc;
Antenna Dual-Band 2.4GHz & 5GHz
Compatible with: 4G LTE Wireless Mobile Router Hub; Wireless Home Phone Hotspot Router Modem; Cellular Wildlife Camera Trail Camera Game Camera Hunting Camera; 4G LTE Industrial Gateway Router Modem Terminal; Vehicle Car Truck RV Bus Van Mobile Cell Phone Signal Booster Repeater, Building Indoor Cellular Amplifier
Compatible with: Huawei 4G LTE Wireless Router B525 B315 B593 B880 B890 B310 E5186 E5175 ZTE MF253S; Verizon Wireless Home Phone Novatel T2000 T1114 Router Hotspot Modem; Cradlepoint IBR1700 IBR1100 IBR900 IBR600 IBR650 IBR350 IBR200 CBA850 AER2200 AER2100 AER1600 AER3100 MBR1400 Industrial Gateway Router; Sierra Wireless GX450 LX60 RV50 MG90 MP70 LS300 FX30 ES450 GX440 Gateway Router
Dual Band Antenna Omni Directional with RP-SMA (male) connector
Compatible with: Huntooler Wireless Trail Camera; Snyper Commander Hunting 12 MP Wireless Trail Camera; Ancheer Wireless Trail Camera; HCO Spartan HD GoCam Wireless Trail Camera; Commander Wireless Trail Camera; Covert Code Black Blackhawk Wireless Cellular Trail Camera; Moultrie Wireless Field Modem Cellular Trail Camera; Stealth Cam GX Cellular Camera; Cuddeback Cuddelink Cellular Game Trail Camera; CreativeXP Cellular Game Trail Camera
Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; Advantech Cradlepoint Digi Gemalto Encore InHand Inseego Option Red Lion Sierra Wireless Nimbelink 4G LTE Cellular Industrial Gateway Modular Modem Mobile Router Hotspot Terminal; 4G LTE RTU DTU Remote Controller Unit
This antenna is a 2.4 & 5.8GHz Wi-Fi terminal mount dipole antenna. At just 110mm in height 4.33 inch, the robust TPEE enclosure can be mounted straight or at a right angle to the device with its hinged RPSMA(M) connector. It is ideal for applications such as Bluetooth, BLE, ZigBee, and Wireless LAN. It‘s designed for superior performance and reliability, has an omnidirectional radiation pattern, and extremely high efficiency and gain on both the 2.4 & 5.8GHz bands.
Wireless Technology: 802.11ax, 802.11ac,802.11a,802.11b,802.11g,802.11n
Frequency Category: 2.4GHz,5GHz
Gain: 3dBi
Impedance: 50 Ohm
Frequency: 2400 - 2500 MHz 5150 - 5850 MHz (IEEE802.11 ac/a/b/g/n)
VSWR: max. 2
Polarisation: Vertical (Linear)
Beamwidth: 360° Horizontal 360° Vertical
Connector: RP-SMA female
Dimensions: 109mm x 10mm
Bluetooth router Wireless External Antenna
Compact for Router Gateway Remote Controller DTU Gate Opener Switch Mobile Cell Phone Signal Booster Trail Wildlife Game Hunting Camera
For WLAN devices using WiFi (802.11ax/ax/a/b/g/n), Bluetooth, ZigBee, Router
Card Wifi router WLAN Wireless PCI Cards Bluetooth
Compatible Carrier Network: Verizon, AT&T, T-Mobile, Sprint and etc;
Antenna Dual-Band 2.4GHz & 5GHz
Compatible with: 4G LTE Wireless Mobile Router Hub; Wireless Home Phone Hotspot Router Modem; Cellular Wildlife Camera Trail Camera Game Camera Hunting Camera; 4G LTE Industrial Gateway Router Modem Terminal; Vehicle Car Truck RV Bus Van Mobile Cell Phone Signal Booster Repeater, Building Indoor Cellular Amplifier
Compatible with: Huawei 4G LTE Wireless Router B525 B315 B593 B880 B890 B310 E5186 E5175 ZTE MF253S; Verizon Wireless Home Phone Novatel T2000 T1114 Router Hotspot Modem; Cradlepoint IBR1700 IBR1100 IBR900 IBR600 IBR650 IBR350 IBR200 CBA850 AER2200 AER2100 AER1600 AER3100 MBR1400 Industrial Gateway Router; Sierra Wireless GX450 LX60 RV50 MG90 MP70 LS300 FX30 ES450 GX440 Gateway Router
Dual Band Antenna Omni Directional with RP-SMA (male) connector
Compatible with: Huntooler Wireless Trail Camera; Snyper Commander Hunting 12 MP Wireless Trail Camera; Ancheer Wireless Trail Camera; HCO Spartan HD GoCam Wireless Trail Camera; Commander Wireless Trail Camera; Covert Code Black Blackhawk Wireless Cellular Trail Camera; Moultrie Wireless Field Modem Cellular Trail Camera; Stealth Cam GX Cellular Camera; Cuddeback Cuddelink Cellular Game Trail Camera; CreativeXP Cellular Game Trail Camera
Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; Advantech Cradlepoint Digi Gemalto Encore InHand Inseego Option Red Lion Sierra Wireless Nimbelink 4G LTE Cellular Industrial Gateway Modular Modem Mobile Router Hotspot Terminal; 4G LTE RTU DTU Remote Controller Unit
