SDI Cable BNC Cable 3G6G12G Belden 1694A10FT15FT30FT50FT100FT200FTSupports HDSDI3GSDI4K8KSDI Video Cable Precision Video Cable1Pcs
- *****
- **********

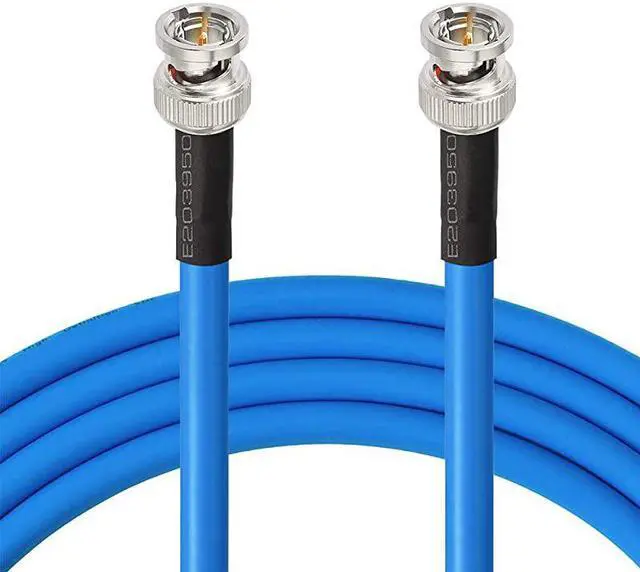

- *****3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A;50 feet)*****
- *****Specifications: Both ends BNC male (plug) | Connector: Gold plated | Impedance: 75 Ohm | Cable Type: Belden 1694A;18 AWG|Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2082)*****

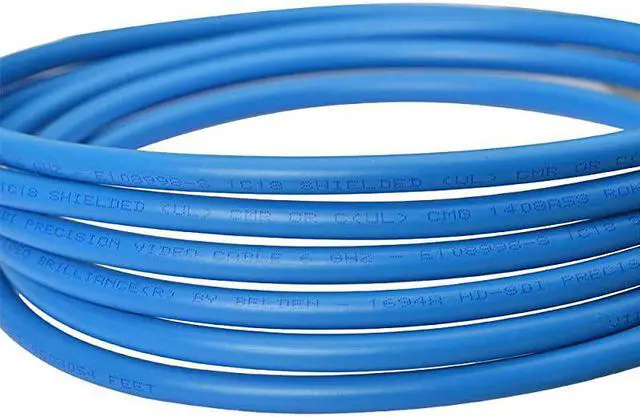

- *****BELDEN 1694 PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6 type coax cable. Featuring RG-6/U type, 18 AWG solid .040" bare copper conductor, Gas-injected FHDPE - Foam High-Density Polyethylene + tinned copper braid shield (95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield), PVC - Polyvinyl Chloride.*****

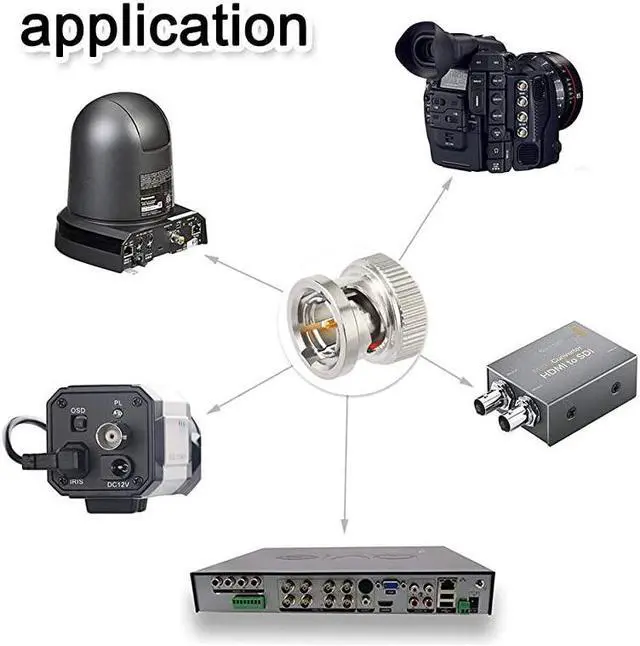

- *****Is suitable for HDTV and professional SDI applications: Supports HD-SDI, 3G-SDI, component, composite, MADI, WORD CLOCK, SYNC, etc.This shielded coaxial cable is compatible w
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Size: 50FT3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A; 50 feet) Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper. This cable is 100% sweep tested and is ready to meet todays requirements of 6 Gbps data transfer. can be used in professional broadcast applications.

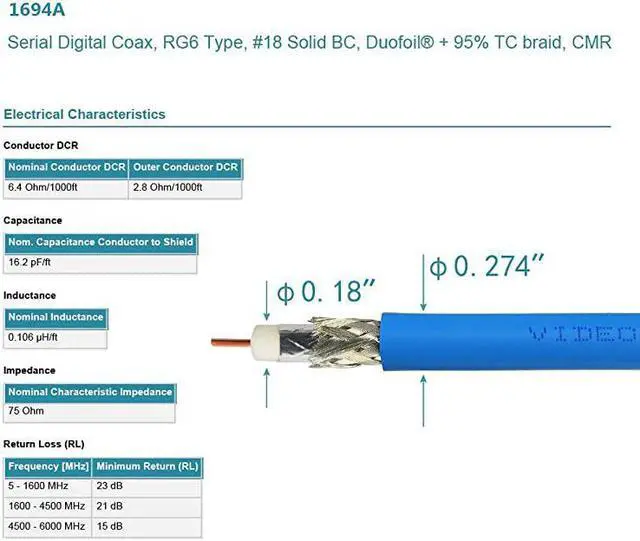

Features and Specifications: Center
conductor: 0.40" dia.
bare copper Dielectric: 0.180" dia.
foamed PEShield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI, for excellent noise rejection
Nominal impedance: 75 ohms-ideal - for audio and videoPVC outer jacket - for durability and long-term protection.
Velocity of propagation: 82%
Capacitance: 16.2 pF/ft.
Nominal attenuation: 0.240 dB/100 ft. @ 1

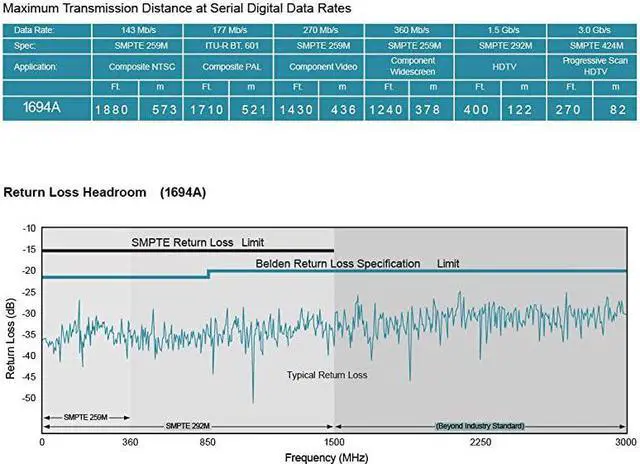

MHz Overall diameter: 0.274". Serial Digital Data Rates Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI ( 1.483 Gbps, ST 292)3G-SDI ( 2.97 Gbps, ST 424) 6G-SDI ( 5.94 Gbps, ST 2081)12G-SDI ( 11.88 Gbps, ST 2082)
NOTE: 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables. 50-ohm cables/connectors work well with old analog video formats. If you are looking for high-quality video output, 50 Ohm will not give you a high-quality level. We are a professional manufacturer. If you need other length Cable, please contact us by email.
Features and Specifications: Center
conductor: 0.40" dia.
bare copper Dielectric: 0.180" dia.
foamed PEShield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI, for excellent noise rejection
Nominal impedance: 75 ohms-ideal - for audio and videoPVC outer jacket - for durability and long-term protection.
Velocity of propagation: 82%
Capacitance: 16.2 pF/ft.
Nominal attenuation: 0.240 dB/100 ft. @ 1
MHz Overall diameter: 0.274". Serial Digital Data Rates Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI ( 1.483 Gbps, ST 292)3G-SDI ( 2.97 Gbps, ST 424) 6G-SDI ( 5.94 Gbps, ST 2081)12G-SDI ( 11.88 Gbps, ST 2082)
NOTE: 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables. 50-ohm cables/connectors work well with old analog video formats. If you are looking for high-quality video output, 50 Ohm will not give you a high-quality level. We are a professional manufacturer. If you need other length Cable, please contact us by email.
