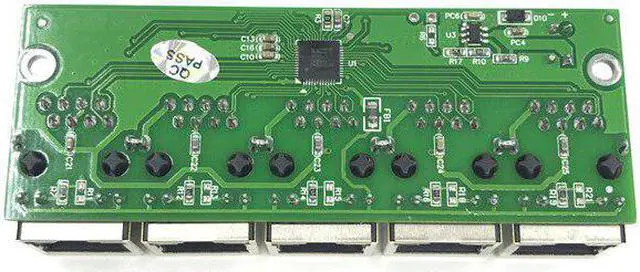

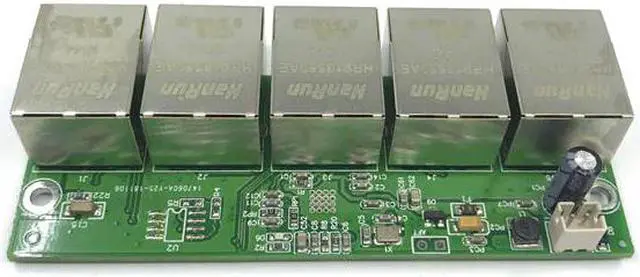

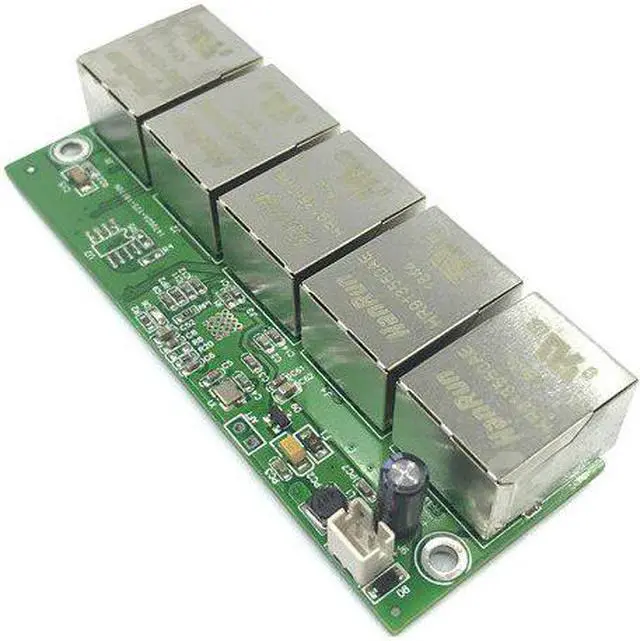

grade wide temperature low power 5 port 10/100Mbps RJ45 wiring splitter mini engineering micro network switch module

Product features

l in line with IEEE 802.3IEEE 802.3uIEEE 802.3ab standard

l adopt 8 port grade chip to make sure the performance more stronger and stability

l Full duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard

l 5 10/100M adaptive network portssupport port auto-flipAuto MDI/MDIX

l Each port supports auto-negotiationAutomatically adjust the transmission mode and transmission rate

l Support MAC address self-learning

l Support full-speed forwarding communication without blocking

l Dynamic LED indicator offer simple working status prompts and troubleshooting

l Lightning and surge machine with static protection; static support 8KV, surge differential mode 2KV, common mode 4KV

l Redundant dual DC power input overload protection, support for positive and negative access;

l Power supply supports 9-48V input;

Product specifications

Technology

standardIEEE802.3IEEE802.3uIEEE802.3x

control flowIEEE802.3xBack Pressure

interface

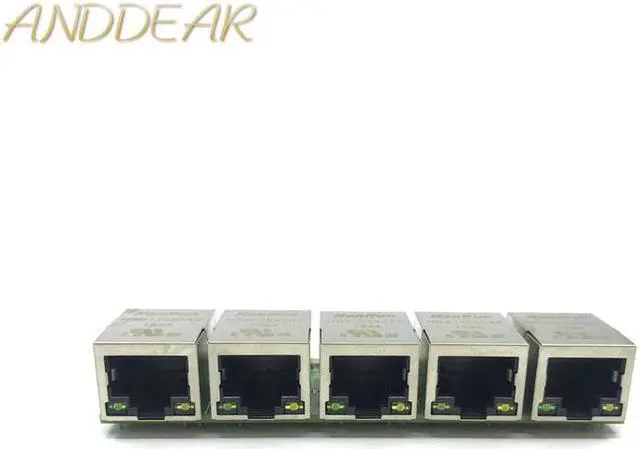

100M network port10Base-T/100Base-TX adaptive

Transmission distance

Double-twisted100Mstandard CAT5/CAT5e cable

Indicator light

Interface indicator1-5LINK/ACT

Power indicator: PWR

Exchange attribute

100 Mbps forwarding speed148810pps

transfer methodstore and forward

System switching broadband1.6G

Cache size1M

MAC address1K

Power  supply

Input voltage: 24VDC (9~48VDC)

Input method: Plug-in type 3P terminal block, spacing 5.08MM

Support overcurrent protection

Support power input with limitation, anti-reverse access

Consumption
