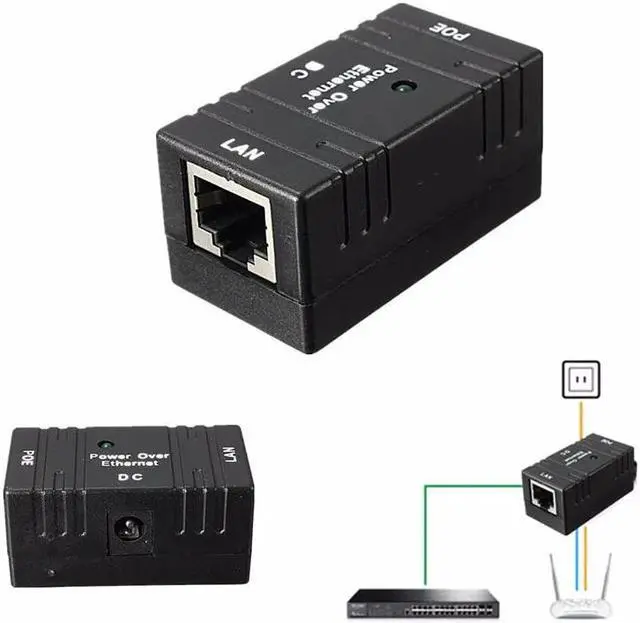

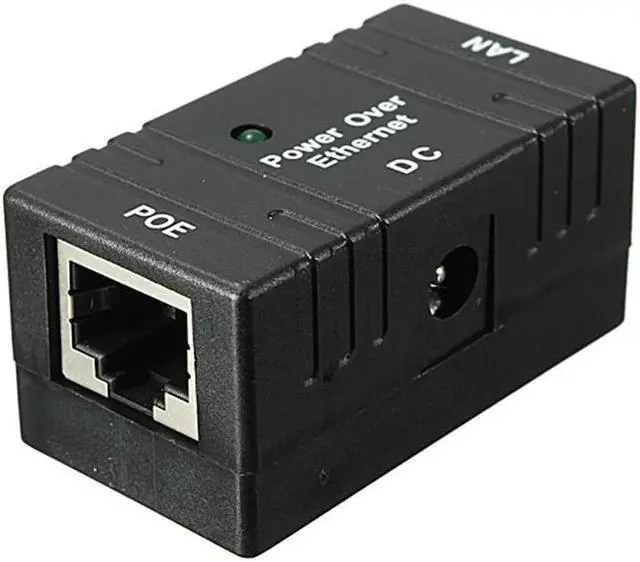

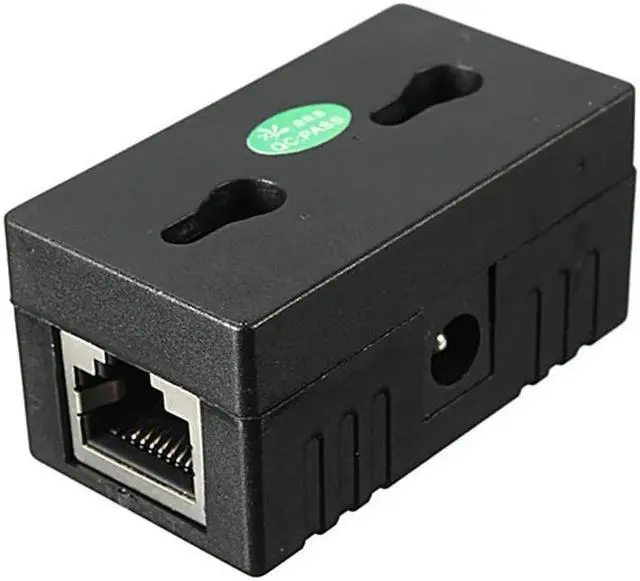

10M/100Mbp Passive POE Power Over Ethernet RJ-45 Injector Splitter Wall Mount Adapter For CCTV IP Camera Networking

10M/100Mbp Passive POE Power Over Ethernet RJ-45 Injector Splitter Wall Mount Adapter For CCTV IP Camera Networking

Feature:

1.To achieve t performance of a Wireless LAN, the location of

Access Point(AP) must be carefully chosen.In most cases, finding

a power supply for AP is a common obstacle.

2.Power over Ethernet(PoE) technology provides the ideal power

solution to help overcome these obstacles.In Ethernet, four pairs

of C5 or C5E twisted pairs are used as the medium for transmission.

The actual data transmission, however,only takes up 4-pairs of wires

pairs 1-8). PoE technology utilizesthe remaining pairs(pairs 4-5 and

7-8 to conduct electricity.

Specificiation:

1.Product Name:POE Injector / Splitter

2.Data PIN:1/2,3/6

3.Power PIN:4/5+ & 7/8-

4.Data in:Connects PC/HUB/Switch

5.Dimension:50mm*25mm*25mm

6.Case of material:ABS 94V-0

7.Ethernet Data rate:10/100 Mbp

8.Ethernet Cable:TIA/EIA 568 Cat.5

9.Ethernet Cable Connector:RJ-45

10.Operating Temperature:0 - 40 Degree

11.Storage Temperature:-40 - 70 Degree

12.Operating Humidity :10% to 80% RH

13.Storage Humidity:5% to 90% RH

Note this one is for 10M/100M,without adapter, with out earthnet and power

connectiong cables.

Package include

1 X PoE injector Splitter
