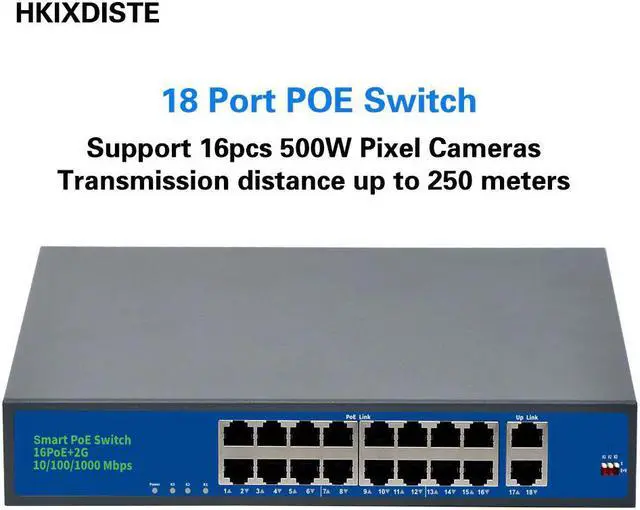

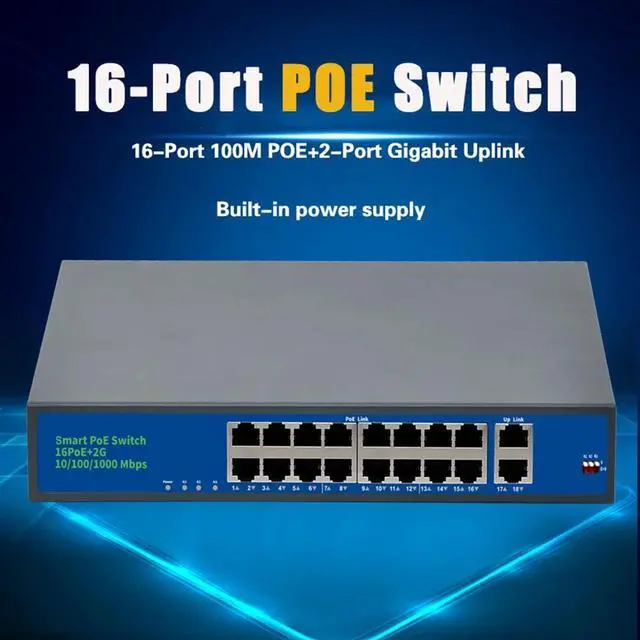

16 Port POE Ethernet Network Switch+2 Port Gigabit Uplink Fast Switch with Metal Shell For CCTV IP Monitoring Camera Power 250M

16*10/100mbps POE port;2*100/1000mbps UP Link

250m Distance;Vlan support

Support IEEE802.3AF/AT

Whole Power:250W(52V 4.8A)

All port supported by MDI/MDIX auto flip and self negotiation

Supply 18 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.

Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

Each port max. power supply reached 30W.

Application:

Wireless Access Point

IP Camera

IP Phone

Computer Networks

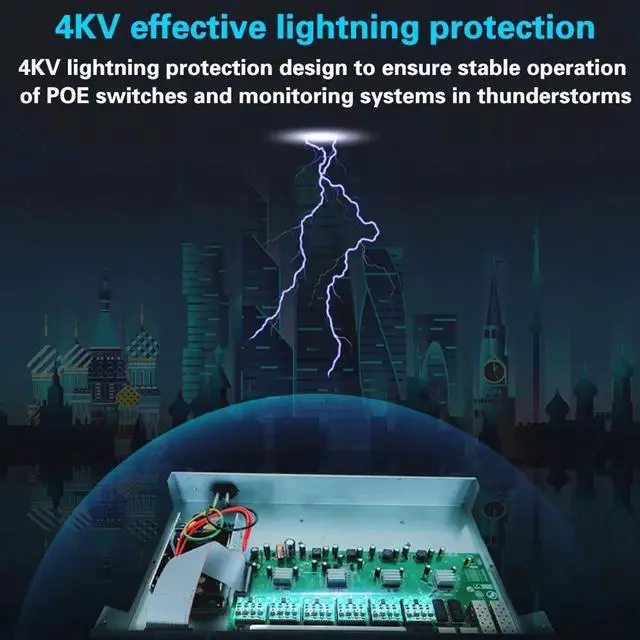

4KV effective lightning protection

4KV lightning protection design to ensure stable operation of POE switches and monitoring systems in thunderstorms

Transmission distance

Support EXTEND mode, Max Network Cable length to 250 meters.

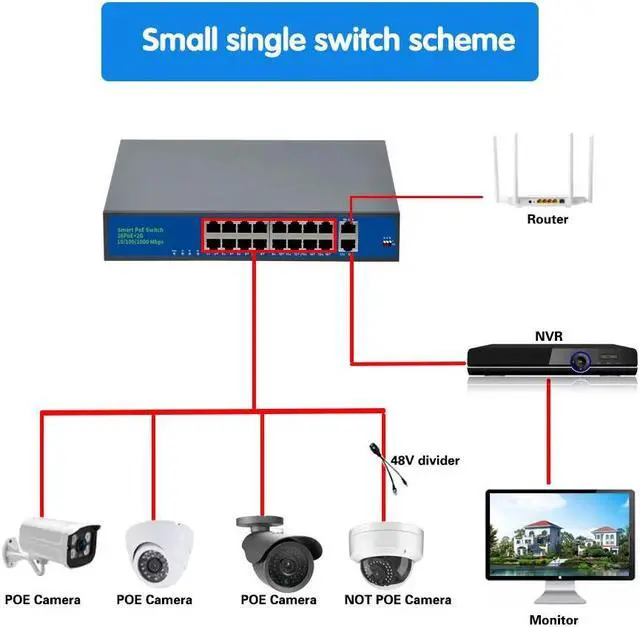

Application scenario

Use one switch to connect multiple cameras. .

Medium series power supply scheme ,Use multiple POE switches to connect multiple cameras

POE switch function parameter introduction

POE Port

1 to 16 support IEEE802.3AF/AT Standard

Output Power

15.4W/30W    IEEE802.3af/at

UP link port

17th-18th port support 1000Mbps

Whole Power

250W(52V 4.8A)

POE Protocol

IEEE 802.3af/IEEE 802.3at

POE Type

End-spa

Power Distance

250m

Network Standard

IEEE 802.3 IEEE802.3u802.3x802.3af/a

Network Medium

100/1000BASE-TX: 5 class and above non shielded twisted pair

Data Distance

250m

Switch Capability

12Gbps

Forwarding Mode

Store and forward

Forwarding Rate

100Mbps:14880pps

1000Mbps:14800pps

1000BASE-T: 1488095pps/port

MAC Address
