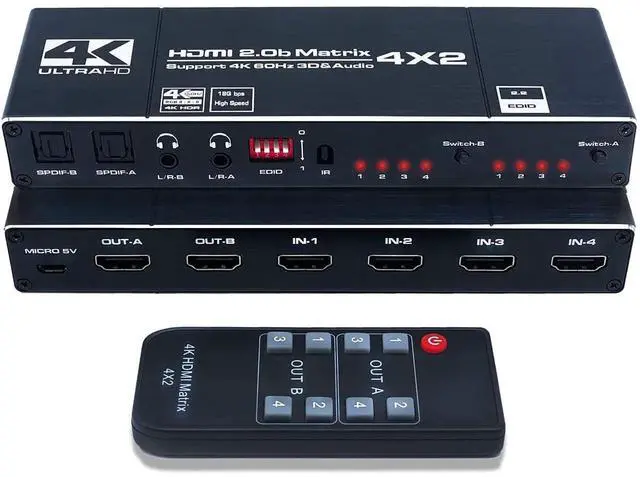

HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K @60Hz, 3D, 1080P eokCXOY
Limited time offer, ends 07/05 By GGnix

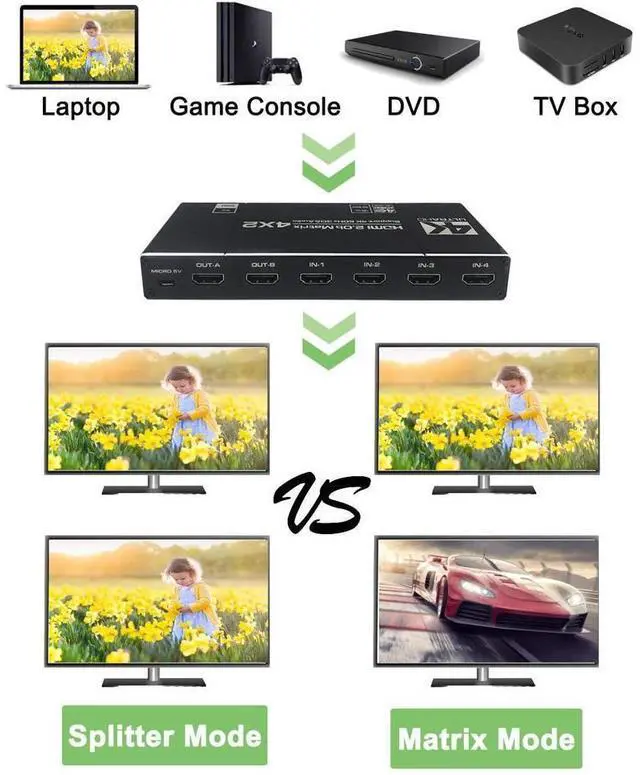

- [HDMI Matrix 4x2] HDMI matrix 4 in 2 out can connect four HDMI signal sources to two displays. It allows easily switch or split four HDMI devices into two HDMI compatible HD displays or projectors. It can display the same or different images on the TV.
- [High Resolution]Support up to 3840x2160 @60Hz, 3D, RGB 8:8:8, 4K HDR, backward compatible with multiple resolutions. Support 18.5Gbps data rate and tmds clock Up to 600Mhz. Support deep color 8/10/12/24/32/48bit.
- [HDMI Audio Extractor & EDID Scaler] It supports HDMI audio extract. Any input HD signal source can be extracted separately or simultaneously through Optical Toslink or 3.5mm L/R audio output port. Support LPCM/Dollby/DTS 5.1 audio.
- [Widely Compatible]Support HDMI 2.0b, HDCP 2.2. Input support: TV Box, PC,PS4, Nintendo Switch, Xbox or other HDMI compatible devices. Output support:HDTV, Monitor, Projector, etc.
- [Package List] 1x HDMI Matrix, 1x Remote Control, 1x 5V power adapter, 1x User Manual.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI Matrix Switch 4 in 2 out

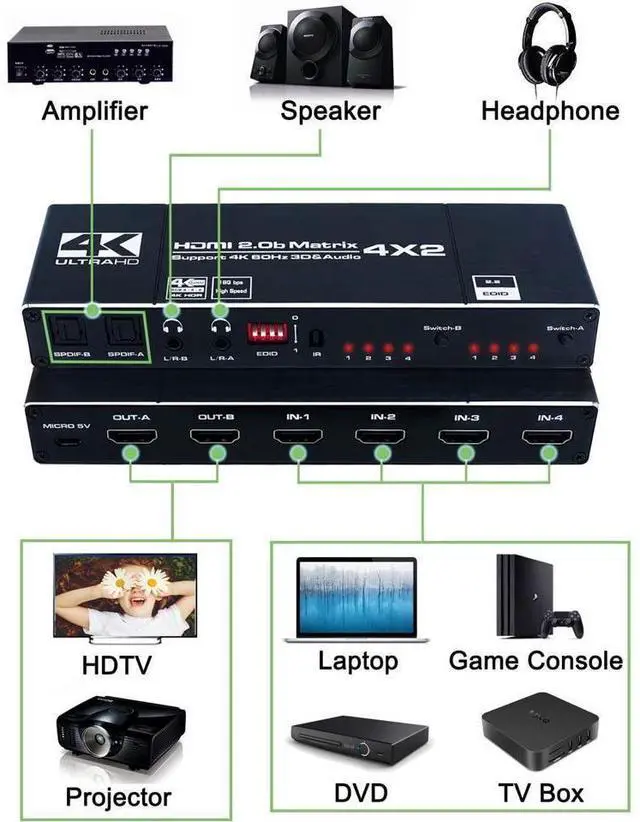

HDMI Matrix 4x2 allows connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. It allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo headphone.
Features
Support HDMI 2.0 b, HDCP 2.2
Support 3D video format
Support highest resolution up to 4K@60Hz
Support deep color 8/10/12/24/32/48bit
Support 18.5G bps data rate and tmds clock Up to 600Mhz
Support HDMI audio outputs, 3.5 mm earphone jack and optical output at same time
Support audio format: LPCM/ Dolby-AC3/ DTS audio
Input cable distance: =10m AWG26 HDMI 2.0 standard cable
Output cable distance: =15m AWG26 HDMI 2.0 standard cable
Package List
1x HDMI Matrix 4X2
1x 5V Power Adapter
1x Remote Control
1x User Manual
