express 3.0 Dual M.2 SATA SSD Card e3.0 to 2x NGFF B + M Key Slot Adapter -e to BKEY Jmb582

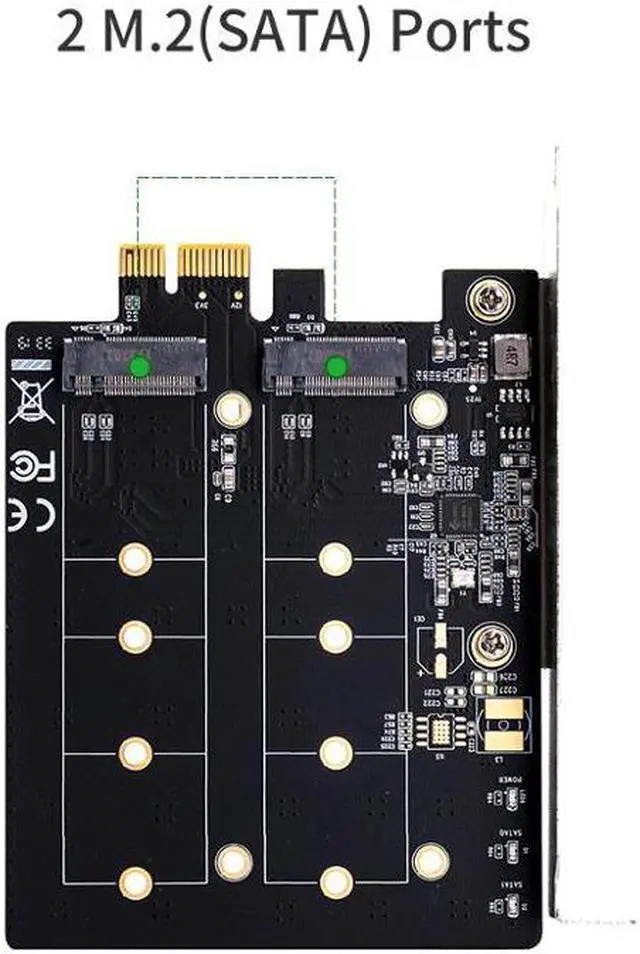

The Express card expands your PC by two M.2 NGFF slots. You can connect up to two M.2 NGFF modules in format 2280, 2260, 2242 and 2230.

Features

Compliant with Express Base Spec. Revision 3.0 backward compatible to Revision 1.0a 2.0

Fully compliant with Serial ATA specifications 3.0

Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0

Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0

Express M.2 specification 1.0

Supports Native Command Queue (NCQ)

Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD

Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA

ChipsetJMB582

System Requirement

Require an empty ex1or x 2 or x4 or x8 or x16 slot in computer

Windows® 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux

Package Content (The M.2 SSD are excluded)

1 x Express 3.0 to NGFF M.2 Key-B adapter card

1 x User Manual

1 x Software Driver CD
