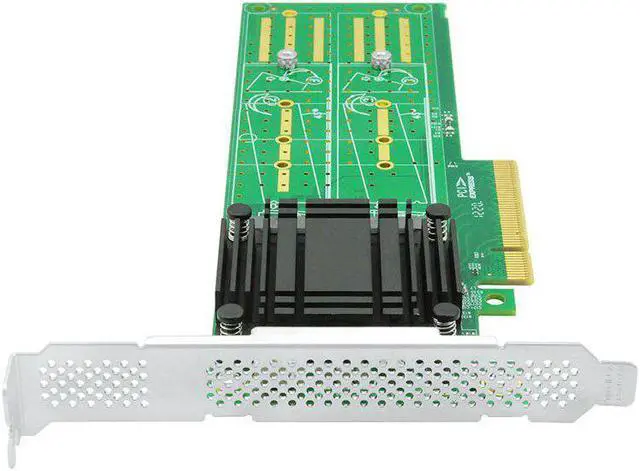

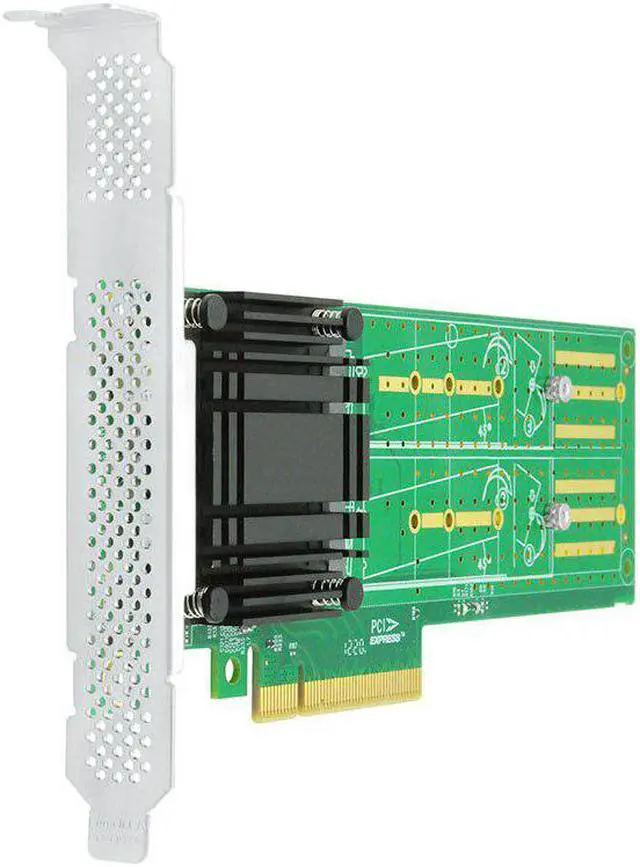

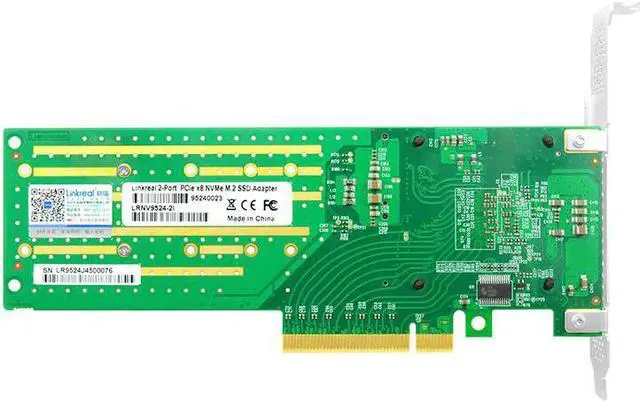

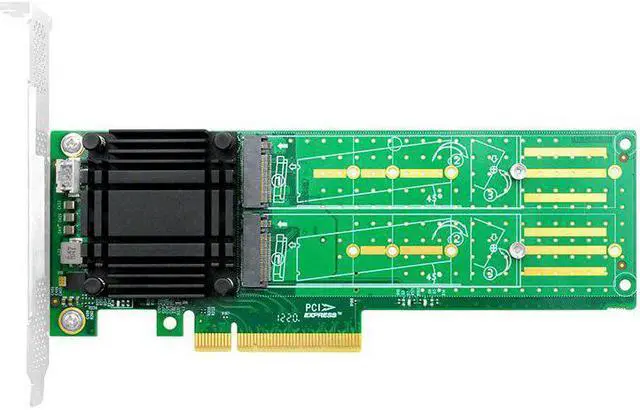

Dual PCIe x8 M.2 NVMe SSD Adapter Card

DescriptionLRNV9524-2I can connect PCIe 3.0 with M.2 M Key slot to M.2 NVMe SSD, it can rise the speed of ssd as well as expand two M.2 slots on the board. This expansion card makes full use of PCIe M.2 solid drives' performances and sizes to connect to your motherboards through extra-speed 8-lanes PCIe slots with M.2 PCIe NVMe SSD.

Functional CharacteristicsCompatible with PCIe3.0, PCIe2.0 and PCIe1.0

Using M.2 PCIe drives can extremely improve the speed of computers

Support PCIe 3.0 x8 NVMe(M key), including 2230, 2242, 2260, 2280 and 22110mm in length

Support common used NVMe ssd in size 110, 80, 60, 42 and 30mm

Full-height bracket and low-profile bracket are included in the package.

Supports PCIe NVME ports.

ParameterModel: LRNV9524-2I

I/O Controller: PLX PEX8724

Bus Type: PCI Express 3.0 x8

Interface: M.2 M Key Connector

Dimension: 180mm x 68mm

Weight: 108g

Humidity: 15% ~ 90%

Operating Temperature: 5°C to 50°C (41°F to 122°F)

Storage Temperature: -25°C to 70°C (-13°F to 158°F)

WHAT'S IN THE BOX

1 - PCIe x8 M.2 NVMe SSD Adapter Card

1 - high-profile bracket (installed)

1 - low-profile bracket

4 - screws&nuts for ssd

1 - Warranty Card
