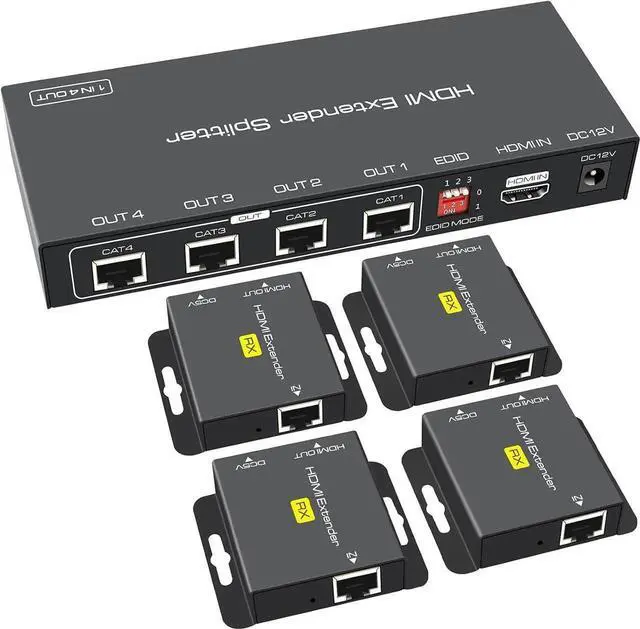

HDMI Extender Splitter Up to 165ft 1 in 4 Out Over Cat5e or 6 or 7 Repeater Balun Ethernet Sender Transmitter Receiver Support 1080p EDID Presets POC is Only Need TX Power for Work

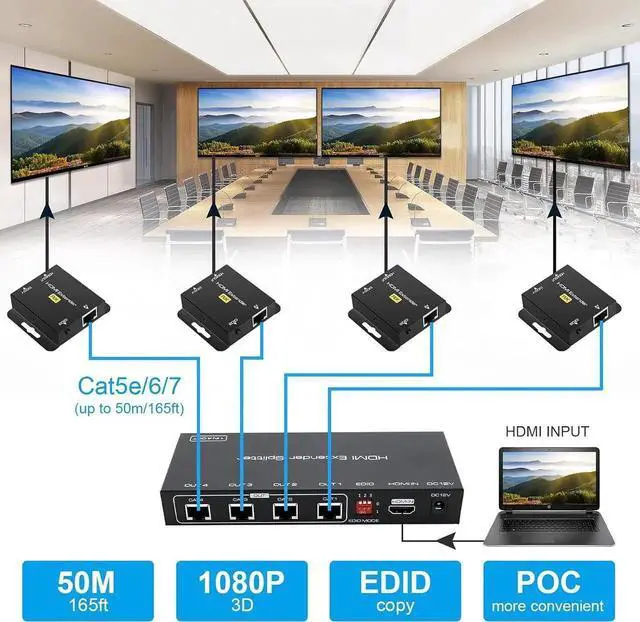

The HDMI Expander Splitter supports the distribution of one HDMI input source to four HDMI receiver devices, with the UTP output ports connected to the receivers via 165ft (50m) cat5e/6 cables.

Support EDID technology

Supports EDID modes to perfectly match different devices. Simply turn the dial switch to achieve the desired mode.

POC function

HDMI extenders utilize Power Over Channel (POC) technology. Simply connect the TX side for power and the RX side for work

Power Supply

We are equipped with a 12V power supply, safe and reliable, not easy to damage the equipment.

Easy Fixation

The HDMI over ethernet has mounting holes on both sides for easy installation and can be fixed on the wall or anywhere else you want.

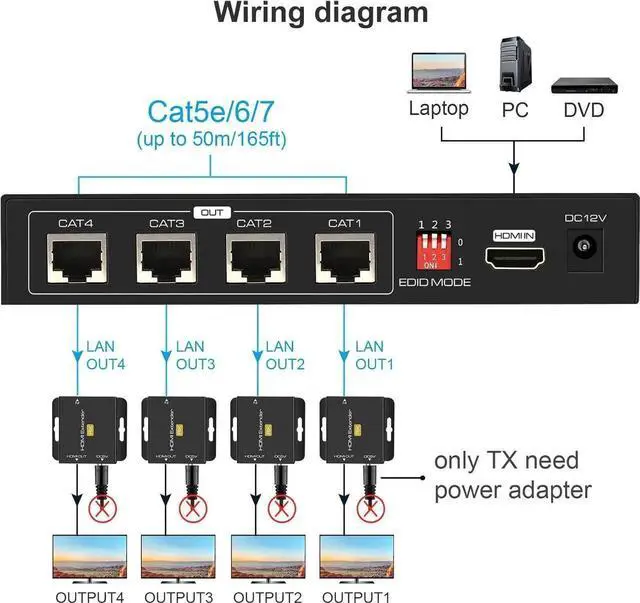

HDMI Extender splitter over CAT6 The HDMI extender splitter can split One HDMI signal into four identical Signals and run up to 165ft through the CAT6 cable, ideal as a remote audio/video extender

Power on CAT6 Using POC technology, we only need to use the power supply at TX, and Rx can work through the network cable transmission power supply. Low to 5V voltage transmission, safe

and reliable. (Notes: 12V power must be connected to TX, otherwise the device will be damaged. )

EDID Preset According to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, which can better match the signal source and display to get the most suitable video and audio signal

No compression Transmission Support resolution up to 1920x1200@60Hz and 1080p@60Hz.

Support audio format: PCM/DTS/ DSD.

Suggested length: Cat6/7-165 ft, Cat5e-130 ft, Cat5-100 ft
