    HDMI Extender Splitter Up to 165ft 1 in 4 Out Over Cat5e or 6 or 7 Repeater Balun Ethernet Sender Transmitter Receiver Support 1080p EDID Presets POC is Only Need TX Power for Work

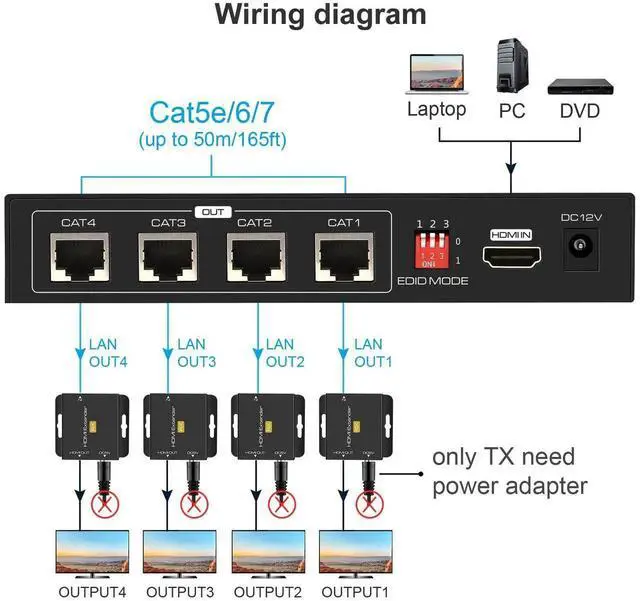

    • HDMI Extender splitter over CAT6 The HDMI extender splitter can split One HDMI signal into four identical Signals and run up to 165ft through the CAT6 cable, ideal as a remote audio/video extender
    • Power on CAT6 Using POC technology, we only need to use the power supply at TX , and Rx can work through the network cable transmission power supply. Low to 5V voltage transmission, safe and reliable.(Notes:12V power must be connected to TX, otherwise the device will be damaged.)

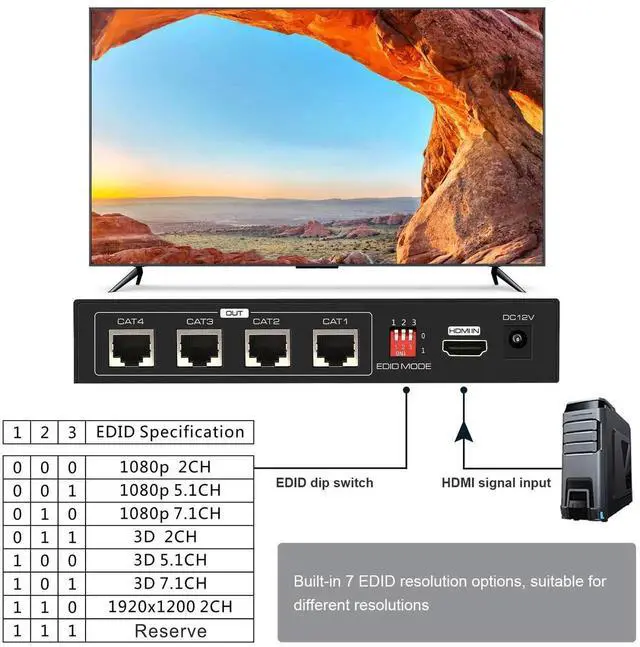

    • EDID Preset According to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, which can better match the signal source and display to get the most suitable video and audio signal
    • No compression Transmission Support resolution up to 1920x1200@60Hz and 1080p@60Hz. Support audio format: PCM/DTS/ DSD. Suggested length: Cat6/7-165 ft, Cat5e-130 ft, Cat5-100 ft
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Overview:

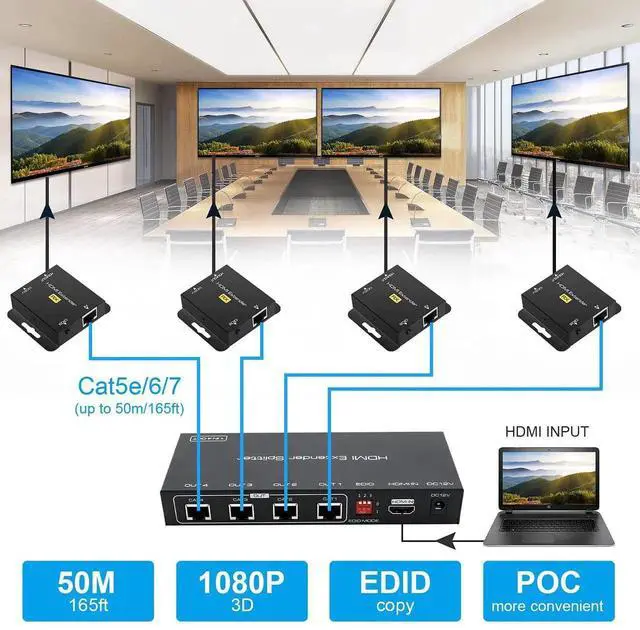

    HDMI extender splitter can support one HDMI input source distributed to four HDMI sink devices, and UTP output ports connect via the 50M cat5e/6 cable with the receivers.


    Resolution reach up to 1080P,3D


    Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC


    Digital audio format, as DTS-HD/LPCM7.1/DTS/DSD


    Support signal retiming


    Lossless transmission


    Easy to install.


    DV 12V power adapter


    Supported POC(Receiver power from Transmitter)

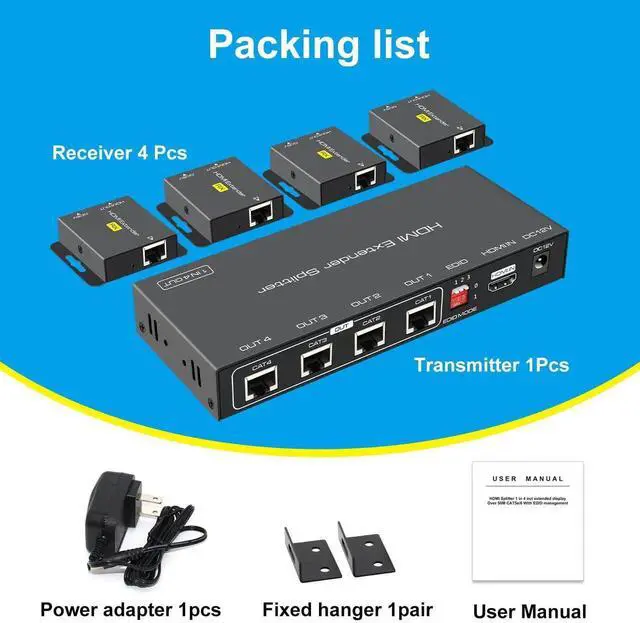

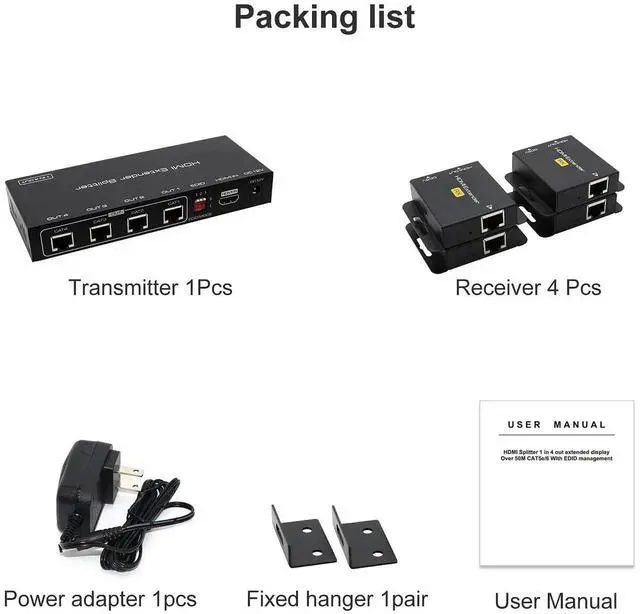

    Packing list:


    1. DC12V Power Adaptor X1pcs


    2. User manual X1pcs


    3. 4-Port HDMI Splitter with Receiver X1set


    4. Fixed hanger X1pair



    Additional Features
    1. Auto EQ Chip built-in automatic algorithm, no need to manually adjust the receiver equalization settings to compatibility with cable transmission distance. It can make the PC, DVD player, PS4, PS5, TV box etc more stable. Can be widely used in education, digital signage, churches, classrooms, meeting rooms, projects, games, video conference, metro, multimedia home theater etc
