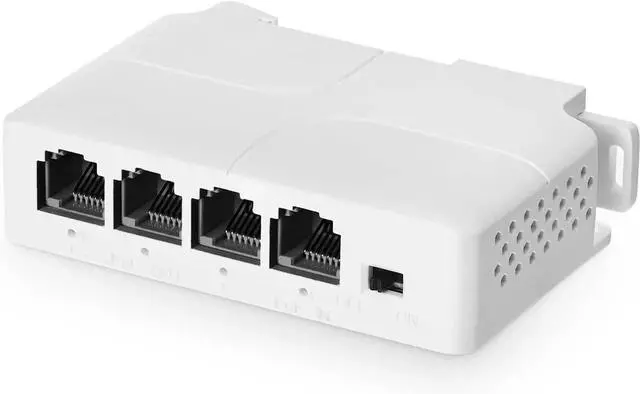

PoE Passthrough Switch, 1 PoE in 3 PoE Out Extender, IEEE802.3af/at PoE Powered, 100Mbps Ethernet, din-Rail & Wall Mount

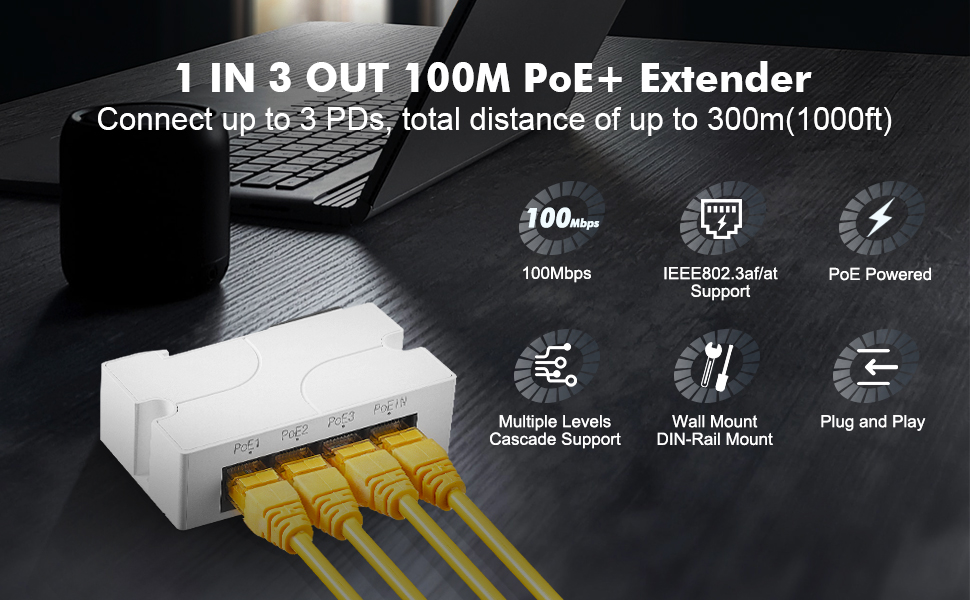

PoE+ extender provides 1 × 10/100Mbps PoE in port and 3 × 10/100Mbps PoE out ports for remote PoE/PoE+ device installation. The PoE extender auto-detects a PoE (15.4W) or PoE+ (30W) devices. The PoE extender features a convenient wall mountable and DIN mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 300m (1000 ft.).

Features

Support active PoE cascade power supply and Ethernet data exchange.

Support IEEE 802.3af/at standard power supply.

Cooperate with High PoE Midspan, able to cascade level 2 PoE Extender (total power consumption <=25W), max transmission distance 300m.

1* RJ45 10/100M PoE power supply input.

3* RJ45 10/100M PoE power supply output for PoE devices.

Installation mode: Wall mountable, DIN rail mountable.

PoE Powered

The PoE extender is powered by PSE. No power needed. Extends a single PoE/PoE+ network connection up to 100m (328 ft.) for a remote PoE or PoE+ device installation.

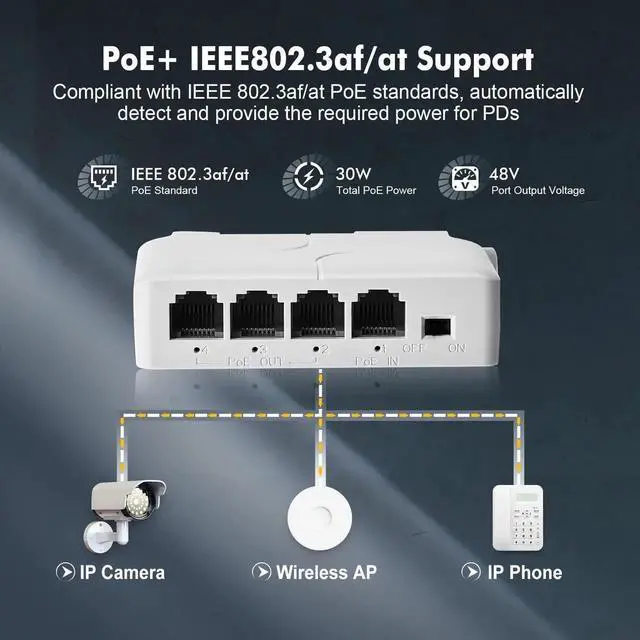

IEEE802.3af/at Support

1 in 3 out PoE extender compatible with IEEE802.3af/at standard, It determines and delivers the exact power supply to your devices with up to 30W power output.

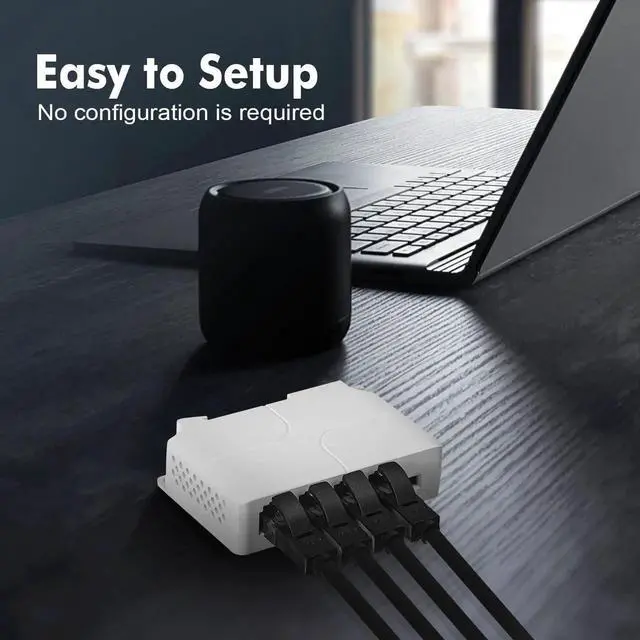

Easy to Use

Plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device.

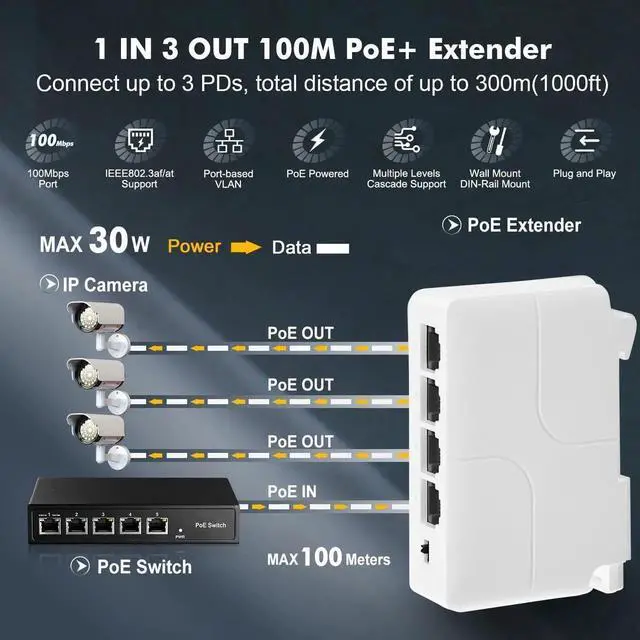

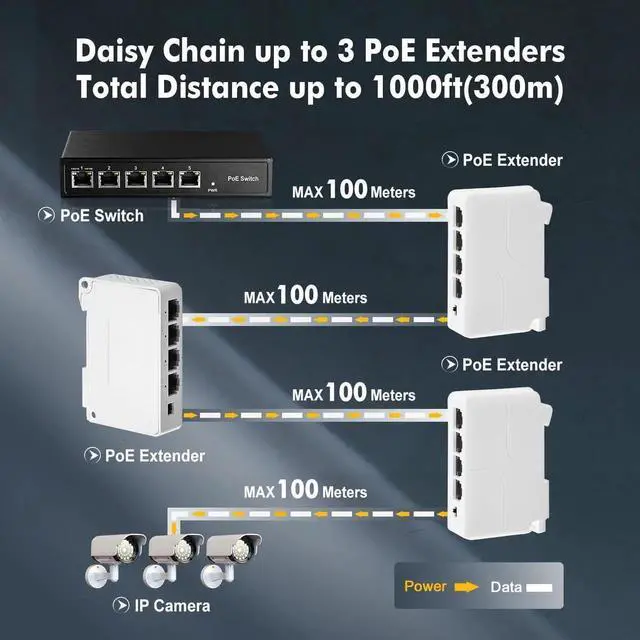

Daisy-Chain up to 3 PoE extenders

The PoE extender is powered by PoE Switch/PoE NVR/PoE Injector that comply with IEEE 802.3af/at Standards. It extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device.

Daisy chain up to 3 PoE extenders for a total PoE+ network extension of 300m (1000 ft.).

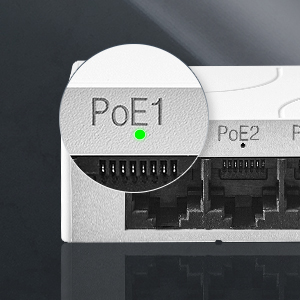

LED Indicator

You can quickly check working status and troubleshoot ports with led indicator on each port. Green(work well), Off(no power).

Compact Size

Compact dimension (82mm * 52mm * 23mm), This design makes these sensors interesting for room critical applications.

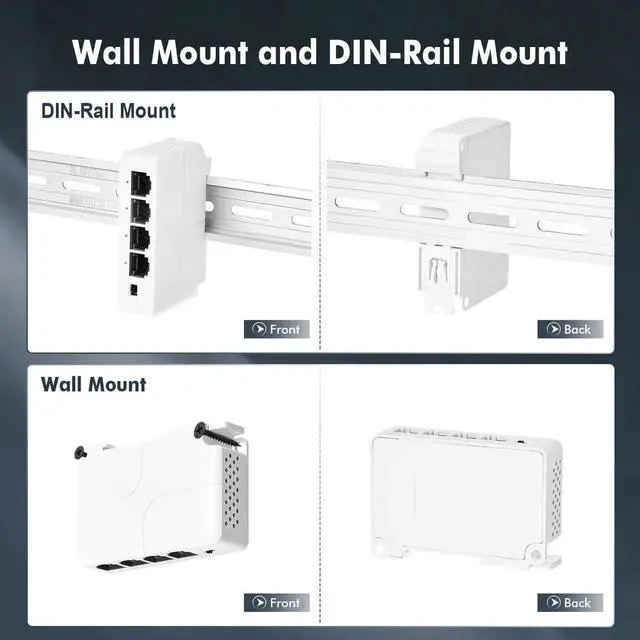

Wall & Din-rail Mountable

Ultra Compact PoE repeater can be mounted on a 35mm din rail and wall. perfect solution for a variety of environments.

PoE PassthroughInclude 1 PoE In 3 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required

IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.

PoE pin:

Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);

Output: 1/2 (+), 3/6 (-)

Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*

Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions

Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
