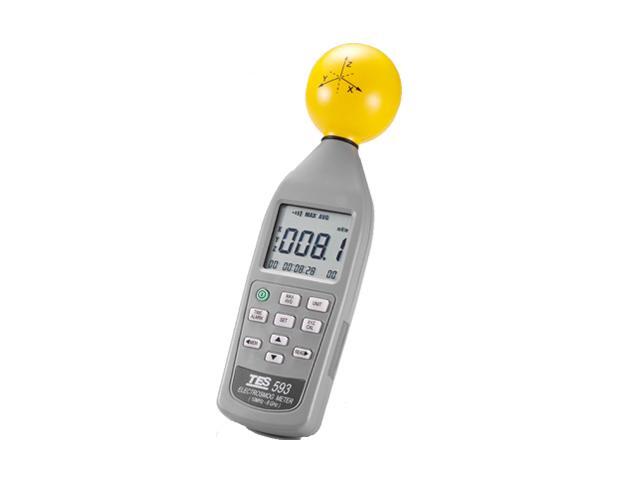

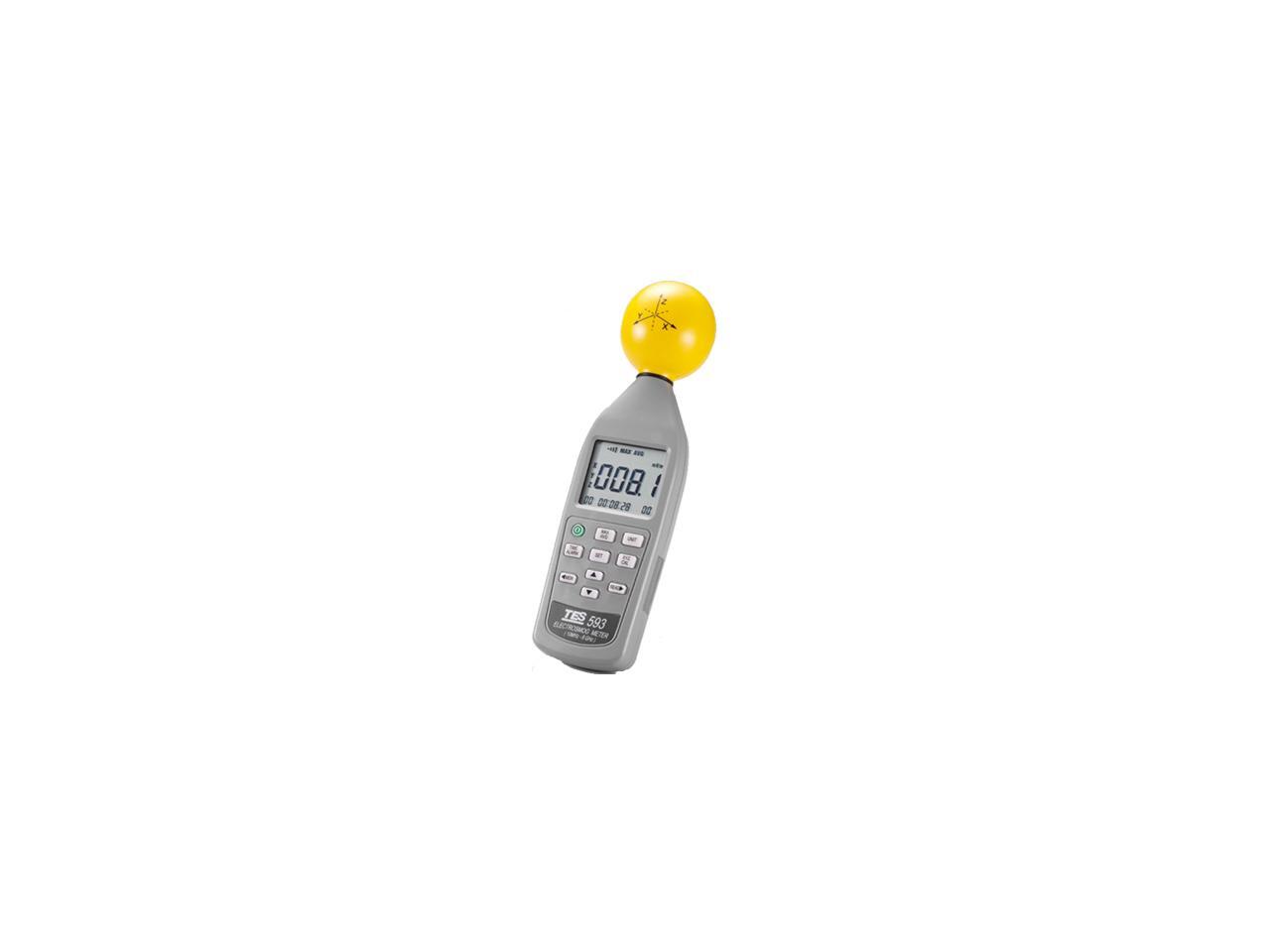

TES-593 3 Axis Electro Smog Meter (10MHz to 8.0GHz) EMF Meter TES593

In stock.
Ships from China.
Features: •Frequency range 10MHz to 8.0GH z •3 axis isotropic measurements of EMF •Non-directional (isotropic) measurement with three-channel measurement probe •High dynamic range •Configurable alarm threshold and memory function •Easy & safety to use
Applications: High frequency (RF) electromagnetic wave field strength measurement Mobile phone base station antenna radiation power density measurement Wireless communication applications (CW, TDMA, GSM, DECT) RF power measurement for transmitters Wireless LAN (Wi-Fi) detection, installation Spy camera, wireless bug finder Cellular/Cordless phone radiation safety level Microwave oven leakage detection Personal living environment EMF safety
Specifications: Electronic
Specifications: Sensor
type: Electric field (E)
Frequency range: 10MHz to 8GHz
Directional characteristic: Isotropic, 3-dimensional
Measurement range: (CW signal>10MHz) 20mV/m to 108.0V /m 53mA/m to 286.4 mA/m 1µW/m2 to 30.93W /m2 0µW/cm2 to 3.093 mW/cm2
Absolute error(@1V/m and 10MHz): ± 1.0 dB Frequency response(taking into account typ.
CAL factor): ± 1.0 dB (10MHz to 1.9 GHz) ± 2.4 dB( 1.9GH z to 8GHz) Isotropy deviation
Type.: ± 1.0 dB? f>10
MHz Overload limit: 10.61 mW/cm2 (200 V/m) Temperature response(0 to 50? ): ± 0.5 dB
General Specifications: Measurement
method: Digital, triaxial measurement
Directional characteristic: Isotropic, triaxial
Measurement range selection: One continuous range
Display resolution: 0.1 mV/m, 0.1 µA/m, 0.1 µW/m2, 0.001 µW/cm2
Setting time: Typically 1s ( 0 to 90% of meas.
value) Display refresh rate: Typically 0.5S ec.
Display type: LCD 4 digit
Audible alarm: Buzzer
Measurement units: mV/m, V/m, µA/m, mA/m, µW/m2, mW/m2, µW/cm2
Measurement display value: Instantaneous measured value, maximum value, average value or maximum average value
Measurement alarm function: Adjustable threshold with ON/OFF Measurement calibration factor
CAL: Adjustable Manual data memory and read storage: 99 sets ( only recall by meter )
Battery: 9V
Battery life: >15 hours
Dimensions: Approx. 67 (W) x 60 (T) x 247 (L) mm
Weight: Approx.
260g (including battery) Accessory: 9V battery, carrying case, manual
