$1,386.99
Most customers receive within 5-7 days.
Meet Your Seller

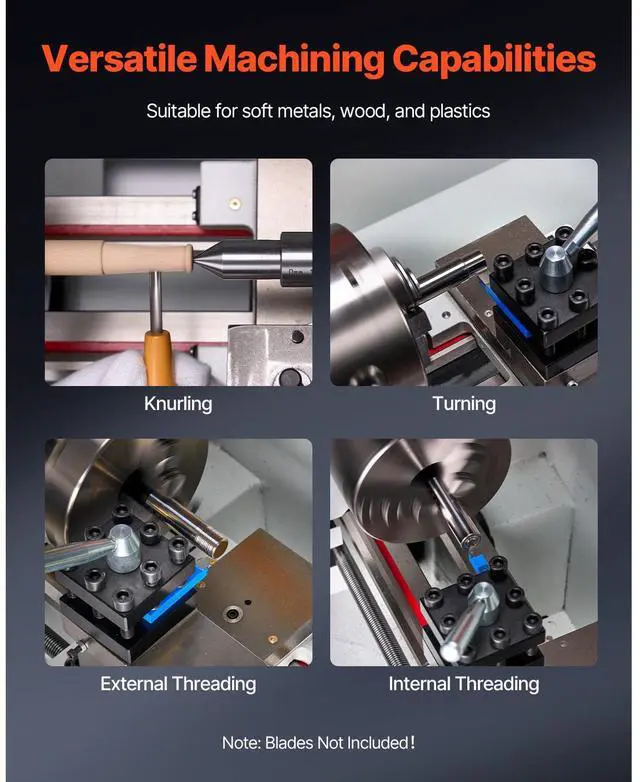

Metal Lathe Machine, 8.7 x 39 in, Precision Bench Power Metal Lathe, Automatic Feed, 0-2500 RPM Variable Speed, 1250W Brushless Motor, for Processing Precision Parts Soft Metals Wood Plastics

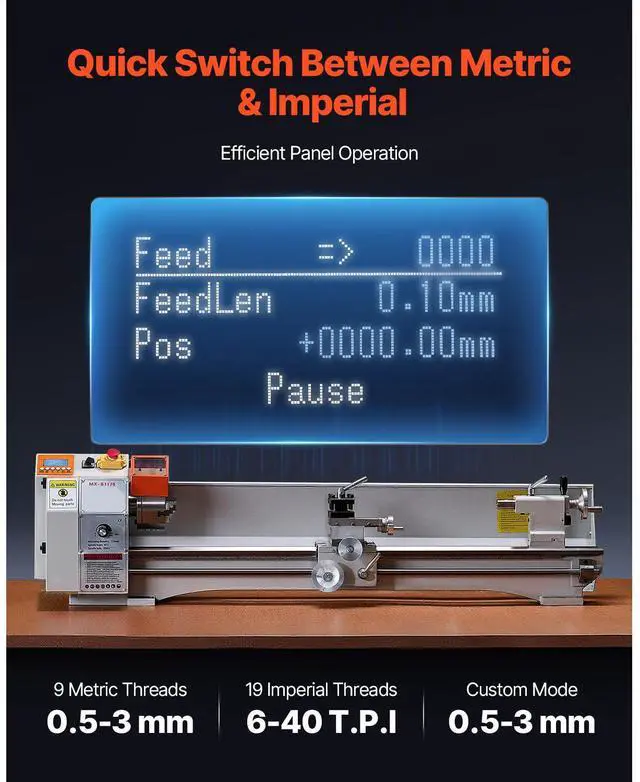

- Electronic Gear System: Seamlessly switch between metric and imperial threads without changing gears. Our benchtop metal lathe saves you time with simple panel controls. Supports 9 metric threads (0.5-3 mm), 19 imperial threads: 6-40 T.P.I., and custom mode: 0.5-3 mm

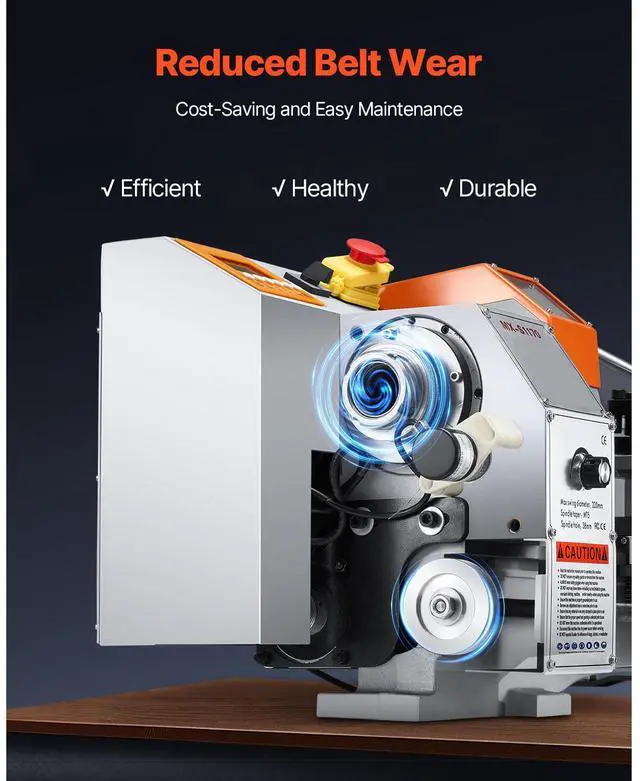

- Belt-Free Operation: With a belt-free spindle drive, there are no belt consumables, reducing costs and simplifying maintenance for a smoother, more efficient operation

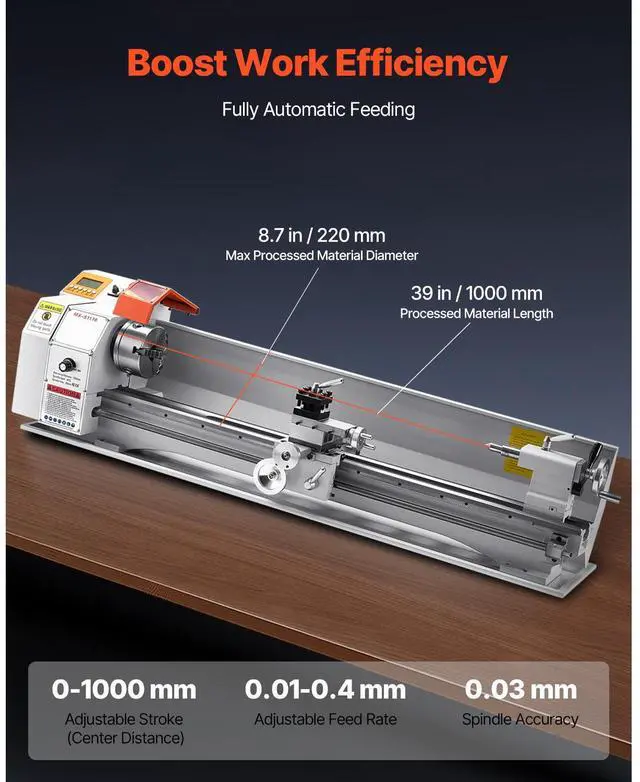

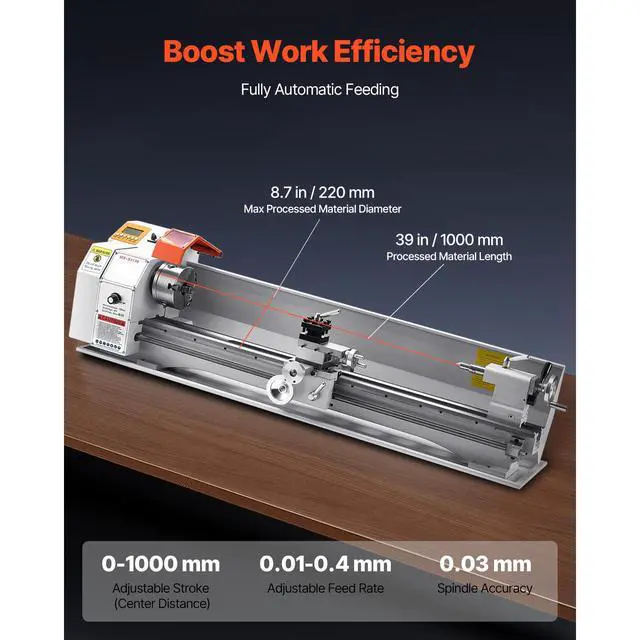

- Fully Automatic Feed: Adjust the stroke (center distance) from 0 to 1000 mm and feed rate from 0.01 to 0.40 mm via the panel. Our power metal lathe can fully automate threading. The 8.7 x 39 in worktable allows for processing materials with a maximum diameter of 220 mm and length of 1000 mm

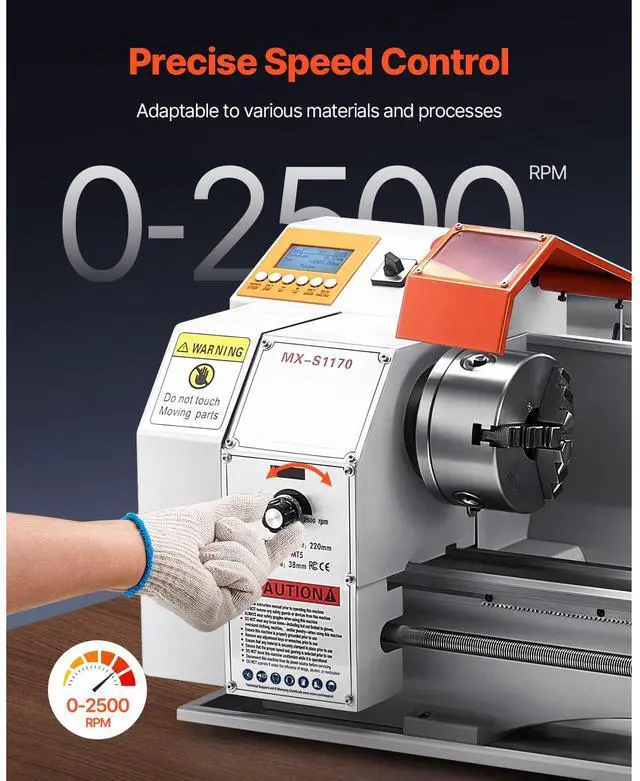

- High Precision Processing: Featuring max speed of 2500 RPM with variable speed control, our metal lathe machine allows for adjusting machining speed based on material and process for optimal accuracy
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: MX-S1170
Power: 1250W
Spindle Accuracy: 0.001 in / 0.03 mm
Speed: 2500 RPM
Max Processed Material Diameter: 8.7 in / 220 mm
Max Processed Material Length: 39 in / 1000 mm
Feed Rate: 0.0008 in / 0.02 mm
Max Aluminum Bar Turning Capacity: 50 mm Dia Aluminum Bar, 2 mm on one side
Main Material: Cast Iron + Aluminum Alloy
Net Weight: 193.12 lbs / 87.6 kg

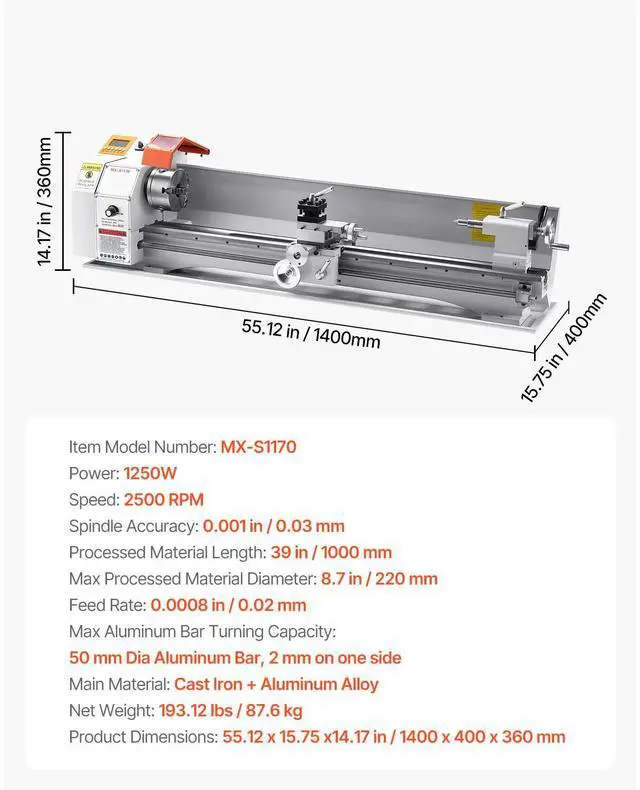

Product Dimensions: 55.12 x 15.75 x 14.17 in / 1400 x 400 x 360 mm

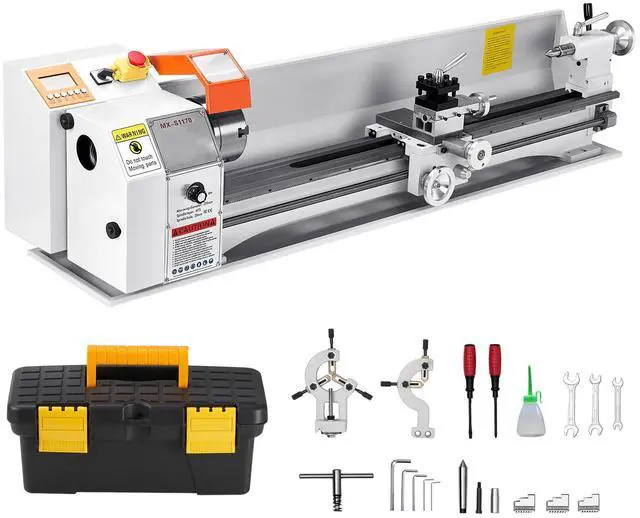

Package Content
1 x Metal Lathe
1 x Set of Accessories
