Advantage:
Multiple function of charger with 3 different mode: charge, discharge, error detect.
Compatible with 1/2/3/4 AA, AAA, C, D Ni-MH Ni-CD rechargeable batteries and 1/2 9V Ni-MH Ni-CD batteries.
Personality LCD display to show its charging progress for AA/AAA/C/D Ni-MH Ni-Cd batteries, and the LED display for 9V batteries.
Intelligent microprocessor controlled, built-in microcomputer chip will convert the charging mode from fast charging to trickle charging when batteries are nearly full charged (actually not) which ensure the batteries are fully charged.
High quality ensured with double protection: negative delta V (-? V) cut-off function (except for 9V batteries), with safety timer control for overcharge protection, with short circuit protection, with non-rechargeable/bad cell detection.
Features:
Compatible AA/AAA/C/D/9VNi-MH/Ni-Cd rechargeable battery
It has both AC and DC plug, smart LCD shows the charging status of each battery (LED for 9V).
Both recharge and discharge the batteries by switch the blue button below the LCD screen.
Specification of charger:
Input: AC 100-240V AC 50/60Hz, 10W DC 12V 800mA
Output:
AA/AAA/C/D: 1.2V DCx4 1000mA
9V: DCx2 30mA
No Load Power Consumption: 0.5W MAX
Full Load power consumption: 10W MAX
Size: 195 x 93 x 53 mm
Weight: 320g
Charging Time Table:
It was calculated with 1 battery when charging. Detailed charging time varies due to temperature and working environment.
Battery Type (Ni-MH) Capacity Charging time (approx. )
AAA 500-1200mAh 1 - 3 hours
AA 1300-2800mAh 1 - 3 hours
C 1800-5000mAh 1 - 5 hours
D 1800-10000mAh 1 - 8 hours
9V 150-600mAh 5-20 hours

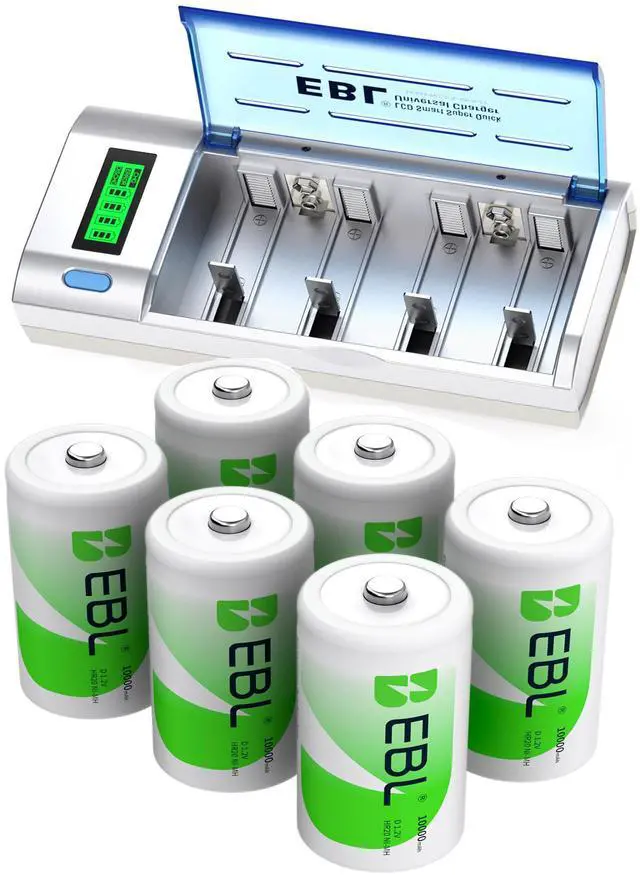

Package include:
1x EBL Battery Charger
3x 2 in 1 EBL Rechargeable D Batteries
1x AC Adapter
